MTC Air Conditioner - Commercial Service Tools

MTC-16
PREPARATION
Revision: January 2005 2004 Quest

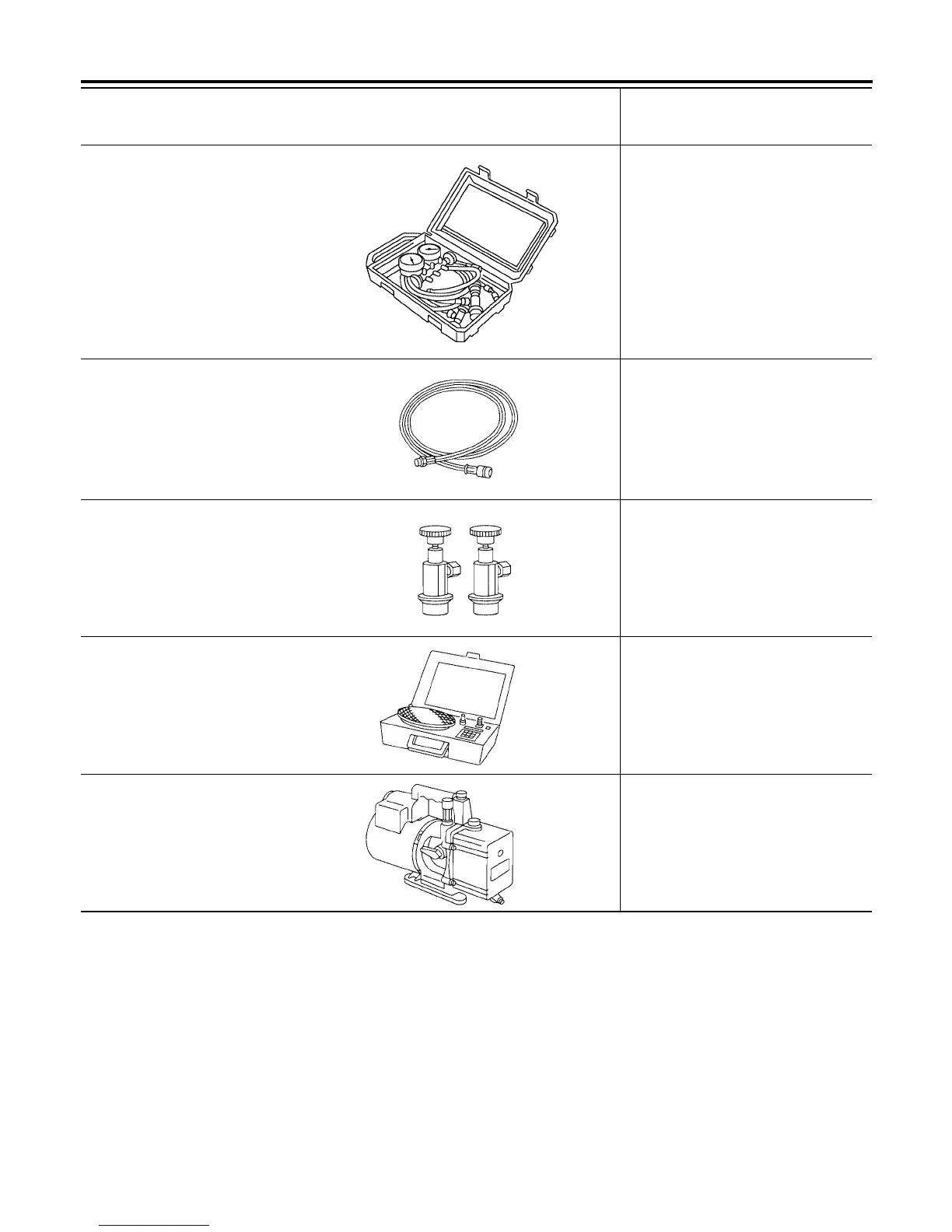

Commercial Service Tools EJS001RW
—
(J-39183-C)
Manifold gauge set (with hoses
and couplers)
Identification:
● The gauge face indicates R-134a.
Fitting size: Thread size
● 1/2"-16 ACME
Service hoses:
● (J-39500-72B)
High side hose
● (J-39500-72R)
Low side hose
● (J-39500-72Y)
Utility hose
Hose colors:
● Low side hose: Blue with black stripe
● High side hose: Red with black stripe
● Utility hose: Yellow with black stripe
or green with black stripe
Hose fitting to gauge:
● 1/2"-16 ACME
Service couplers:
● (J-39500-20A)
High side coupler
● (J-39500-24A)
Low side coupler
Hose fitting to service hose:
● M14 x 1.5 fitting is optional or perma-
nently attached.
—
(J-39699)
Refrigerant weight scale
For measuring of refrigerant
Fitting size - thread size:
● 1/2" - 16 ACME
—
(J-39649)
Vacuum pump
(Including the isolator valve)
Capacity:
● Air displacement: 4 CFM
● Micron rating: 20 microns
● Oil capacity: 482 g (17 oz)
Fitting size: Thread size
● 1/2"-16 ACME
Tool number
(Kent-Moore No.)
Tool name
Description
RJIA0196E
S-NT201
S-NT202
S-NT200
S-NT203
