MTC Air Conditioner - Removal and Installation for Compressor; Removal; Installation

MTC-148
REFRIGERANT LINES
Revision: January 2005 2004 Quest
Removal and Installation for Compressor EJS001TI

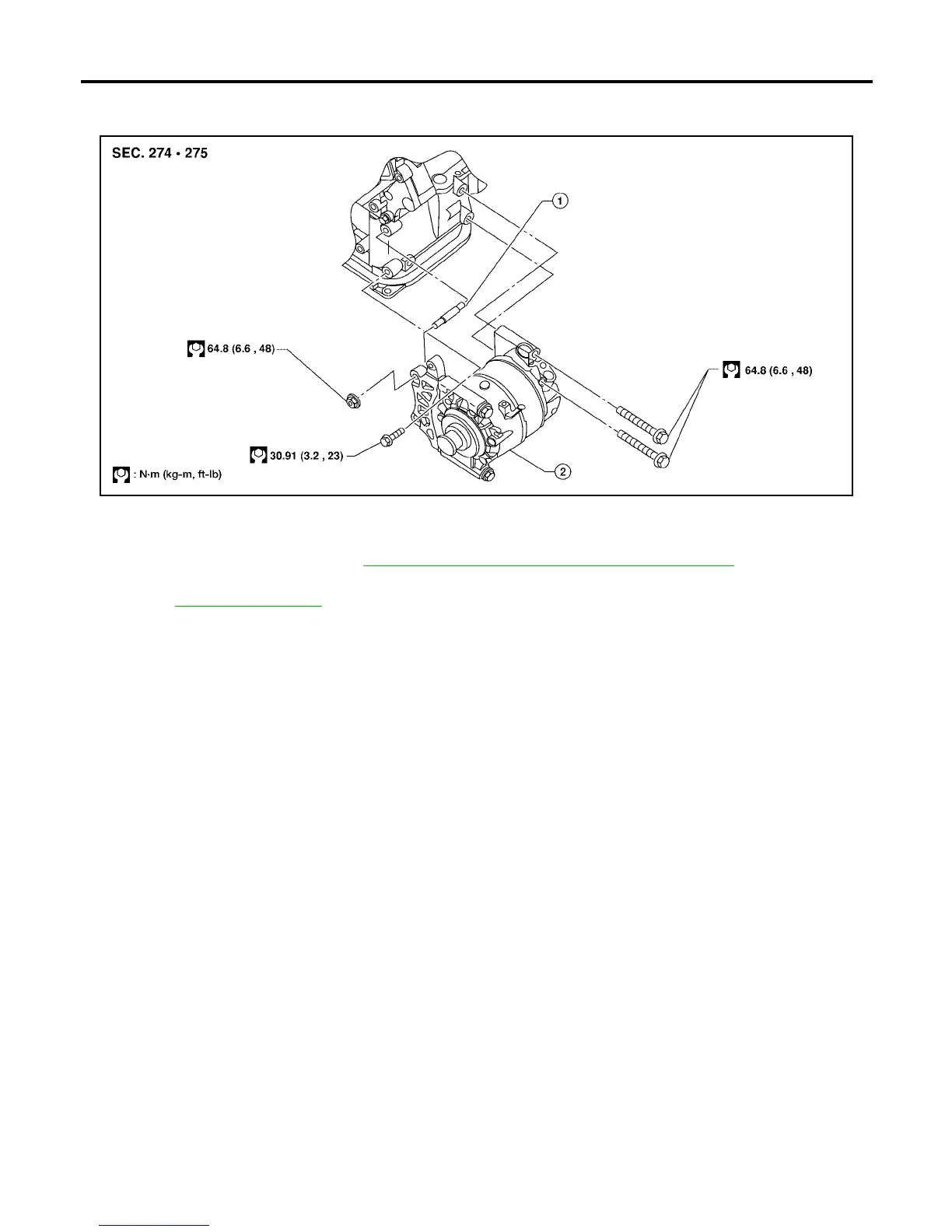

Compressor Mounting
REMOVAL
1. Discharge the refrigerant. Refer to MTC-144, "HFC-134a (R-134a) Service Procedure" .
2. Remove the drive belt.
Refer to MA-12, "
Drive Belts" .
3. Remove the coolant pipe bracket bolt.
4. Remove the compressor mounting stud.
5. Disconnect the compressor connector.
6. Disconnect the high-pressure flexible hose and low-pressure flexible hose from the compressor.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
7. Remove the compressor bolts and nut using power tools.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
● Replace the O-ring of the low-pressure flexible hose and high-pressure flexible hose with a new
one, then apply compressor oil to it when installing it.
● After charging refrigerant, check for leaks.
WJIA0371E
1. Stud 2. Compressor
