MTC-120

BLOWER MOTOR

Revision: January 2005 2004 Quest

REAR BLOWER MOTOR

Rear Blower Motor

Removal

1. Remove the rear lower finisher assembly RH. Refer to EI-32, "RIGHT SIDE AND REAR" .

2. Disconnect the blower motor electrical connector.

3. Remove the three screws and remove the blower motor.

Installation

Installation is in the reverse order of removal.

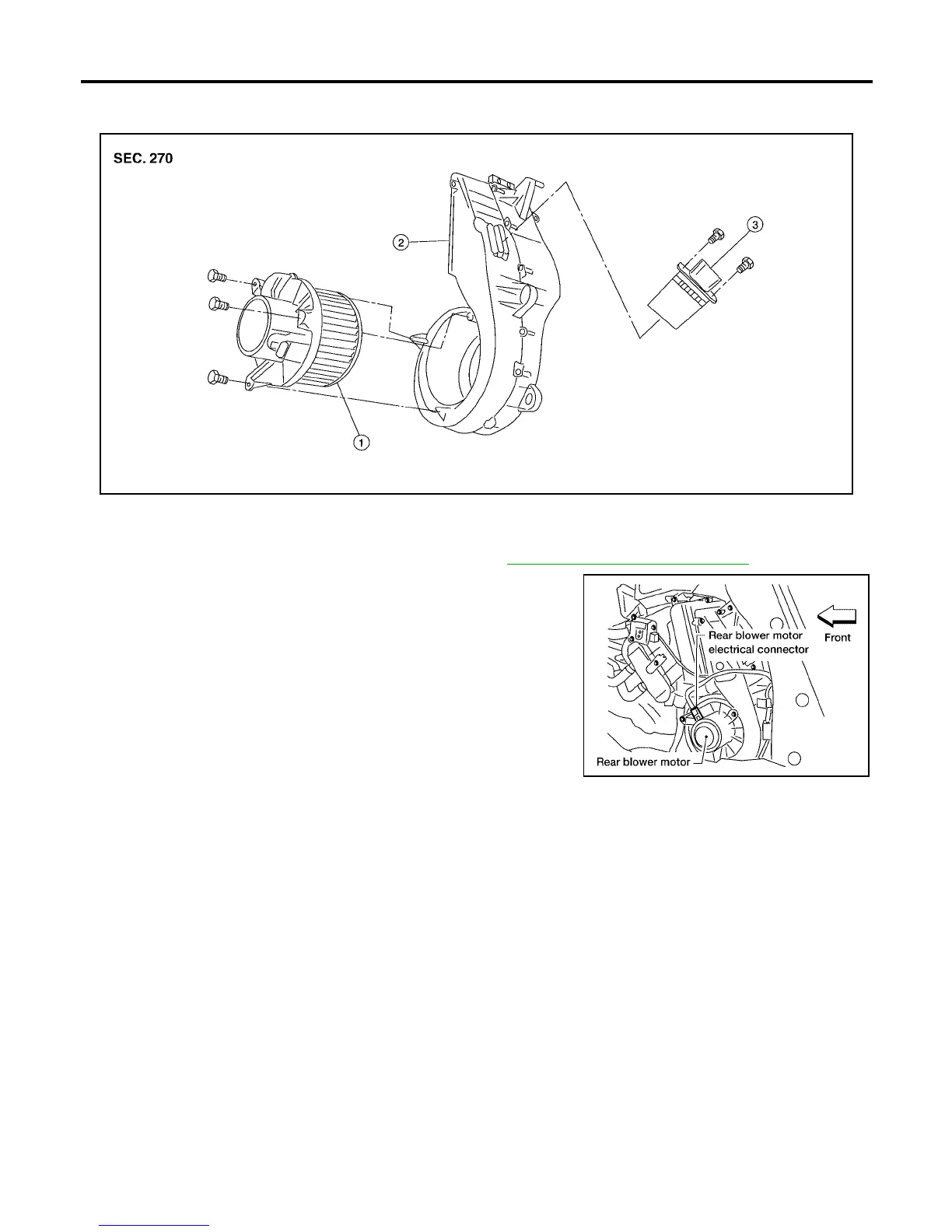

LJIA0055E

1. Rear blower motor 2. Rear blower motor case 3. Rear blower motor resistor

LJIA0056E
