MTC Air Conditioner - Removal and Installation for Compressor Clutch; Removal

REFRIGERANT LINES
MTC-149
C
D
E
F
G
H
I
K
L
M
A
B
MTC
Revision: January 2005 2004 Quest

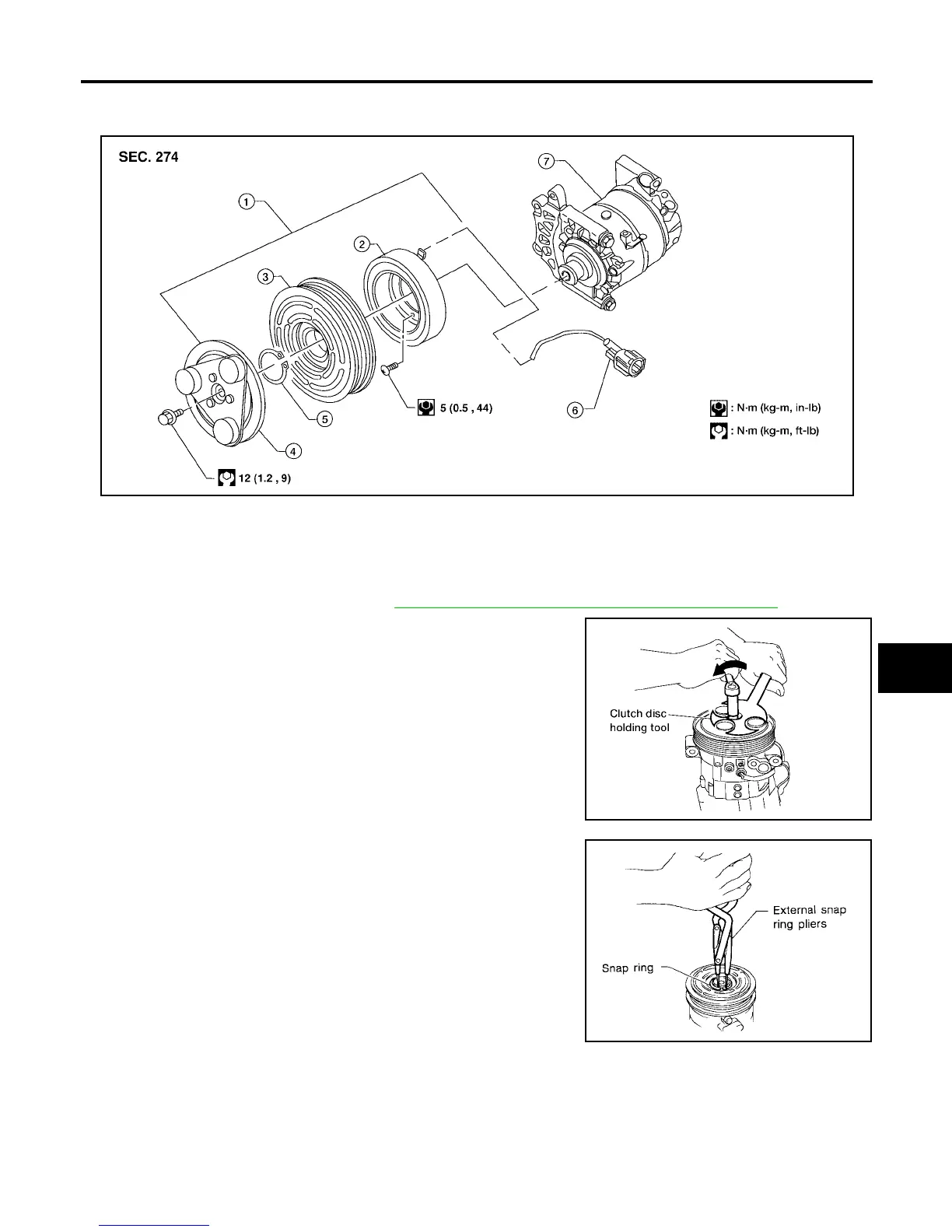

Removal and Installation for Compressor Clutch EJS001TJ
Magnet Clutch Assembly
REMOVAL
1. Remove the A/C compressor. Refer to MTC-148, "Removal and Installation for Compressor" .
2. Remove the center bolt while holding the clutch disc stationary
using Tool as shown.
3. Remove the clutch disc.
4. Remove the snap ring using external snap ring pliers or suitable
tool.
WJIA0372E
1. Magnet clutch assembly 2. Magnet coil 3. Pulley
4. Clutch disc 5. Snap ring 6. Thermal protector (built in)
7. Compressor
Tool number : J-44614
WHA228
RHA072C
