MTC-52
TROUBLE DIAGNOSIS
Revision: January 2005 2004 Quest

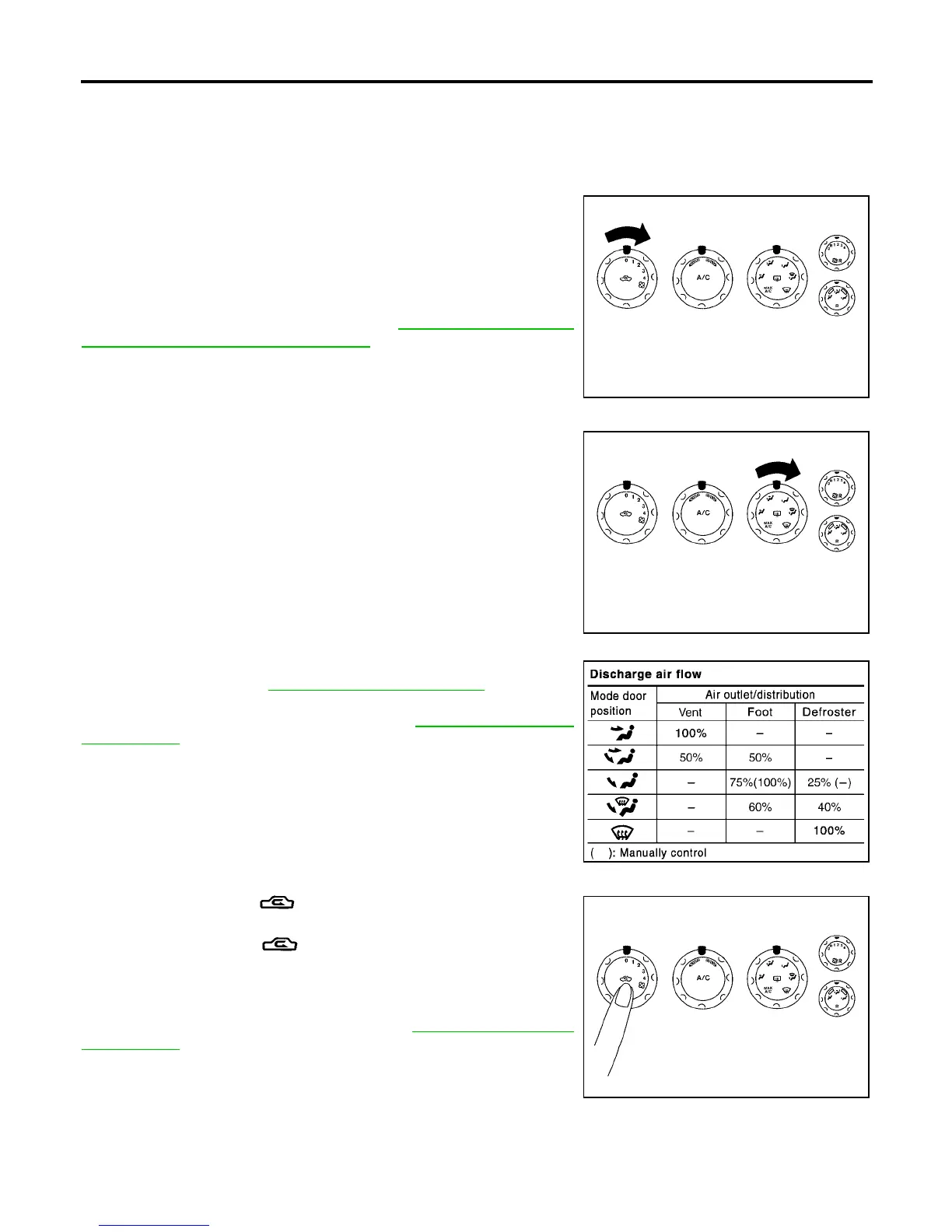

Operational Check EJS001SG
The purpose of the operational check is to confirm that the system operates properly.
CHECKING BLOWER
1. Turn blower control dial clockwise. Blower should operate on
low speed. The fan symbol should have one blade lit (on dis-
play).
2. Turn the blower control dial again, and continue checking blower
speed and fan symbol until all speeds are checked.
3. Leave blower on maximum speed.
If NG, go to trouble diagnosis procedure for MTC-74, "
DIAGNOSTIC
PROCEDURE FOR BLOWER MOTOR"
If OK, continue with next check.
CHECKING DISCHARGE AIR
1. Turn the mode switch.
2. Each position indicator should change shape (on display).
3. Confirm that discharge air comes out according to the air distri-
bution table. Refer to MTC-28, "
Discharge Air Flow" .
Mode door position is checked in the next step.
If NG, go to trouble diagnosis procedure for MTC-57, "
Mode Door
Motor Circuit" .
If OK, continue with next check.
NOTE:
Confirm that the compressor clutch is engaged (sound or visual
inspection) and intake door position is at fresh when the DEF or D/F
is selected.
CHECKING RECIRCULATION
1. Press recirculation ( ) switch one time. Recirculation indica-
tor should illuminate.
2. Press recirculation ( ) switch one more time. Recirculation
indicator should go off.
3. Listen for intake door position change (blower sound should
change slightly).
If NG, go to trouble diagnosis procedure for MTC-67, "
Intake Door
Motor Circuit" .
If OK, continue with next check.
NOTE:
Confirm that the compressor clutch is engaged (sound or visual
inspection) and intake door position is at fresh when the DEF or D/F is selected.
Conditions : Engine running and at normal operating temperature
WJIA0487E
WJIA0488E
WJIA0528E
WJIA0489E
To Next Page
