MTC Air Conditioner - PREPARATION; Special Service Tools; HFC-134 a (R-134 a) Service Tools and Equipment

MTC-14
PREPARATION
Revision: January 2005 2004 Quest

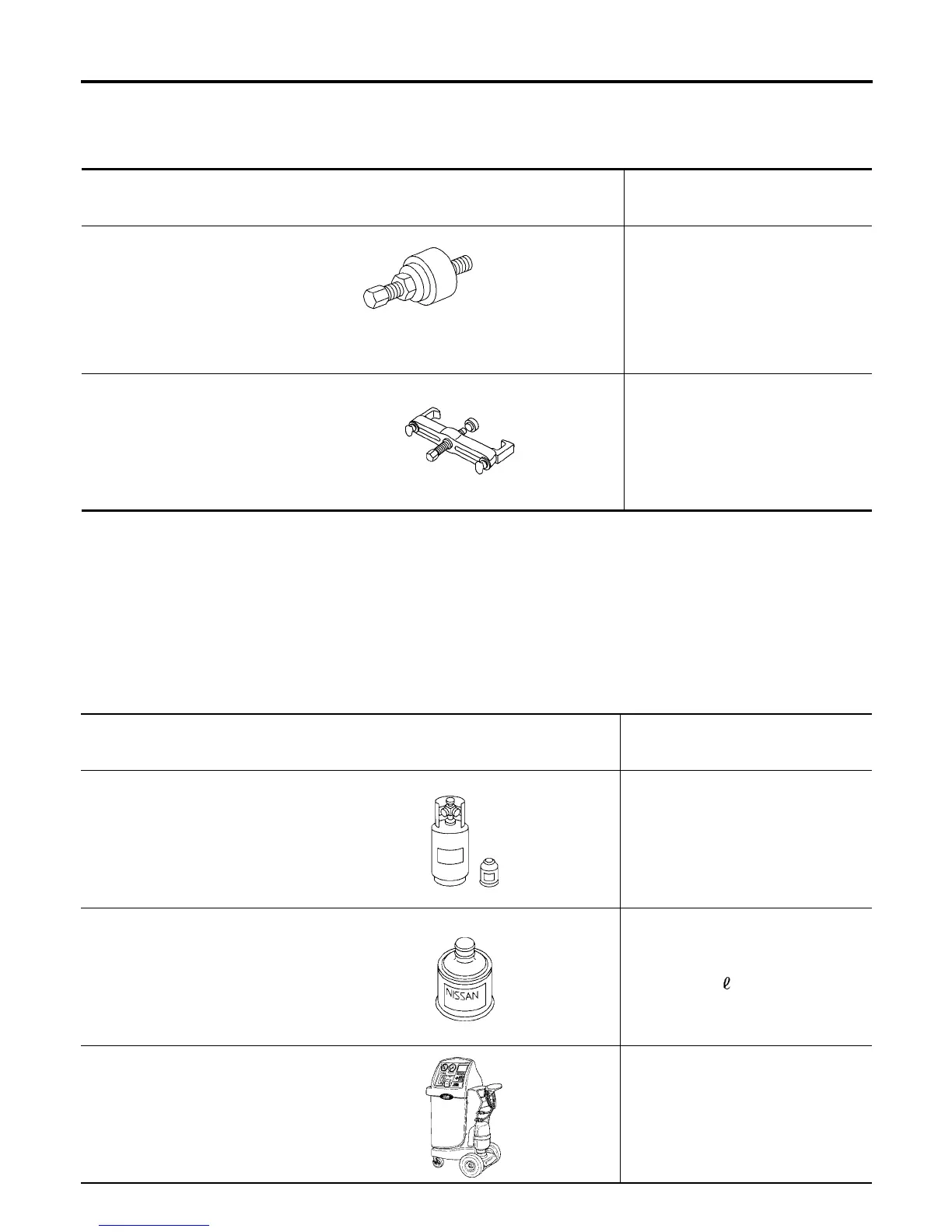

PREPARATION PFP:00002
Special Service Tools EJS001RU
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
HFC-134a (R-134a) Service Tools and Equipment EJS001RV
Never mix HFC-134a refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/or its lubri-
cant.
Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/lubri-
cant.
Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles
refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.
Adapters that convert one size fitting to another must never be used refrigerant/lubricant contamination will
occur and compressor failure will result.
Tool number
(Kent-Moore No.)
Tool name
Description
KV99234330
(J-38873A)
Pulley installer
Installing pulley
KV99233130
(J-29884)
Pulley puller
Removing pulley
LHA171
LHA172
Tool number
(Kent-Moore No.)
Tool name
Description
HFC-134a (R-134a)
(—)
Refrigerant
Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size
● large container 1/2"-16 ACME
KLH00-PAGS0
(—)
NISSAN A/C System Oil Type DH-
PS
Type: Poly alkylene glycol oil (PAG),
type DH-PS
Application: HFC-134a (R-134a) vane
rotary compressors (NISSAN only)
Lubricity: 40 m (1.4 US fl oz, 1.4 Imp
fl oz)
—
(ACR2005-NI)
ACR5 A/C Service Center
Refrigerant recovery and recycling and
recharging
S-NT196
S-NT197
WJIA0293E
