Removal and Installation for Rear Evaporator EJS001TR
Rear Heater and Cooling Unit Assembly
REMOVAL
1. Remove the rear heater and cooling unit assembly from the vehicle. Refer to MTC-124, "REAR HEATER
AND COOLING UNIT ASSEMBLY" .
2. Remove the rear blower motor.
3. Remove the rear blower motor resistor.

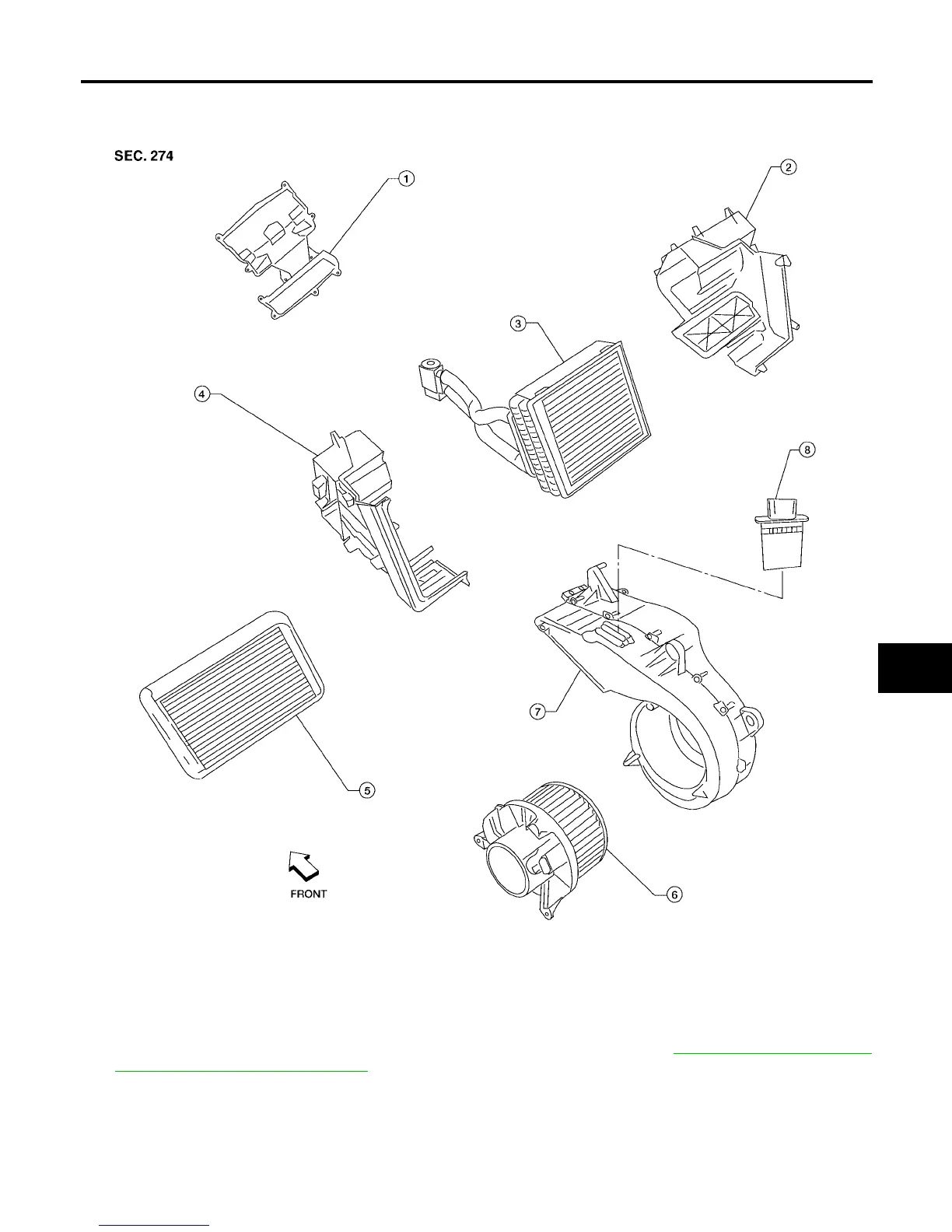

LJIA0020E
1. Front cover 2. Evaporator and heater core case 3. Evaporator
4. Side cover 5. Heater core 6. Rear blower motor
7. Blower motor case 8. Rear blower motor resistor
