MTC Air Conditioner - System Description; Component Description; Diagnostic Procedure for Intake Door Motor (Driver)

MTC-68
TROUBLE DIAGNOSIS
Revision: January 2005 2004 Quest
SYSTEM DESCRIPTION
Component Parts
Intake door control system components are:
● Front air control
● Intake door motor (driver and passenger)
System Operation
The intake door control determines the intake door (driver and passenger) positions based on the position of
the recirculation switch. When the recirculation switch is depressed the intake door motors rotate closing off
the fresh air inlet and recirculating the cabin air. If the recirculation switch is depressed again, the intake door
motors rotate in the opposite direction, again allowing fresh air into the cabin.

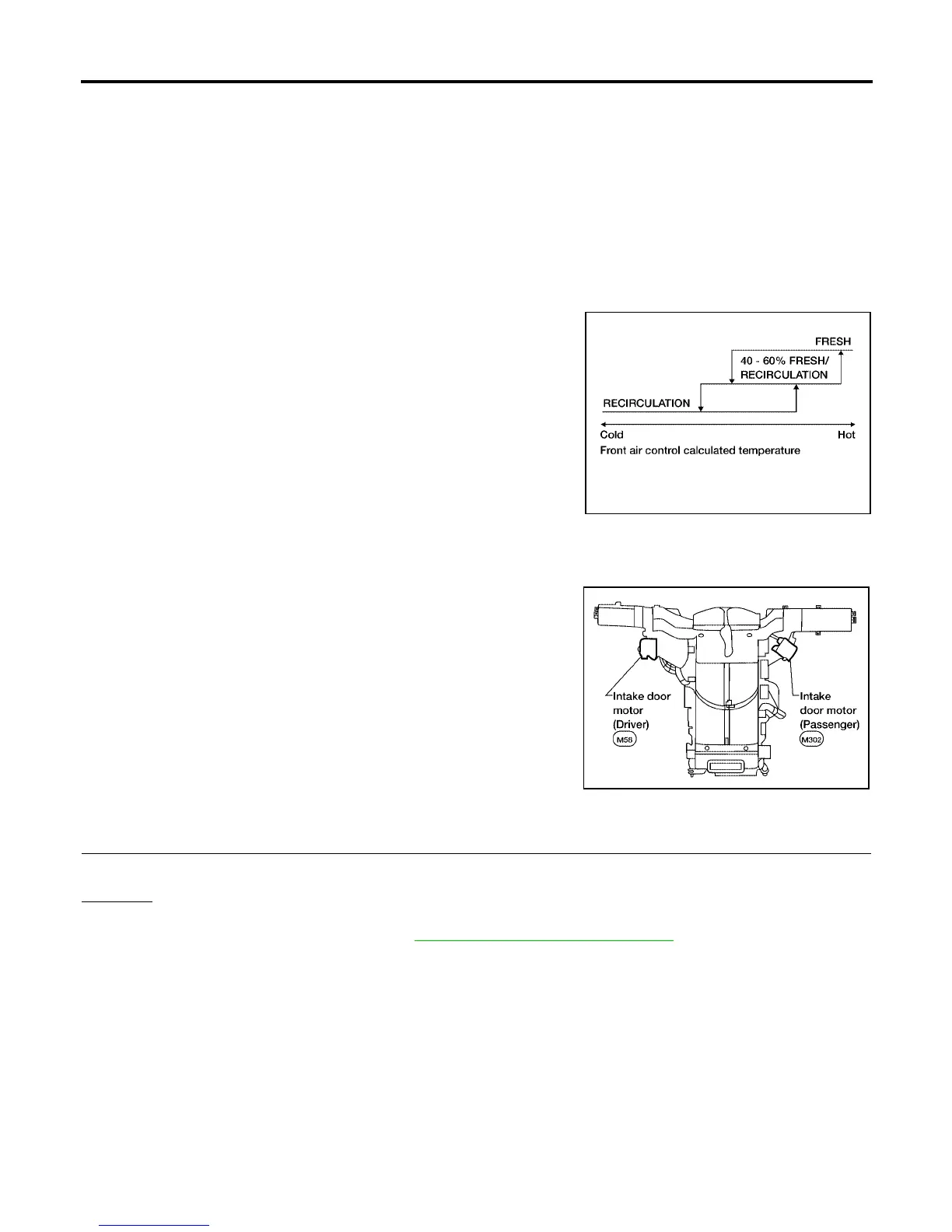

Intake Doors Control Specification
COMPONENT DESCRIPTION
Intake door motors
The driver and passenger intake door motors are attached to the
intake unit. They rotate so that air is drawn from inlets set by the front
air control. Motor rotation is conveyed to a lever which activates the
intake door.
DIAGNOSTIC PROCEDURE FOR INTAKE DOOR MOTOR (DRIVER)
1. CHECK RESULT FROM FRONT AIR CONTROL SELF-DIAGNOSIS
Self-diagnosis code 82 is present.
Yes or No
Yes >> GO TO 2.
No >> Replace front air control. Refer to MTC-116, "
FRONT AIR CONTROL" .
WJIA0436E
WJIA0433E
