FRONT BLOWER MOTOR RESISTOR
MTC-137
C
D
E
F
G
H
I
K
L
M
A
B
MTC
Revision: January 2005 2004 Quest
FRONT BLOWER MOTOR RESISTOR PFP:27077
Removal and Installation EJS001TD
Front Blower Motor Resistor
REMOVAL
1. Remove the instrument lower panel RH and glove box. Refer to IP-13, "Instrument Lower Panel RH and
Glove Box" .
2. Remove the center console trim panel. Refer to IP-10, "
Removal and Installation" .
3. Disconnect the front blower motor resistor electrical connector.
4. Remove the two screws and remove the front blower motor resistor.
INSTALLATION
Installation is in the reverse order of removal.
WJIA0513E

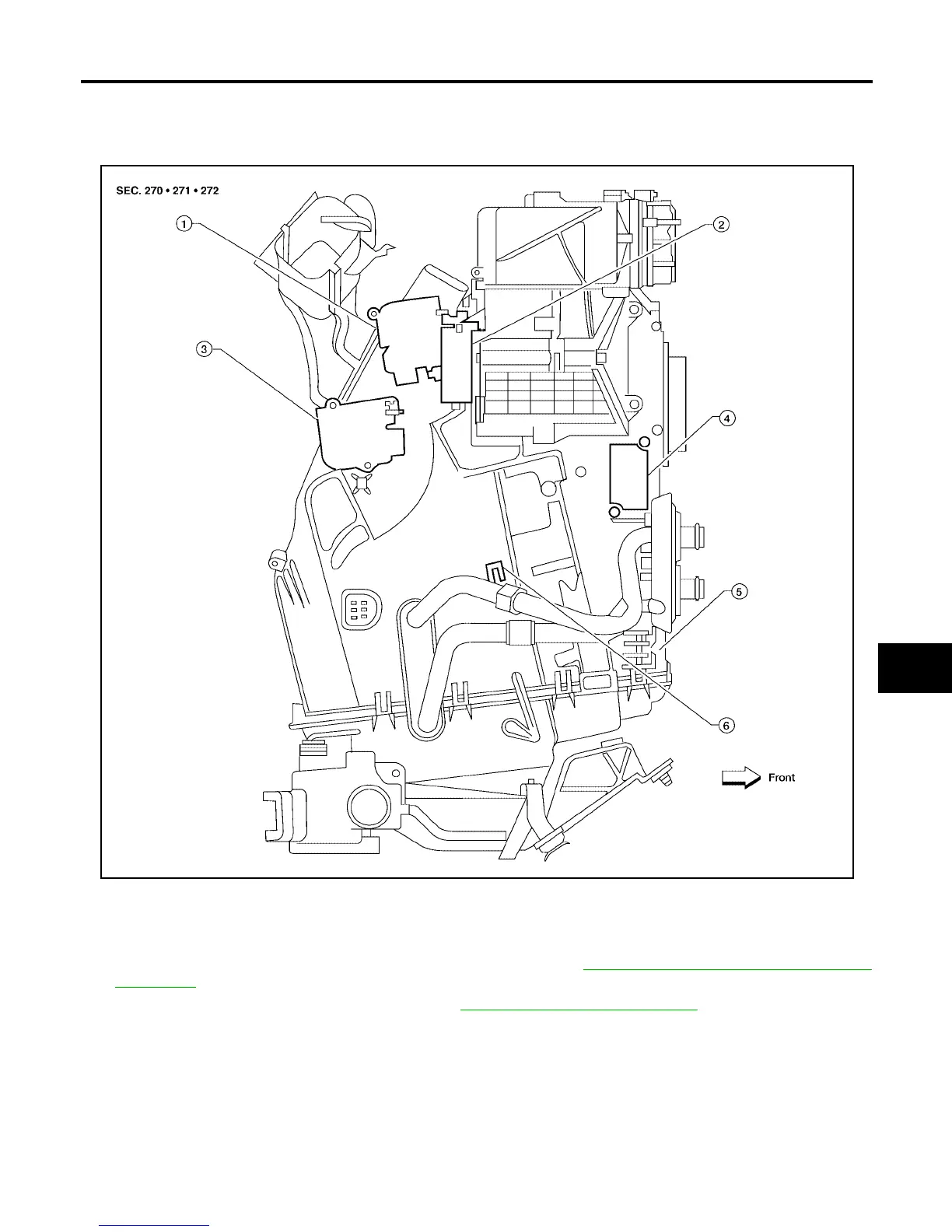

1. Defroster door motor 2. Intake door motor (passenger) 3. Mode door motor
4. Front blower motor resistor 5. Front heater and cooling unit assembly 6. Intake sensor
