MTC Air Conditioner - Noise; Inspection Flow

To Next Page

To Previous Page

TROUBLE DIAGNOSIS

MTC-109

MTC

Revision: January 2005 2004 Quest

Noise EJS001SS

SYMPTOM: Noise

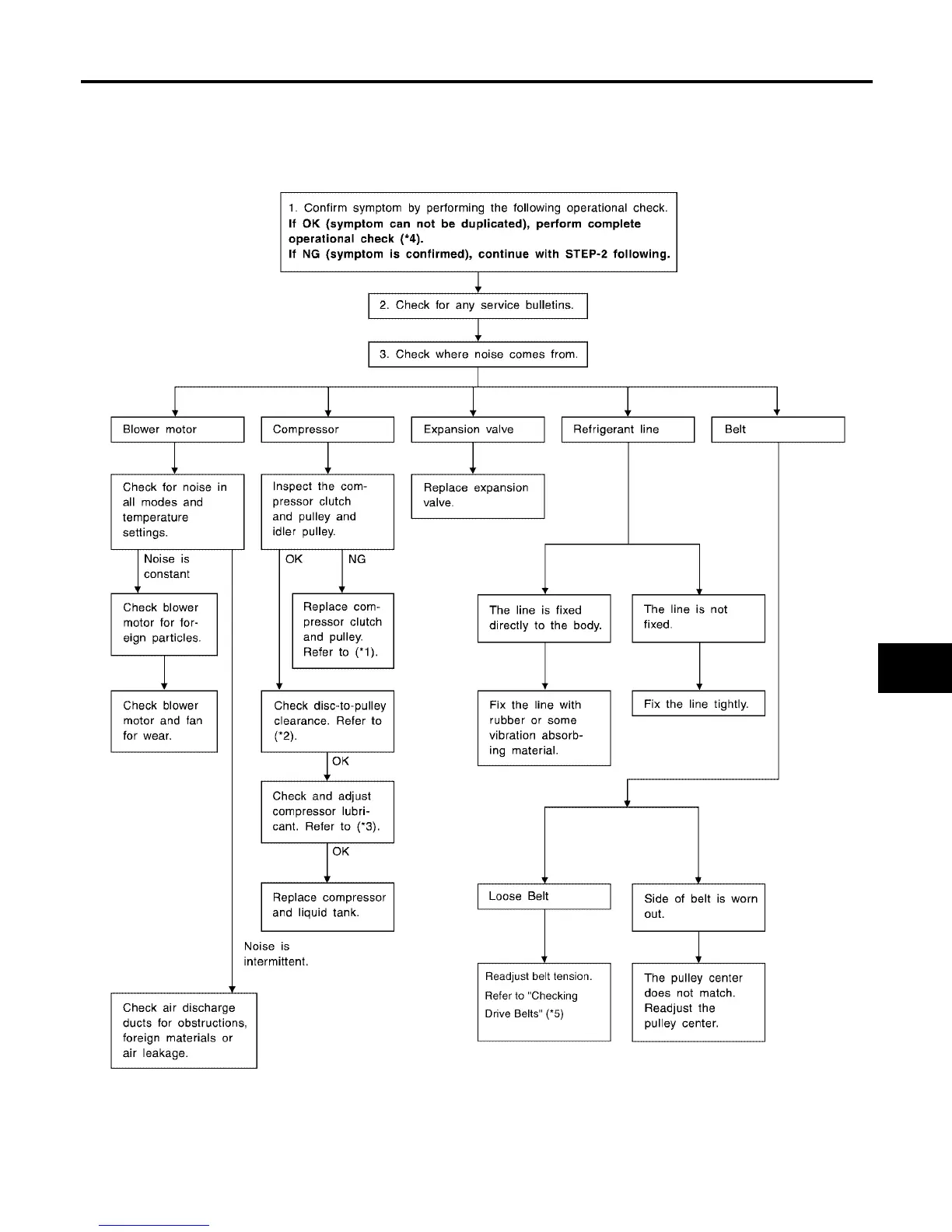

INSPECTION FLOW

WJIA0473E
