MTC Air Conditioner - Mode Door Motor Circuit

TROUBLE DIAGNOSIS
MTC-57
C
D
E
F
G
H
I
K
L
M
A
B
MTC
Revision: January 2005 2004 Quest
Mode Door Motor Circuit EJS001SI
SYMPTOM:
● Air outlet does not change.
● Mode door motor does not operate normally.

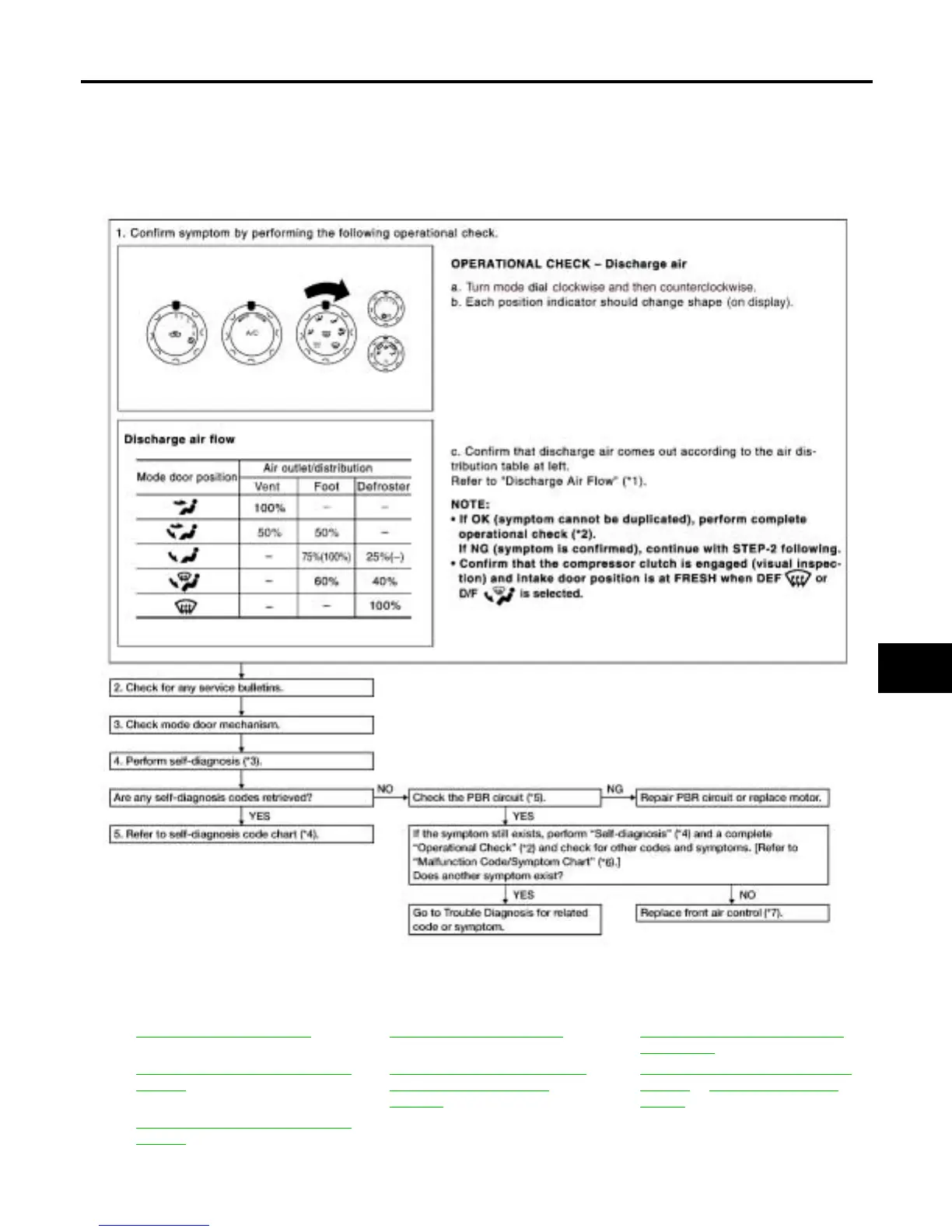

INSPECTION FLOW
*1 MTC-28, "Discharge Air Flow".*2MTC-52, "Operational Check".*3MTC-50, "A/C System Self-diagno-
sis Function".
*4 MTC-51, "SELF-DIAGNOSIS CODE
CHART".
*5 MTC-58, "
DIAGNOSTIC PROCE-
DURE FOR MODE DOOR
MOTOR"
*6 MTC-51, "SELF-DIAGNOSIS CODE
CHART" or MTC-33, "SYMPTOM
TABLE"
*7 MTC-51, "SELF-DIAGNOSIS CODE
CHART".
WJIA1611E
