MTC-138

REAR BLOWER MOTOR RESISTOR

Revision: January 2005 2004 Quest

REAR BLOWER MOTOR RESISTOR PFP:27150

Removal and Installation EJS001TE

Rear Blower Motor Resistor

REMOVAL

1. Remove the rear lower finisher assembly RH. Refer to EI-32, "RIGHT SIDE AND REAR" .

2. Disconnect the rear blower motor resistor electrical connector.

3. Remove the two screws and remove the rear blower motor resistor.

INSTALLATION

Installation is in the reverse order of removal.

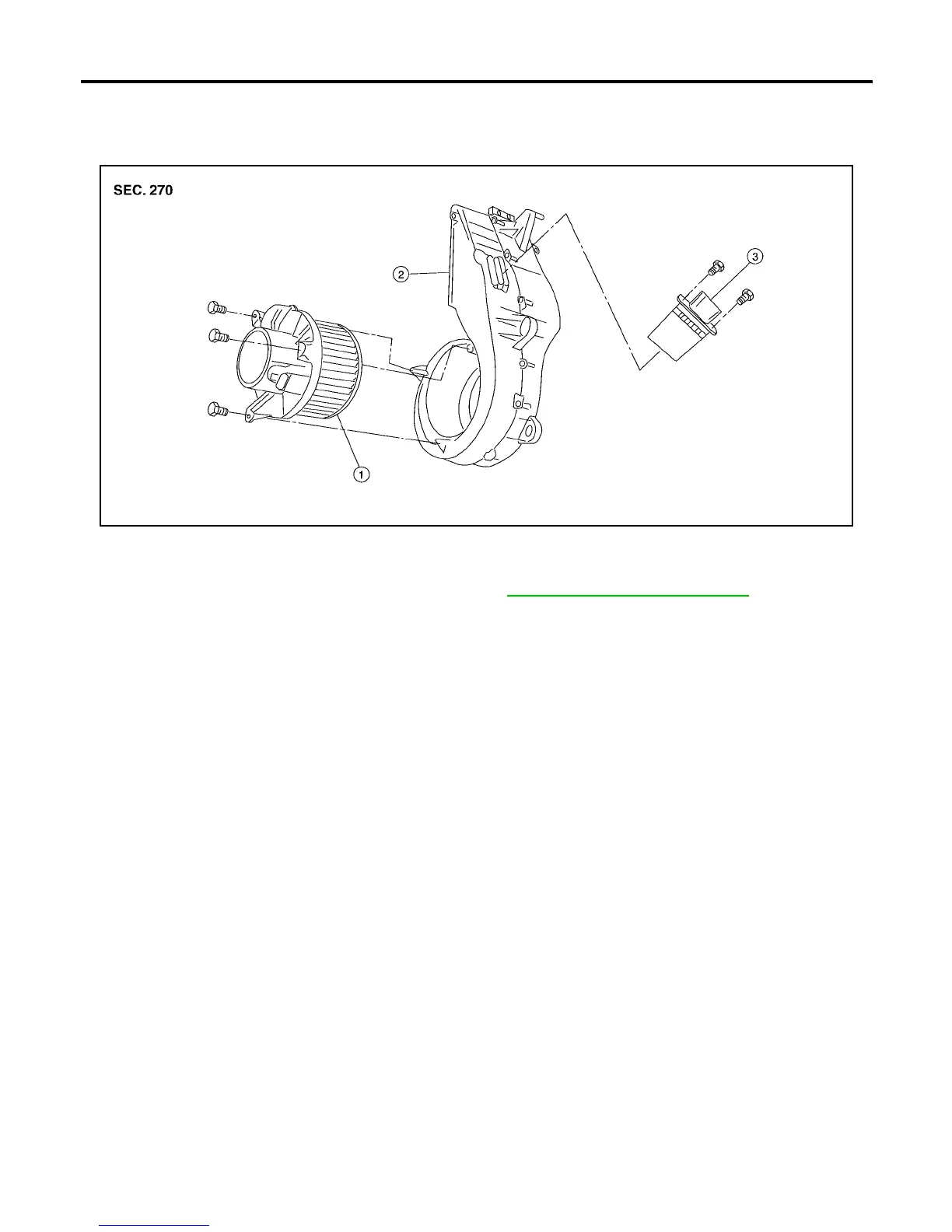

LJIA0055E

1. Rear blower motor 2. Rear blower motor case 3. Rear blower motor resistor
