MTC-154
REFRIGERANT LINES
Revision: January 2005 2004 Quest
Removal and Installation for Condenser EJS001TP
REMOVAL
1. Discharge the refrigerant. Refer to MTC-144, "HFC-134a (R-134a) Service Procedure" .
2. Remove the radiator. Refer to CO-11, "
RADIATOR" .
CAUTION:
Be careful not to damage the core surface of the condenser and the radiator.
3. Disconnect the high-pressure flexible hose and the high-pres-
sure pipe from the condenser.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.

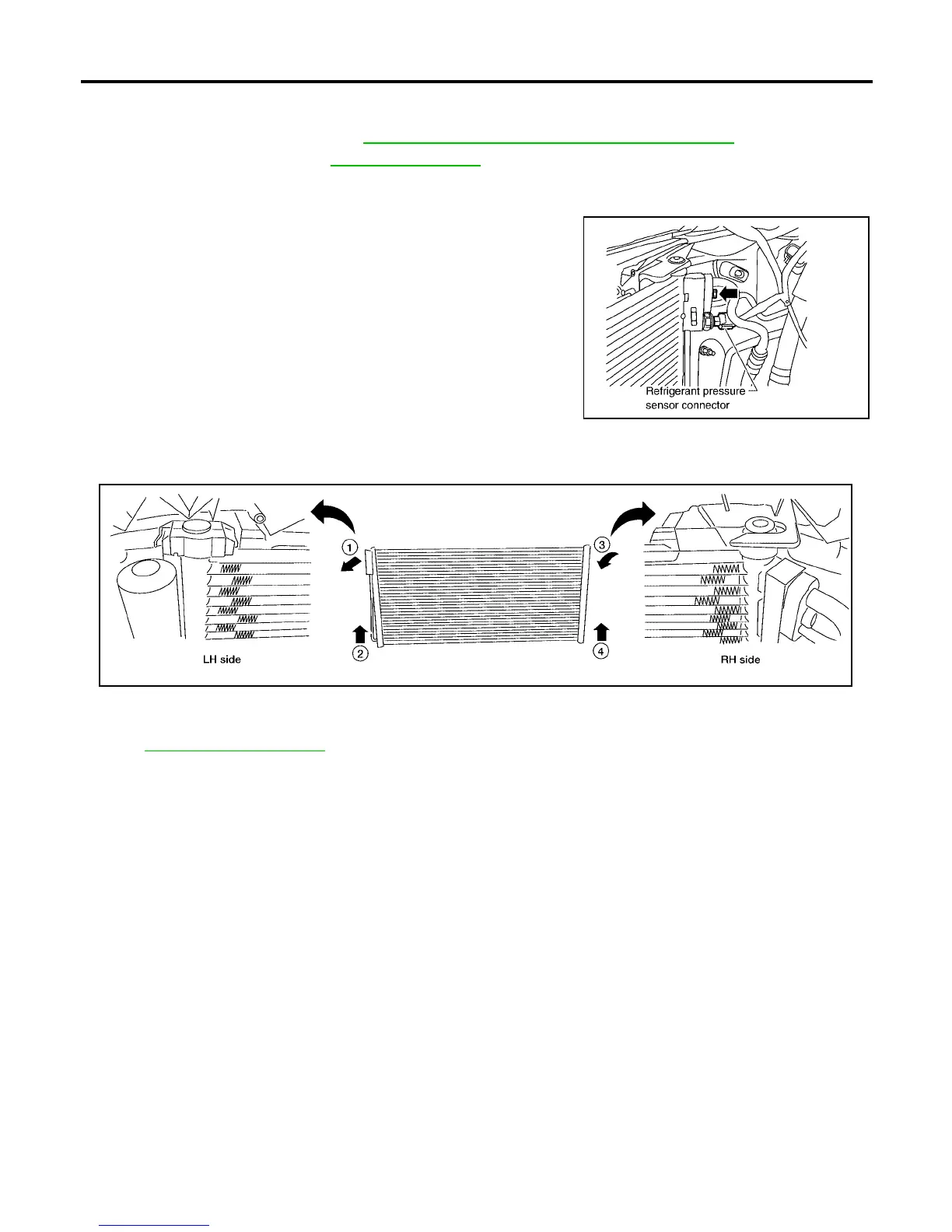

4. Disconnect the refrigerant pressure sensor connector.
5. Carefully release retaining clips located on top driver side of condenser and rotate the condenser out of its
mounts as shown.
INSTALLATION
Installation is in the reverse order of removal.
Refer to MTC-146, "
Components" .
CAUTION:
● Replace the O-rings of the high-pressure pipe and the high-pressure flexible hose with new ones,
then apply compressor oil to them after installing them.
● After charging refrigerant, check for leaks.
WJIA0124E
WJIA0373E
