MTC-156
REFRIGERANT LINES
Revision: January 2005 2004 Quest
6. Remove the two in-cabin microfilters.
7. Remove the evaporator.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
● Replace the O-rings on the low-pressure flexible hose and the high-pressure pipe with new ones.
Apply compressor oil to the O-rings before installing them.

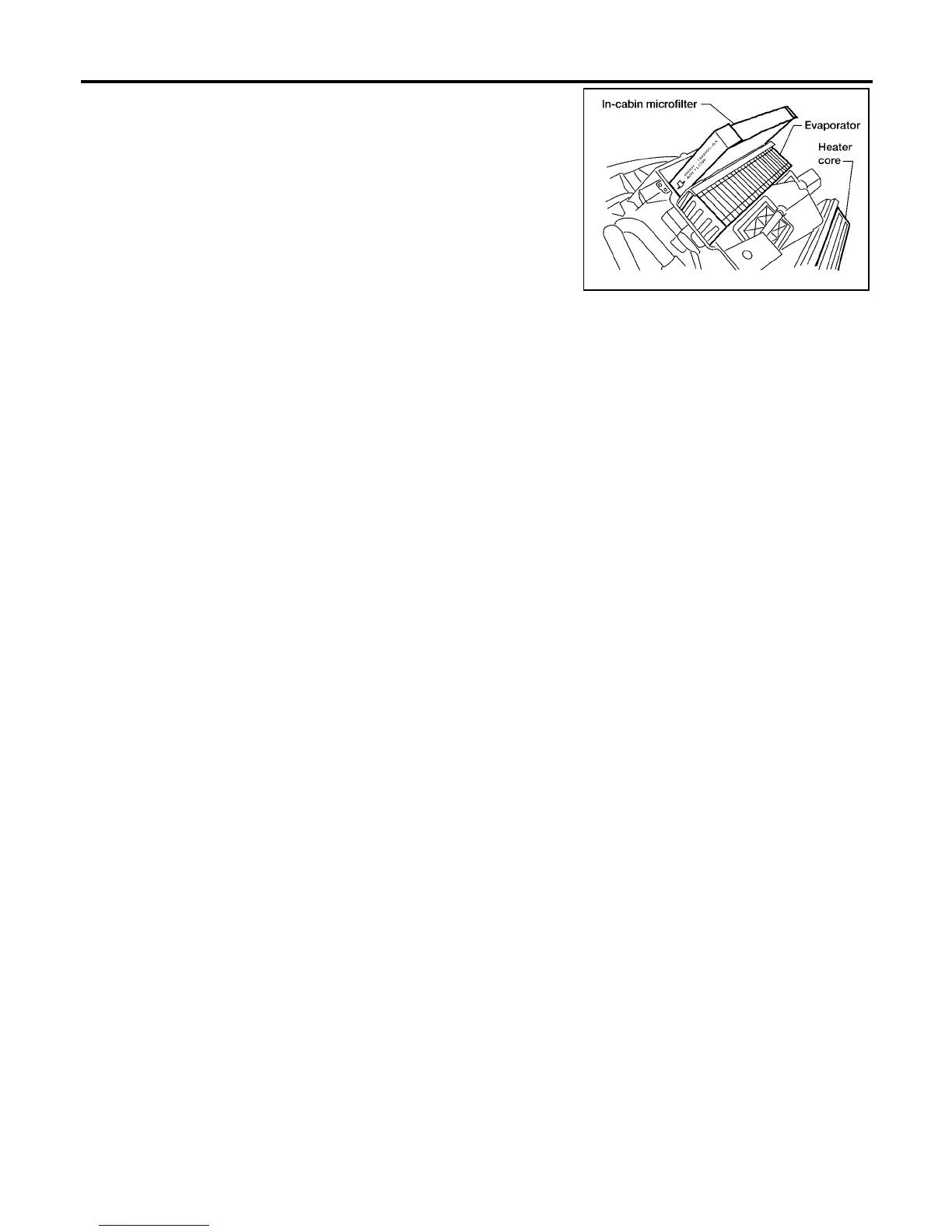

● When installing the in-cabin microfilters, face the microfilters according to the air flow direction
arrow printed on the side of the filters.
LJIA0019E
To Next Page
