AIR MIX DOOR MOTOR PFP:27732
Components EJS001U6
Air Mix Door Motor (Front) - Front Heater and Cooling Unit Assembly
Removal and Installation EJS001TZ
AIR MIX DOOR MOTOR (FRONT)
1. Remove the lower driver instrument panel. Refer to IP-12, "Instrument Lower Panel LH" .
2. Remove the center console trim panel. Refer to IP-10, "
Removal and Installation" .
WJIA0446E

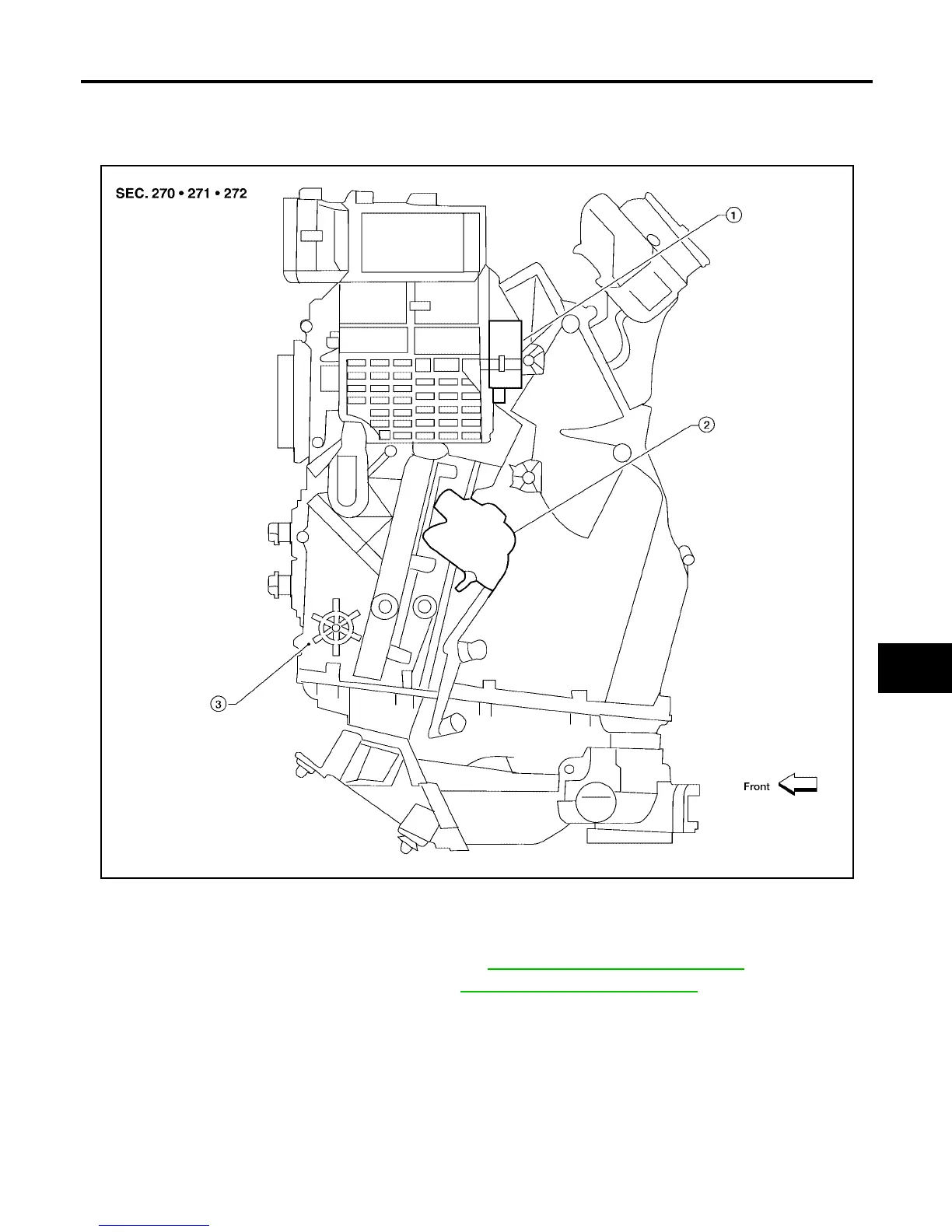

1. Intake door motor (driver) 2. Air mix door motor (front) 3. Front heater and cooling unit assembly
