MTC-116
CONTROL UNIT
Revision: January 2005 2004 Quest
CONTROL UNIT PFP:27500
Removal and Installation EJS001SZ
FRONT AIR CONTROL
Removal
1. Remove the five control knobs from the control unit.
2. Remove cluster lid C, disconnect the front air control electrical connector. Refer to IP-11, "
Cluster Lid C" .
3. Remove the screws securing the front air control to cluster lid C.
4. Remove the front air control.
Installation
Installation is in the reverse order of removal.
REAR AIR CONTROL
Removal
1. Remove the rear air control from the headliner, located over the
sliding door, RH.
2. Disconnect the rear air control electrical connector and remove
the rear air control.
Installation
Installation is in the reverse order of removal.

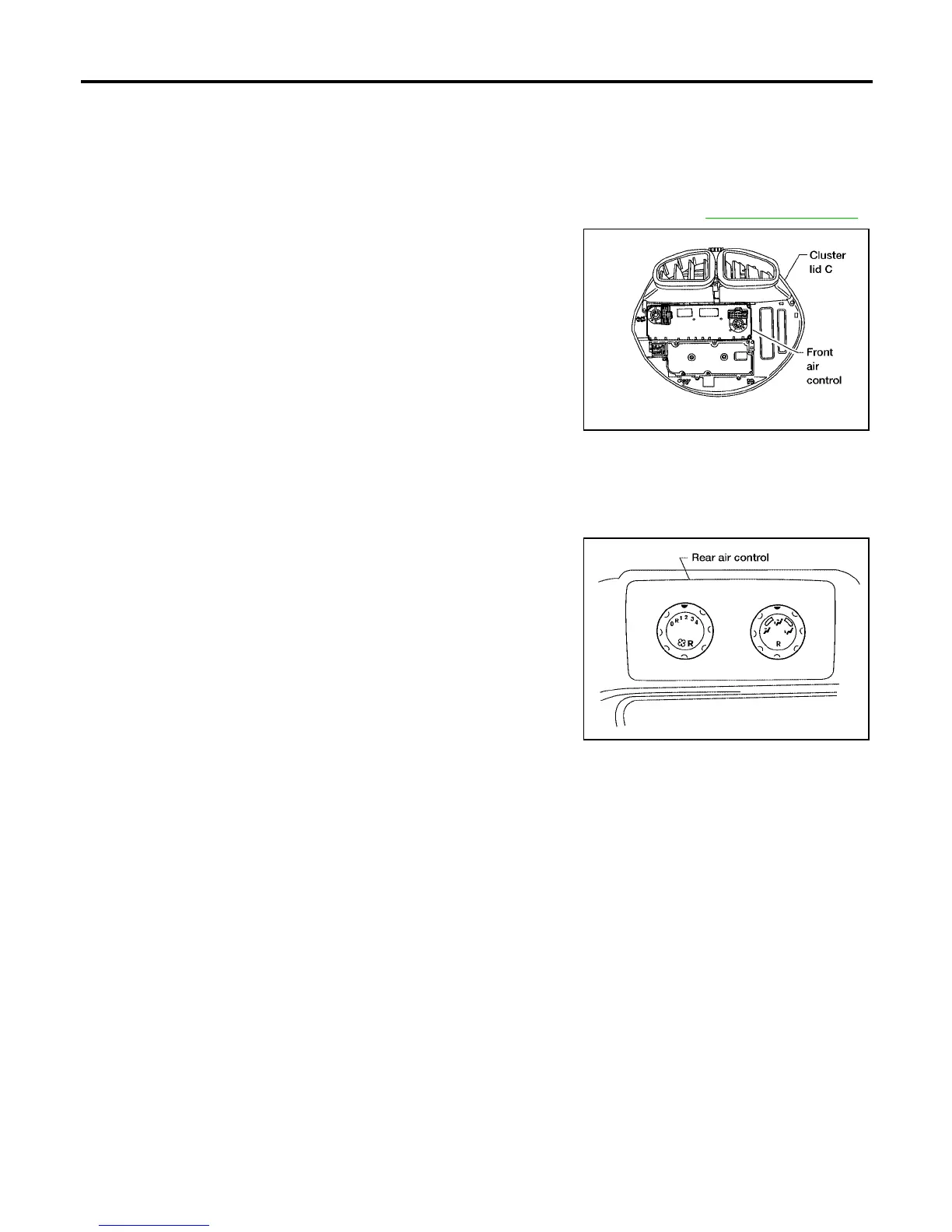

WJIA0515E
LJIA0030E
