MTC-126

HEATER CORE

Revision: January 2005 2004 Quest

Rear Heater and Cooling Unit Assembly

Removal and Installation EJS001T7

FRONT HEATER CORE

1. Remove the front heater and cooling unit assembly. Refer to MTC-123, "FRONT HEATER AND COOL-

ING UNIT ASSEMBLY" .

2. Remove the blower motor side cover.

3. Remove the front blower motor.

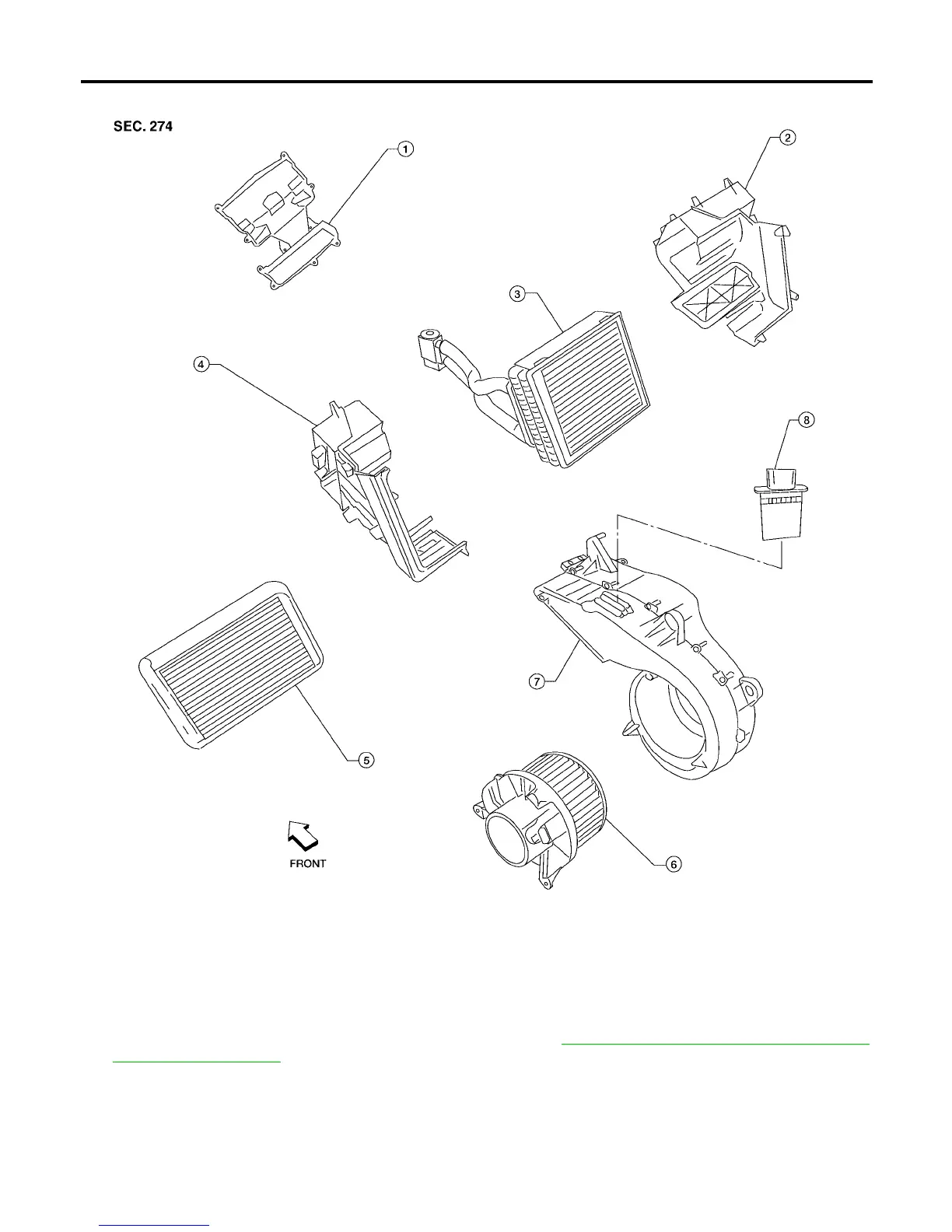

LJIA0020E

1. Front cover 2. Evaporator and heater core case 3. Evaporator

4. Side cover 5. Heater core 6. Rear blower motor

7. Blower motor case 8. Rear blower motor resistor
