REFRIGERANT LINES
MTC-151
C
D
E
F
G
H
I
K
L
M
A
B
MTC
Revision: January 2005 2004 Quest

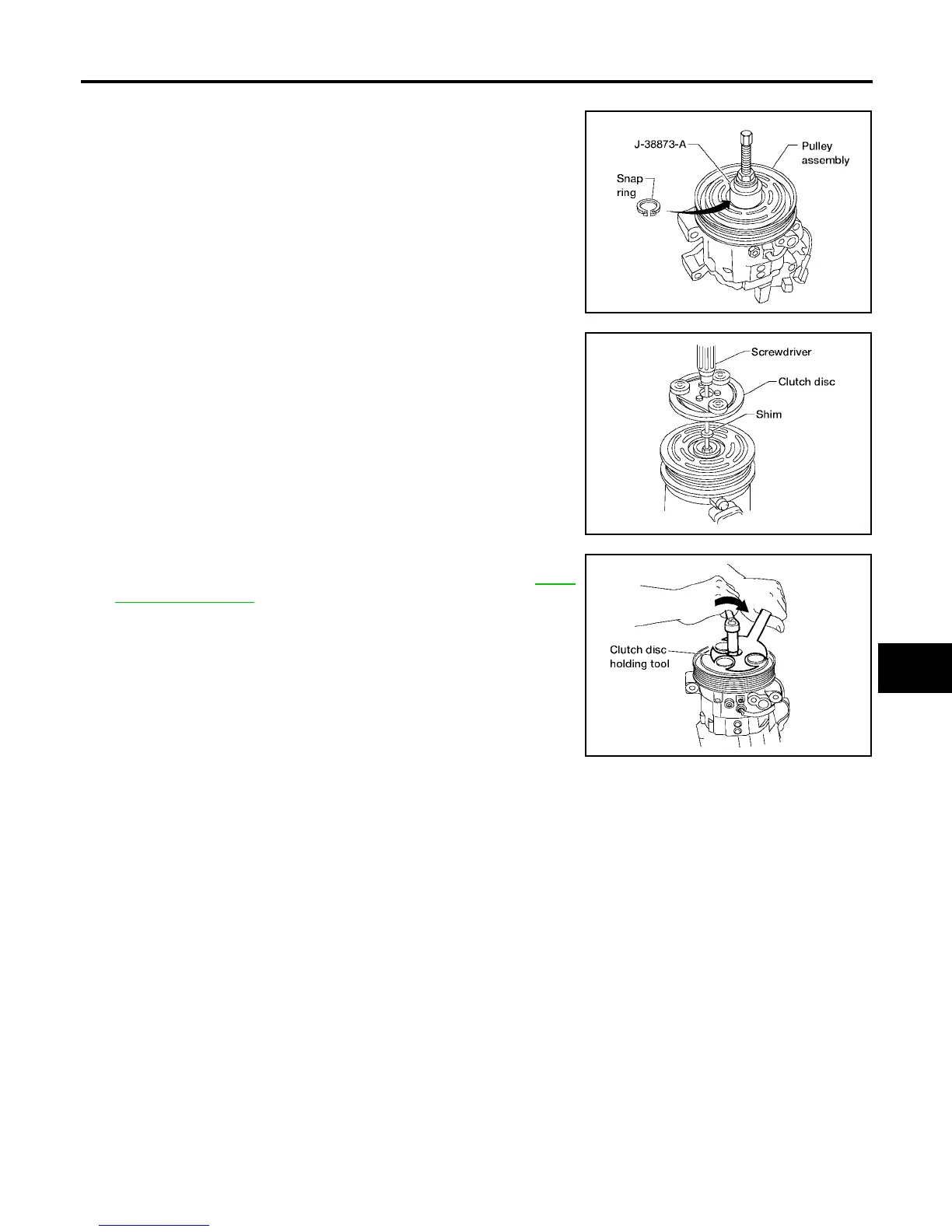

2. Install the magnet coil harness clip using a screwdriver.
3. Install the pulley assembly using Tool and a wrench, then install
the snap ring using snap ring pliers.
4. Install the clutch disc on the compressor shaft, together with the
original shim(s). Press the clutch disc down by hand.
5. Install the clutch pulley bolt using Tool, to prevent the clutch disc
from turning and tighten the bolt to specification. Refer to MTC-
146, "Components" .
CAUTION:
After tightening the clutch pulley bolt, check that the clutch
pulley rotates smoothly.
WJIA0368E
WHA184
Tool number : J-44614
WHA229
To Next Page
