MTC-84
TROUBLE DIAGNOSIS
Revision: January 2005 2004 Quest
1. DIAGNOSTIC PROCEDURE
Blower motor rotates normally at each speed.
OK or NG
OK >> Inspection End.
NG >> 1. Does not rotate at any speed, GO TO 2.
2. Does not rotate at 1 - 3 speed, GO TO 13.
3. Does not rotate at 4 speed, GO TO 18.
2. CHECK FUSES
Check 15A fuses [Nos. 10 and 11, located in the fuse block (J/B)]. Refer to PG-71, "
FUSE BLOCK-JUNCTION
BOX(J/B)" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 8.

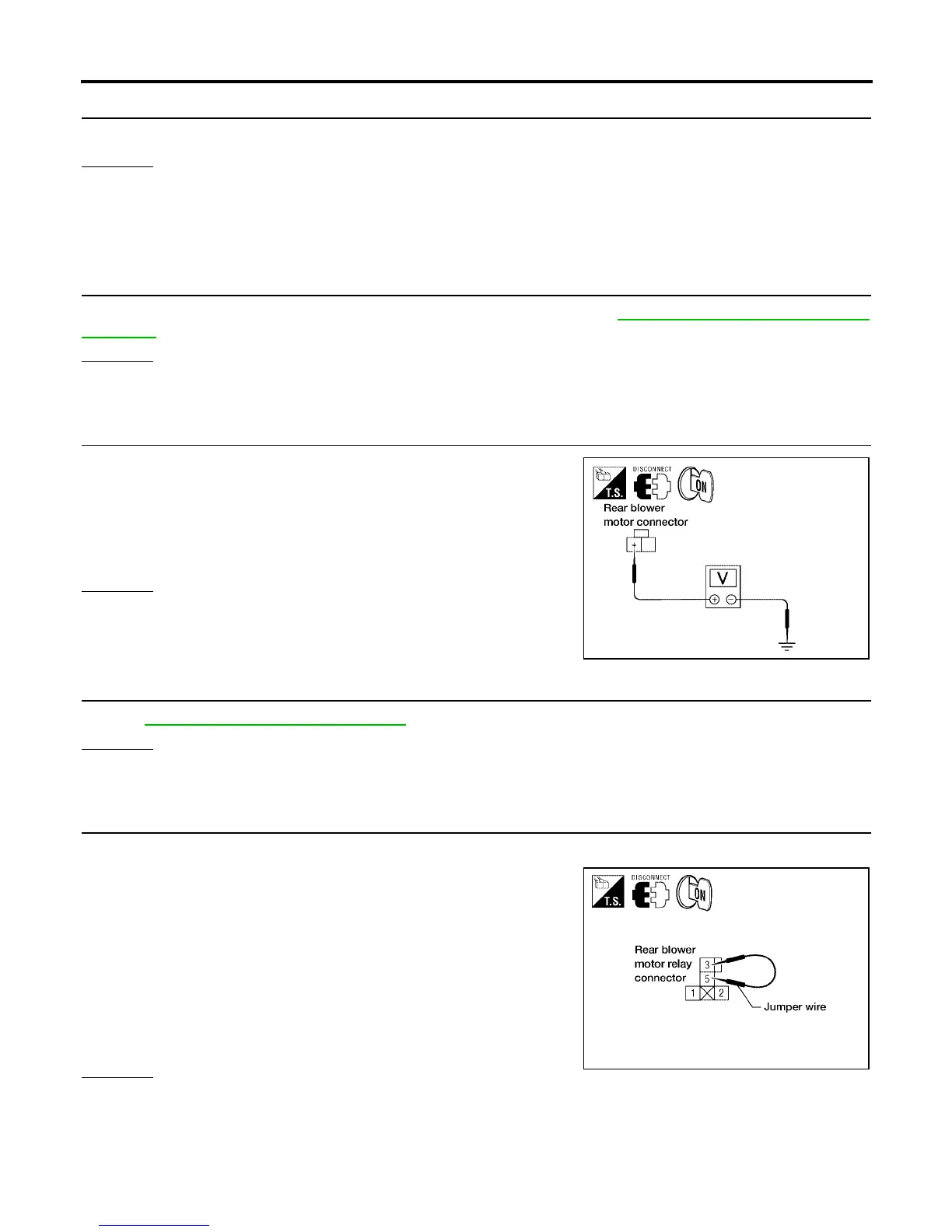

3. CHECK REAR BLOWER MOTOR POWER SUPPLY
1. Disconnect rear blower motor harness connector.
2. Select any rear blower speed except OFF.
3. Check voltage between rear blower motor harness connector
B134 terminal + (L/R) and ground.
OK or NG
OK >> GO TO 11.
NG >> GO TO 4.
4. CHECK REAR BLOWER MOTOR RELAY
Refer to MTC-89, "
Rear Blower Motor Relay" .
OK or NG
OK >> GO TO 5.
NG >> Replace rear blower motor relay.
5. CHECK REAR BLOWER MOTOR POWER FROM RELAY TO REAR BLOWER MOTOR
1. Reconnect rear blower motor harness connector.
2. Disconnect rear blower motor relay.
3. Turn ignition switch ON and select any rear blower speed except
OFF.
4. Set rear blower switch (front) to any position except OFF, REAR,
or 4 - speed.
5. Momentarily (no more than 4 seconds), connect a jumper wire
between rear blower motor relay connector J1 (harness side)
terminals 3 and 5.
OK or NG
OK >> GO TO 6.
NG >> GO TO 10.
Battery voltage should exist.
LJIA0099E
Rear blower motor should rotate.
WJIA0972E
