PRECAUTIONS
MTC-9
C
D
E
F
G
H
I
K
L
M
A
B
MTC
Revision: January 2005 2004 Quest
CAUTION:

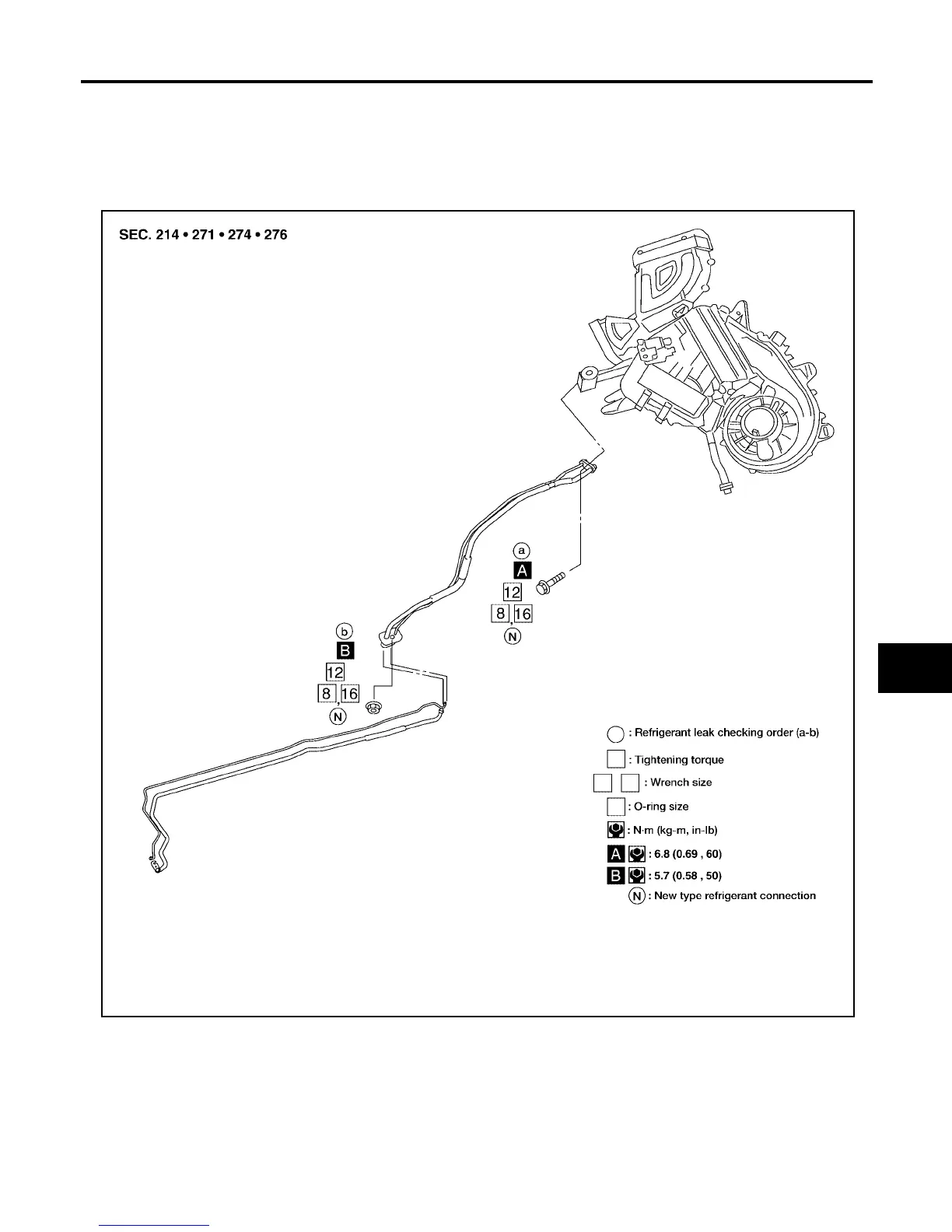

The new and former refrigerant connections use different O-ring configurations. Do not confuse O-
rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant will leak at or
around the connection.
1. High-pressure service valve 2. Low-pressure service valve 3. High-pressure pipe
4. Refrigerant pressure sensor 5. Low-pressure flexible hose 6. High-pressure flexible hose
7. Shaft seal 8. Condenser 9. Liquid tank
10. Pressure relief valve 11. Compressor 12. Evaporator
13. High/low pressure pipe
LJIA0016E
