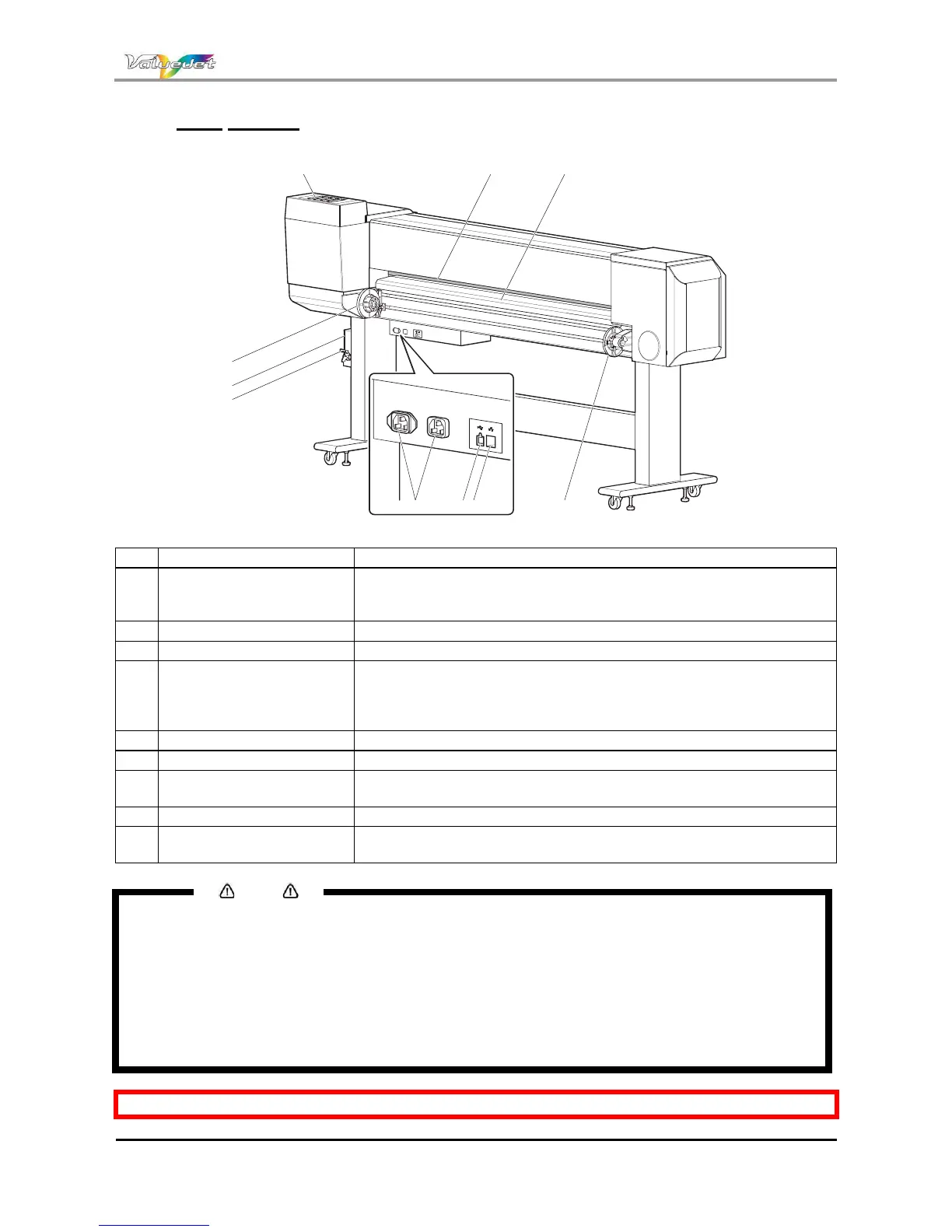

2.2.2 Rear section
î
ï
é
è
ë éê ï
ìí
N° Name Function
1 Roll media holders
Used to load the roll media.
Include flanges where roll media is attached, and the levers that fix the
roll media holders.
2 Media feed slot Used for feeding media
3 Ink cassette slot Insert the ink cassette
4 Media guide
Used for smoothly feeding through media when the media is set or
printed.
The VJ-1614 printer also incorporates a pre-heater element to warm up
the installed media before printing.
5 AC inlet Used to connect the power cables.
6 USB connector Not used for this printer
7
Network interface
connector
Connects a network interface cable.
8 Waste fluid tank Used to collect waste ink discharged from the printer.
9 Waste fluid valve
Open and close when discharging the waste fluid from the waste fluid
tank. The default position is closed.
Notes
There are two optional winding systems available for the ValueJet 1614
± Unwinder/Winder 100
± Motorized winding system with tensioning (T winder)
Please refer to the User Guide of the chosen system to know how to correctly load media
Refer to the pricing sheet for more details of these systems.
If you do not use one of the above winding systems. You have to use the scroller which is supplied with
the printer.
Be sure to read and understand the safety warnings before handling the printer.
