Users Guide ValueJet 1614
59 AP-75790  Rev 1.4 -22/02/2011,

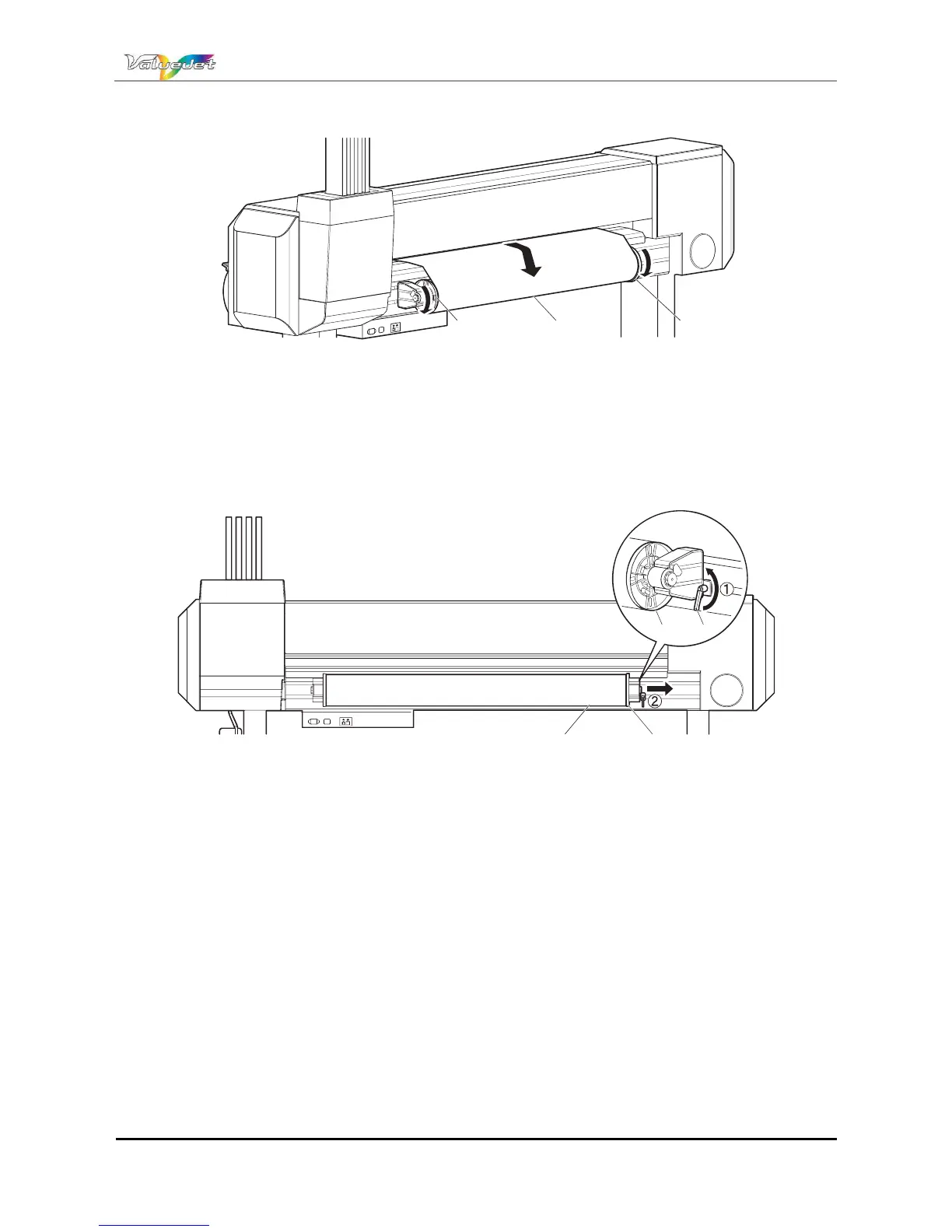

Step 3 : Turn the flanges of the roll media holders and wind roll media
ïï î
Step 4 : Loosen the lever of the right roll media holder and remove the media
í ï
ï î
N° name
1 Roll media holder (right)
2 Fixing lever
3 Roll media
N° Name
1 Roll media holders
2 Roll media
