Users Guide ValueJet 1614

99 AP-75790  Rev 1.4 -22/02/2011,

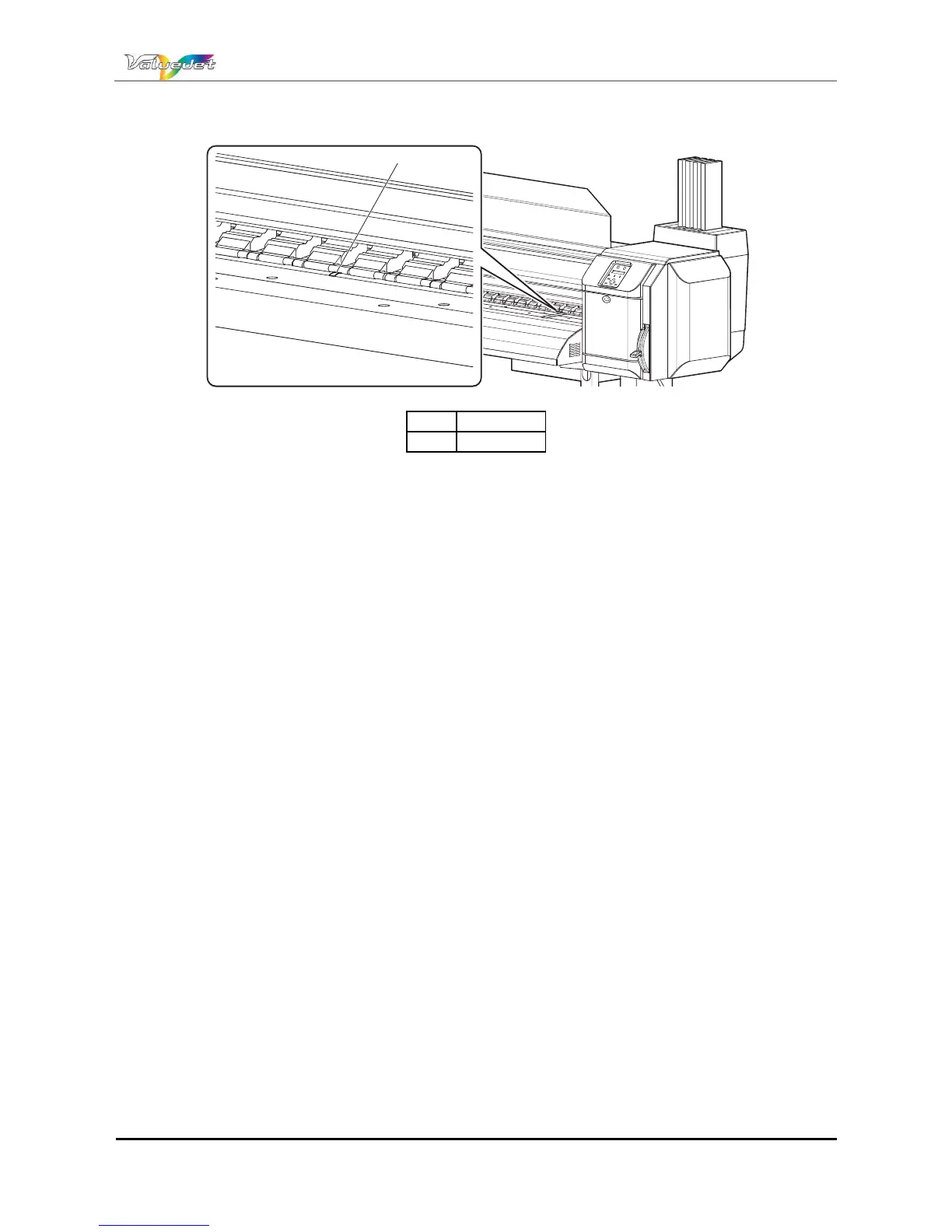

Step 4 : Wipe off the dirt of the grid rollers unpainted (silver colour) area with damp and a tightly

squeezed soft cloth.

N° Name

1 Grid roller

Table of Contents7
Regularization and Safety Information9
Important Safety and Environmental Instructions11
Warning Labels15
Handling the Operation Procedure Label15
Locations and Types of Warning Labels15
Product Overview19
Features20
Name of the Parts and Functions21
Front Section21
Rear Section22
Operation Panel23
Operation Keys in the Normal Mode24
Display Section25
Printer Mode26
Normal Mode26
Setup Menu Display26
Changing the Printer Mode26
Basics27
Installation Environment28
Environmental Conditions for Installation28
Installation Space28
Switching the Power on30
Switching the Power off31
Replacing Ink Cassettes32
Disposal of Waste Fluids34
Disposal Period34
Disposal Method34
Transferring the Printer35
Transporting the Printer36
Handling the Printer39
Making the Printer Ready-To-Print41
General Info on Usable Media42
Media Compatibility42
Printing Area42
Notes on Handling Media43
Notes on Storing Media43
Installing Roll Media44
Setting Roll Media47
Setting Media Type52
Head Height Adjustment53
Step Adjustment54
Replacing Roll Media58
Test Print61
Overview and Functions of the Test Prints61
Performing a Test Print61
Nozzle Check63
Mode Print63
Setup Print64
Palette Print65
Adjust Print66
Menu Setup Procedure69
Panel Setup Menu71
Panel Setup Menu Overview71
Mediatype Menu72
User Media Menu72
Print Mode Menu73
Dist.adj Menu73
Init.adj.print Menu74
Init.adj.change Menu74
Confirm Print Menu74
Micro Adj. Print Menu74
Pre Heater Menu75
Fixer (Platen) Menu75
Dryer Menu76
Standby Heating Menu76
Vacuum Fan Menu76
Effect Menu77
Printer Menu Integration77
Advantages78
Flushing Menu79
Flushing Return Count Menu80
Side Margin Menu80
Media Initial Menu80
Media Width Menu81
Winding Unit Menu81
Origin Menu82
Prev. Stick Menu82
Head Fan Menu83
CR Movement Menu83
Overwrite Cnt Menu83
Overwrite Wait Menu83
Slant Check Menu84
Auto Cleaning Menu84
Ink Status Menu84
Roll Length Menu85
Head Wash Menu85
CR Maintenance Menu86
Initialization Menu86
Life Times Menu86
IP Address Menu87
Subnet Mask Menu87
Gateway Menu87
Sleep Mode Menu88
Timer Setting Menu88
Sleep Mode Start Menu89
Operating from the Operation Panel90
Feeding Media90
Stop Printing91
Pause Printing91
Cutting Media92
Changing and Confirming Settings While Printing93
Procedure for Changing and Confirming Settings While Printing93
Settings that Can be Changed or Confirmed While Printing.94
Periodical Maintenance95
Done by End User96
Cleaning the Printer96
Cleaning the Outer Case97
Cleaning Inside the Printer98
Replacing the Spitting Box Sponges100
Pre-Transport Procedure100
Head Cleaning101
Cleaning the Wiper102
Cleaning Time102
Cleaning Around the Print Head105
Done by Authorized Mutoh Technician108
Periodical Replacement of Parts108
Periodical Inspection Part List108
Troubleshooting109
Perform Head Cleaning110
Adjust the Print Head111
When Media Is Jammed114
Malfunctions and Failures116
Problems in Installation and Introduction116
Cannot Print at All116
Media-Related Troubleshooting118
Printing-Related Troubleshooting120
Error Messages122
Status Messages122
Error Message Display and Remedies123
Data Error Display and Solutions123
Command Error Display and Remedies124
Errors Requiring a Restart124
