MYDATA MY500 JetPrinter - Specifications

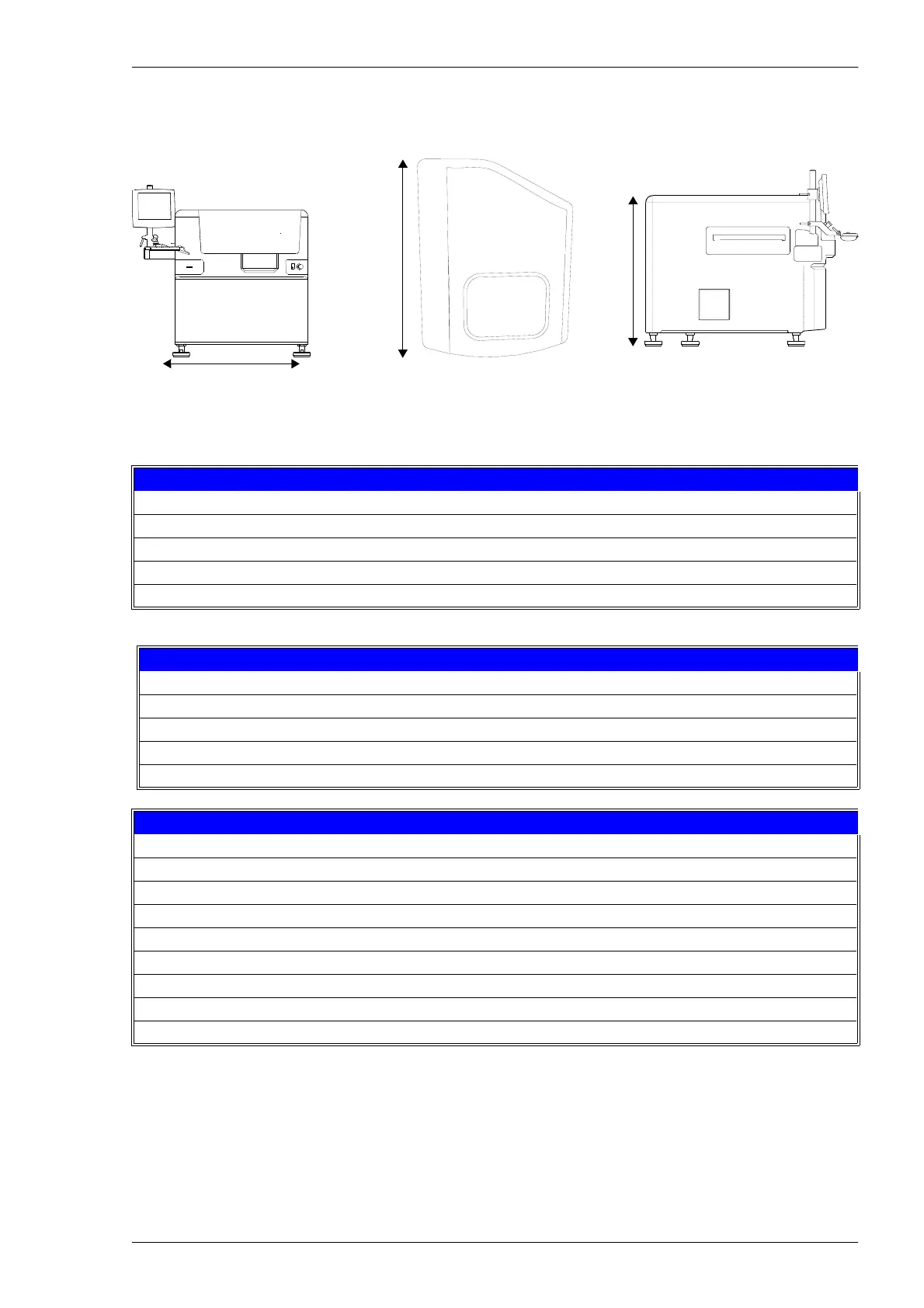

MYDATA MY500 JetPrinter Appendix A – Specifications
P-030-0014-EN – Service Manual Rev. 0003 2008-06 A - 1
Appendix A – Specifications
These specifications can be changed at any time without prior notice. For updated data, please contact your
MYDATA representative.
*) Excluding monitor.
*) No objects above PWB top reference in conveyor rail.
**) 0.4 % of PWB diagonal or 2 mm, whichever is lowest.
Length Width Height
Machine data
Weight 2 000 kg.
Noise 68 dB(A).
Height 1 308 mm.
Width 1 650 mm.
Length* 1 180 mm.
Installation requirements
Power requirements. Single phase AC 1 700 VA.
Power consumption. 1 200 W
Voltage 230 V ±10 %, 50 – 60 Hz, (115 V ±10 %, 50 – 60 Hz).
Air supply. Min. 7 bar, Max. 10 bar, 250 L/min.
Ambient temperature. +18 °C to +30 °C, 30–80 % RH non condensing.
Board handling
Maximum board size. 508 × 508 mm.
Minimum board size. 50 × 50 mm.
Board thickness range. 0.4–7.0 mm.
Board edge clearance top. 3 mm.
Board edge clearance bottom. 4 mm.
Top side clearance.* 0 mm
Bottom side clearance. 20 mm.
Maximum board weight. 5 kg.
Max board warp/bow/twist.** 2 mm.
