MYDATA MY500 JetPrinter - Safety Hoods and Devices

MYDATA MY500 JetPrinter Safety
P-030-0014-EN – Service Manual Rev. 0003 2008-06 1 - 3
Emergency Movement of Machine Elements
If an accident has occurred and an emergency movement of a machine element
is required, use the following procedure:
1. Press down an emergency stop button.
This will disconnect the motors used to position the machine elements.
2. Move the machine element away by hand.
Safety Hoods and Devices
The following safety hoods and devices are found on the machine:
1. Hood front.
2. Hood front safety switch.
3. Front cover.
4. Side hood (one on each side of the machine).
5. Hood back.

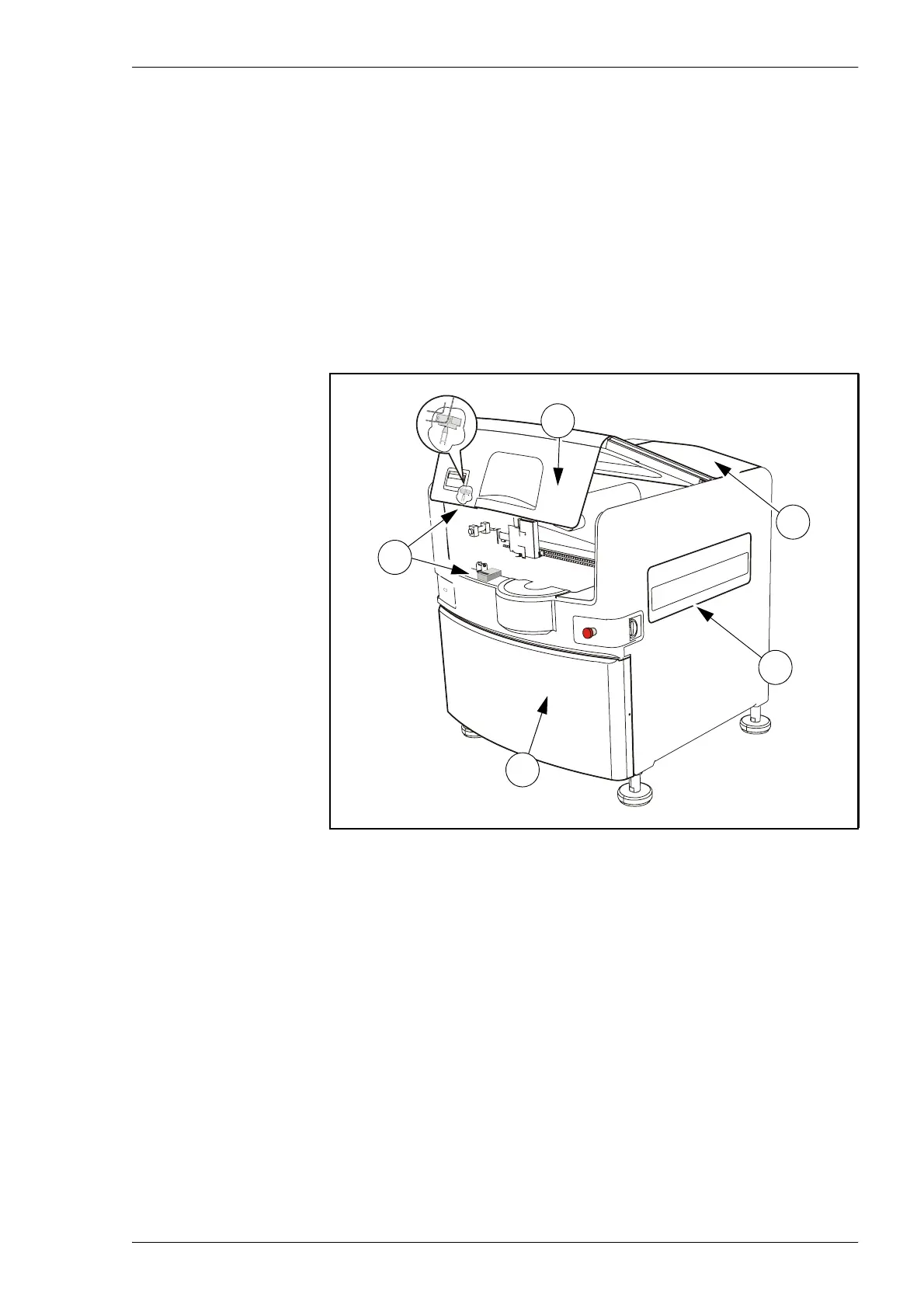

Figure 1-3. Safety hoods and switch on a MY500.
1
3
5
2
4
