Screen Examples
The system is self-instructing. The initial screens are overview screens with a
brief description, and information, of the system. The following screens are
used to test and calibrate system and hardware. In the hardware window
manual adjustments can be made. The operations are described directly in the
interface.
Please see the figures below for screen examples for testing and calibrating the
movement system.

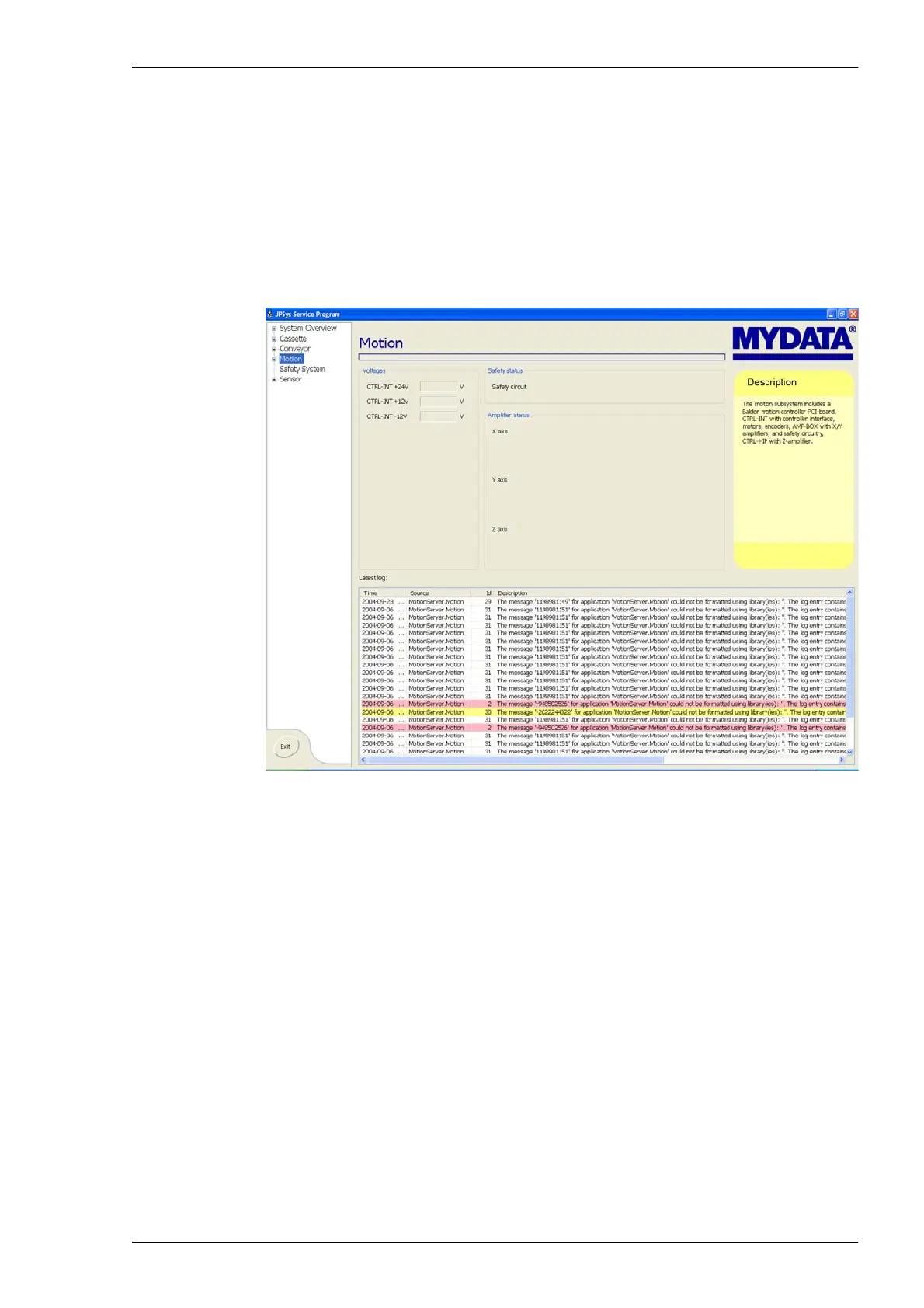

Figure 4-3. The movement system overview screen.
