Conveyor
The board is transported into and out of the machine by an internal conveyor.
This is a top reference conveyor which accept cards with the following
specifications:
– Maximum PWB width and length: 508 × 508 mm.
– Minimum PWB width and length: 50 × 50 mm.
– Thickness: 0,4–7 mm.
– Maximum weight: 5 kg.
The conveyor have one fixed side (’1’ in Figure 3-20) and one moveable side
(2) which adjusts the conveyor's width according to the loaded board.
The board is moved by conveyor bands running in the fixed and moving sides.
When the board reach the position where the machine will apply the solder
paste, a lifting table lift the board into position.

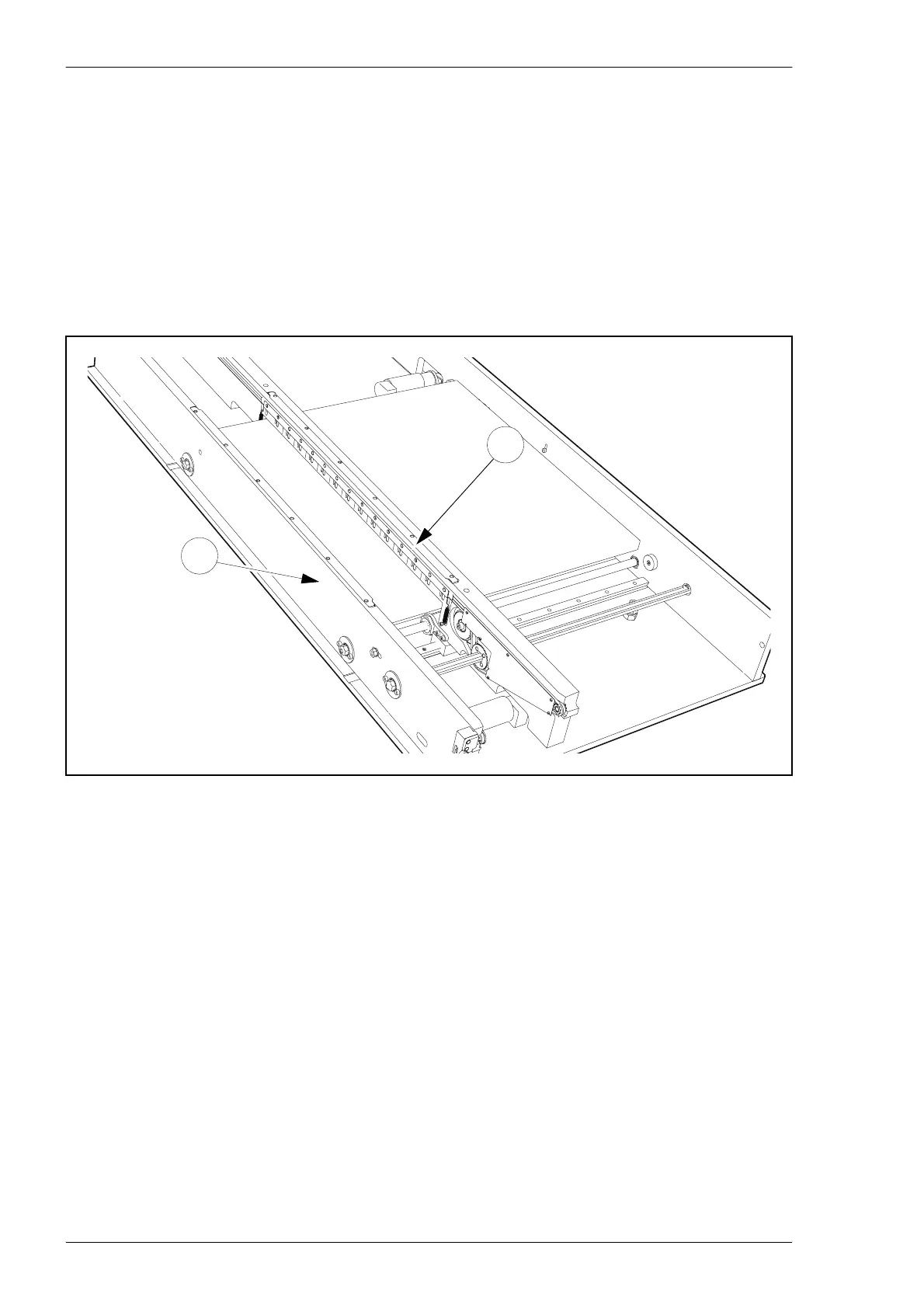

Figure 3-20. Internal conveyor.
1
2
