Machine Systems MY500 JetPrinter MYDATA
3 - 6 Rev. 0003 2008-06 P-030-0014-EN – Service Manual
Framework
To be able to withstand high stresses, from accelerating movements, the frame
of the printer is made in a heavy stone-epoxy composite material. This is a
mineral casting mixed with epoxy. Mineral casting have outstanding
dampening, high rigidity and ensure dimensional accuracy.
The motion system, based upon a carbon fiber beam and two wagons, is
located inside the stone frame. An internal conveyor for the board movements
is also included. Finally there are hoods and doors attached to the framework
to cover the machine components.

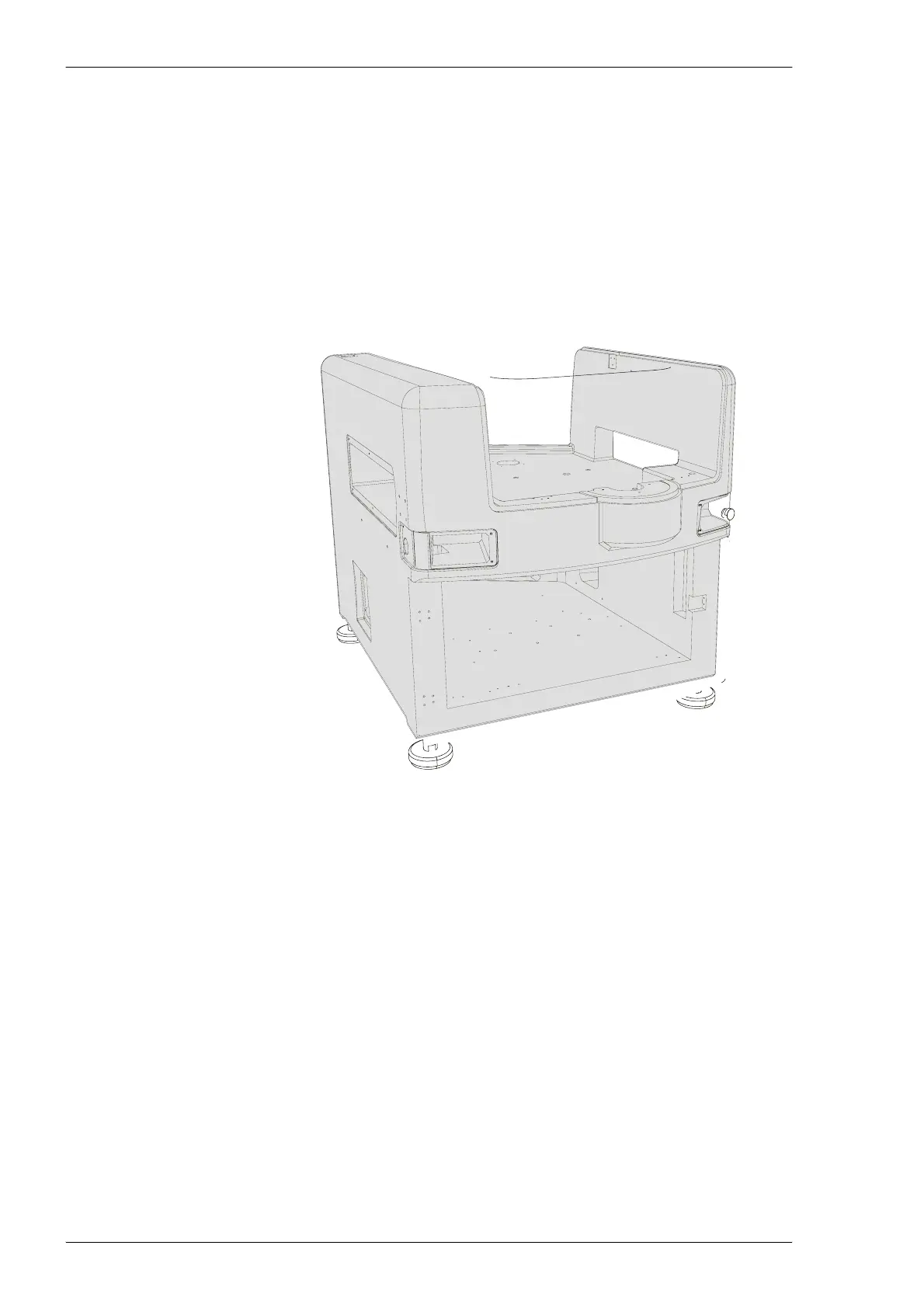

Figure 3-4. Stone frame.
