MYDATA MY500 JetPrinter - Machine Component Identification

Machine Systems MY500 JetPrinter MYDATA
3 - 2 Rev. 0003 2008-06 P-030-0014-EN – Service Manual
MY500 JetPrinter Main Parts
Outside:
1. Main switch.
2. Emergency stop buttons.
3. Touch screen.
4. Keyboard
5. Trackball
6. Front hood.
7. Front hood handle.
8. Light tower (optional).
9. USB port.
10. Front door. This door is locked.
11. Rear hood. This hood is fixed with four screws.

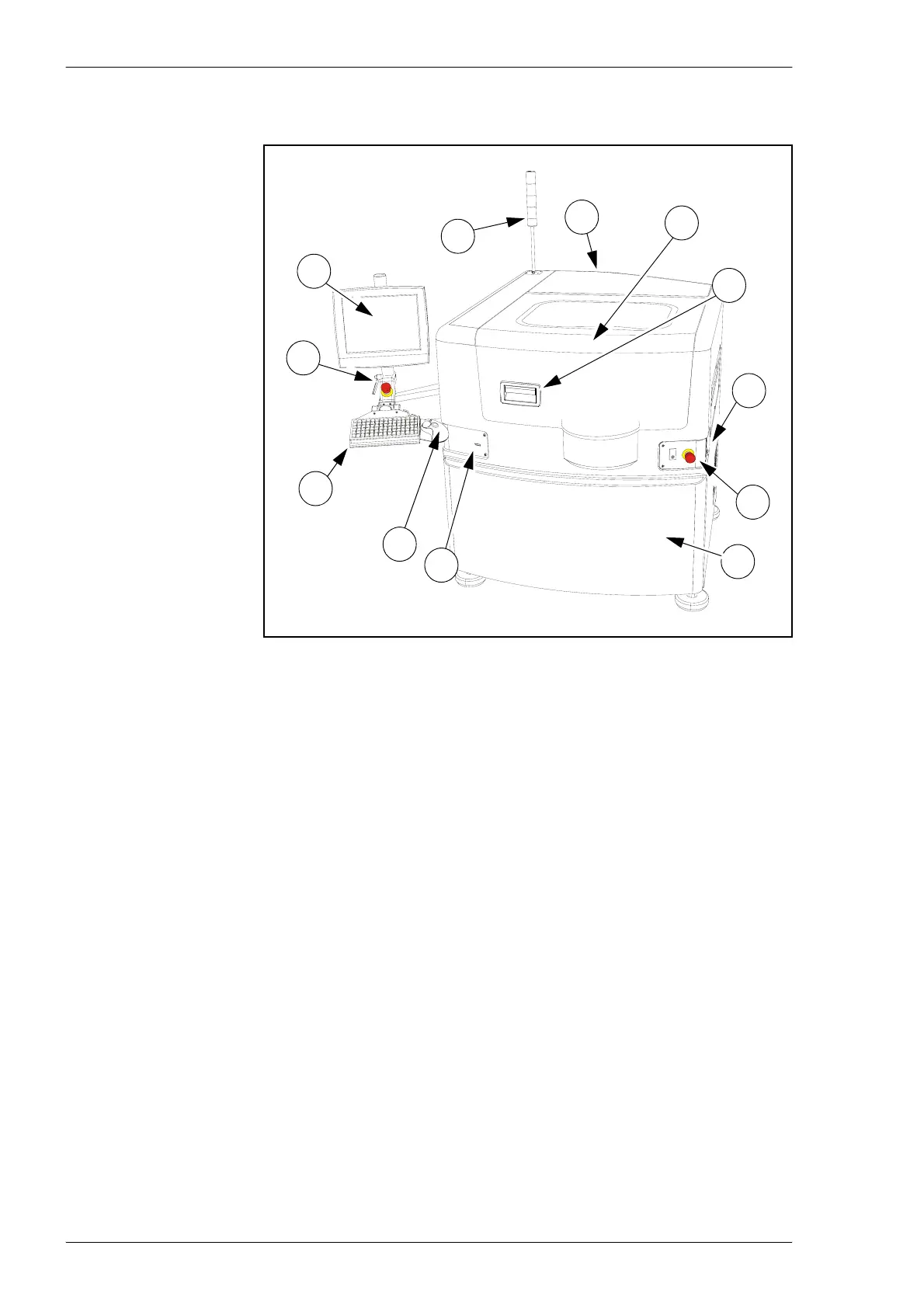

Figure 3-1. MY500 JetPrinter, components on the outside.
