MYDATA MY500 JetPrinter Routine Maintenance
P-030-0014-EN – Service Manual Rev. 0003 2008-06 5 - 11
Changing Calibration Paper
This preventive maintenance shall only be carried out by authorized service
engineers.
WARNING! Before commencing, switch the power off, and lock out and tag
the main switch.
The solder paste cassette is calibrated every time you change it or initiate the
hardware. Calibration is done by shooting a test pattern onto a roll of paper on
the cassette calibration unit.
If necessary, the paper roll is replaced as follows:

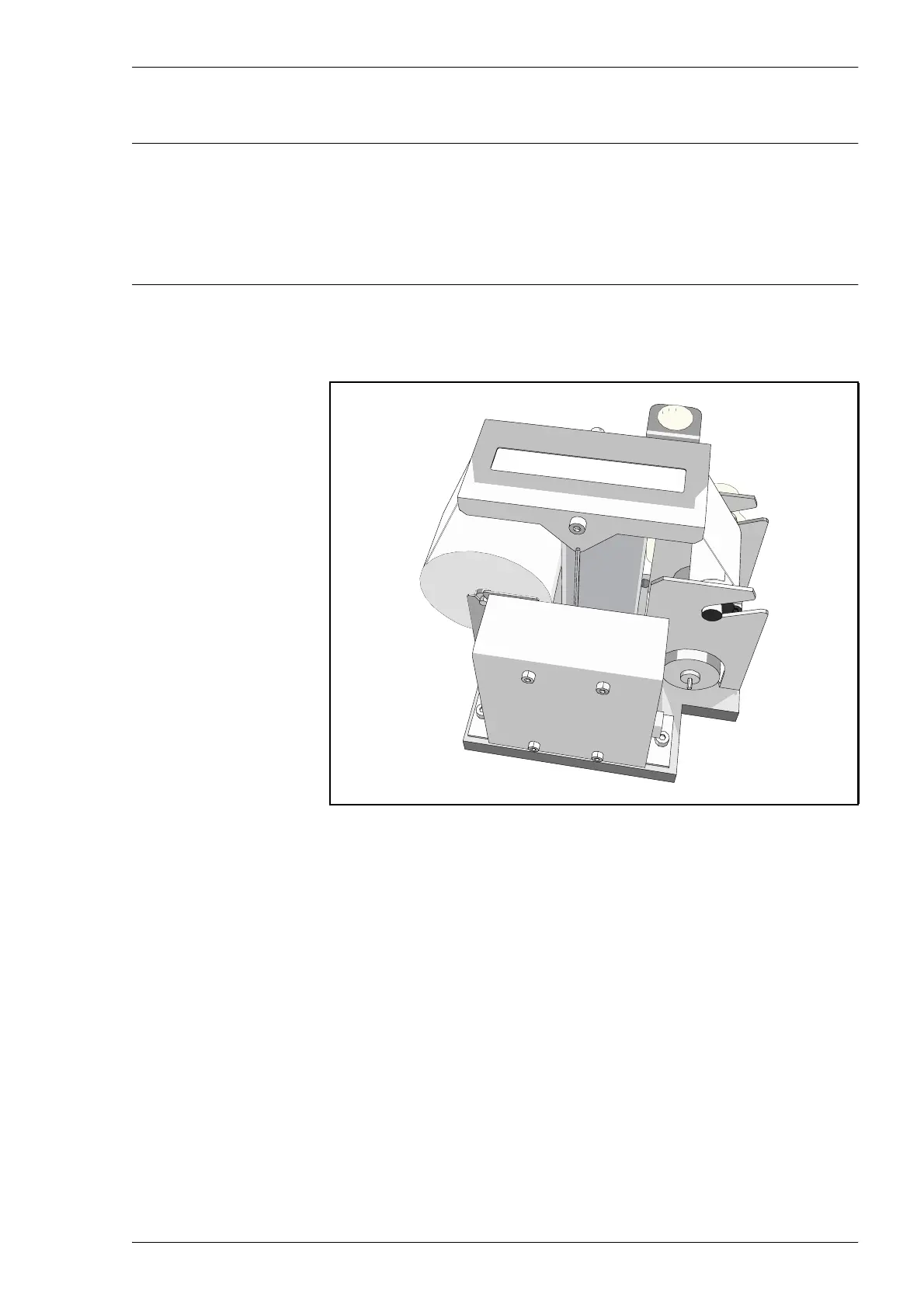

Figure 5-10. Cassette calibration unit.
