Installation MY500 JetPrinter MYDATA
2 - 18 Rev. 0003 2008-06 P-030-0014-EN – Service Manual
Drain tube
Connect the blue drain tube to handle the condensation water properly.
The drain tube comes out from the bottom side of the air dryer.
Placement of Cooling Unit
Place the Cooling Unit in an open dust free space with max ambient
temperature of +40 °C.
The Cooling Unit must have a minimum distance of 0.4 m to nearest wall or
machine.
Optional Micro Mist Separator Unit
Connect ’Air in’ of the Micro Mist Separator Unit to compressed air 0.8–
1.0Mpa.
Maximum compressed air in temperature is +35 °C. Thread of the ’Air in’
connection is G ½.

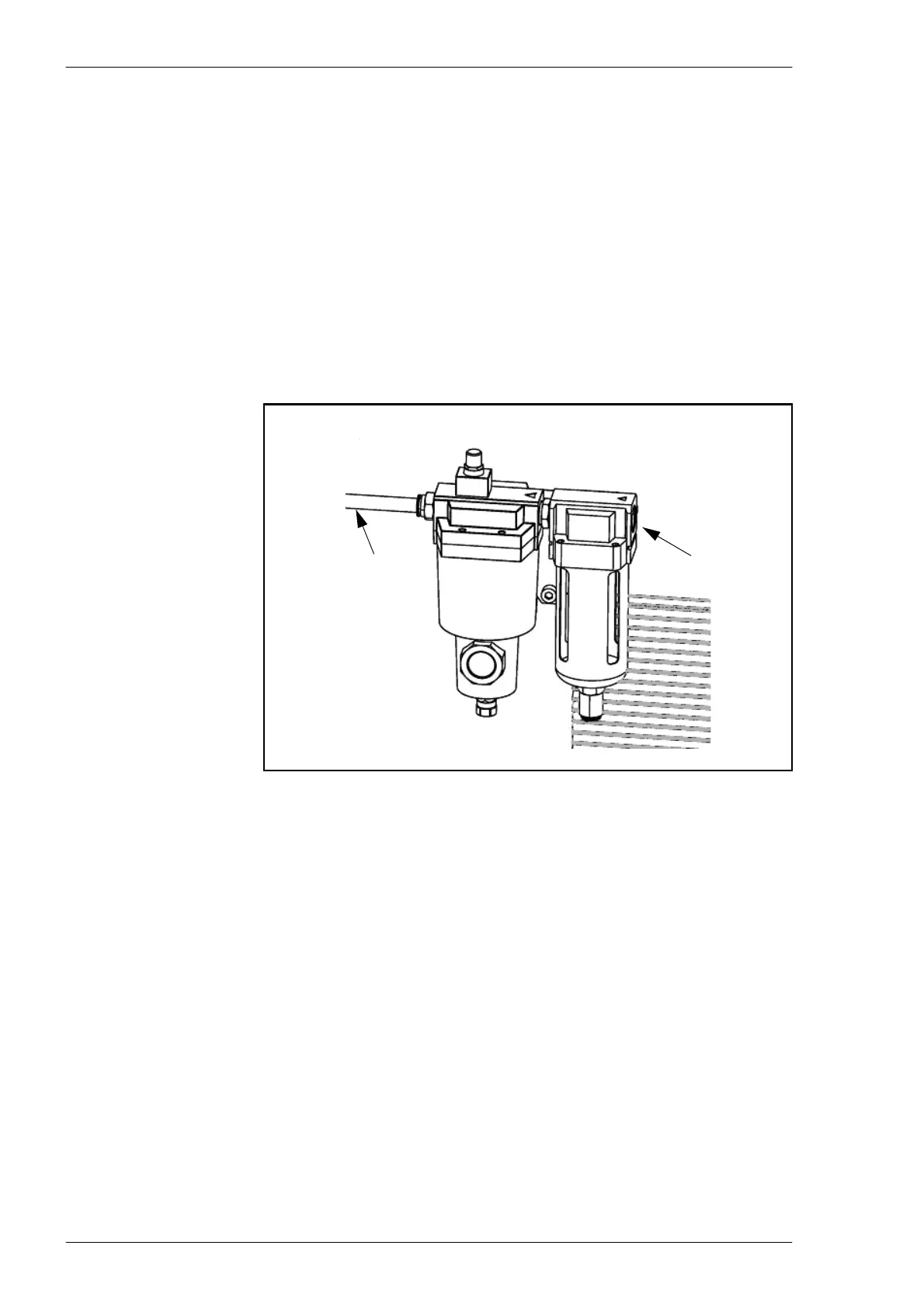

Figure 2-15. Micro mist separator unit.
Air in
To MY500 JetPrinter
