Movement Systems
The movement system is a three-dimensional system, based upon a carbon
fiber beam and two wagons. The motion system operates together with an
optic positioning system.
The machine contains the following movement systems:
• X movement moves the X wagon in the X direction.
• Y movement moves the Y beam in the Y direction.
• Z movement moves the cassette interface in the Z direction.

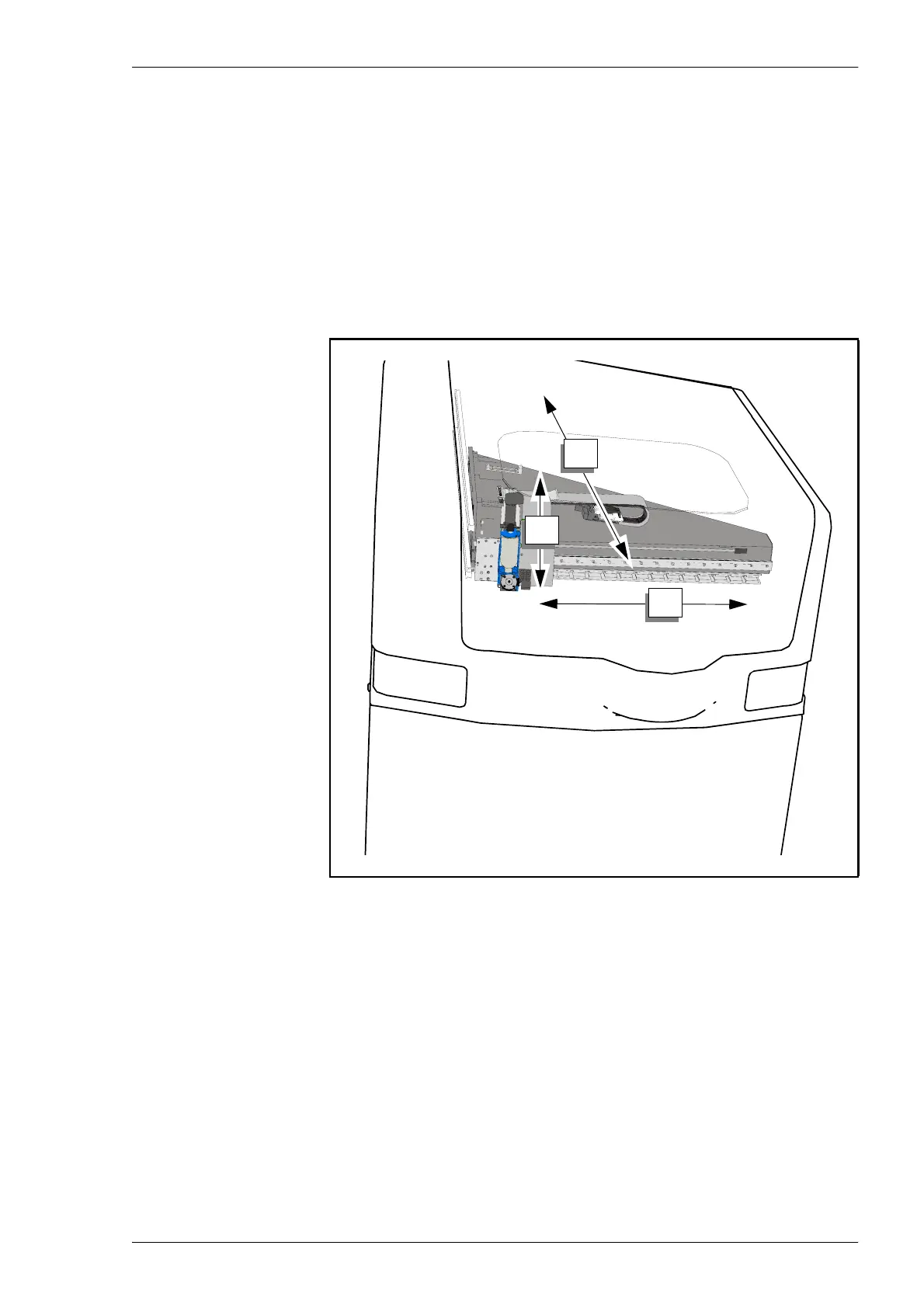

Figure 3-5. Y beam and X wagon.
Y
X
Z
