The solder paste cartridge
The solder paste cartridge is a disposable container that is discarded after use.
It has the following main parts at delivery:
1. Cap (removed when installed into the holder). Used for transport and
storage when not in holder.
2. Plunger
3. Cartridge
4. Label
5. Threaded cap (removed when installed into the holder). Used for
transport and storage when not in holder.
On the cartridge there is a label stating product name, product number, product
group, and additional data according to J-STD-005. This information is
provided in plain text as well as Code 128 bar code.
WARNING! Solder paste, during handling or use, may be hazardous to health
or the environment. Read the Material Safety Data Sheet and warning label
before using. Always remember that care should be taken to avoid the
ingestion of solder paste. As solder paste often contains lead and/or other
toxic materials, gloves and gowns should be worn while using solder paste,
and hands should be washed afterwards.
Empty containers may contain product residue and must be treated as
hazardous waste.
Keep out of waterways.
Observe all label precautions.

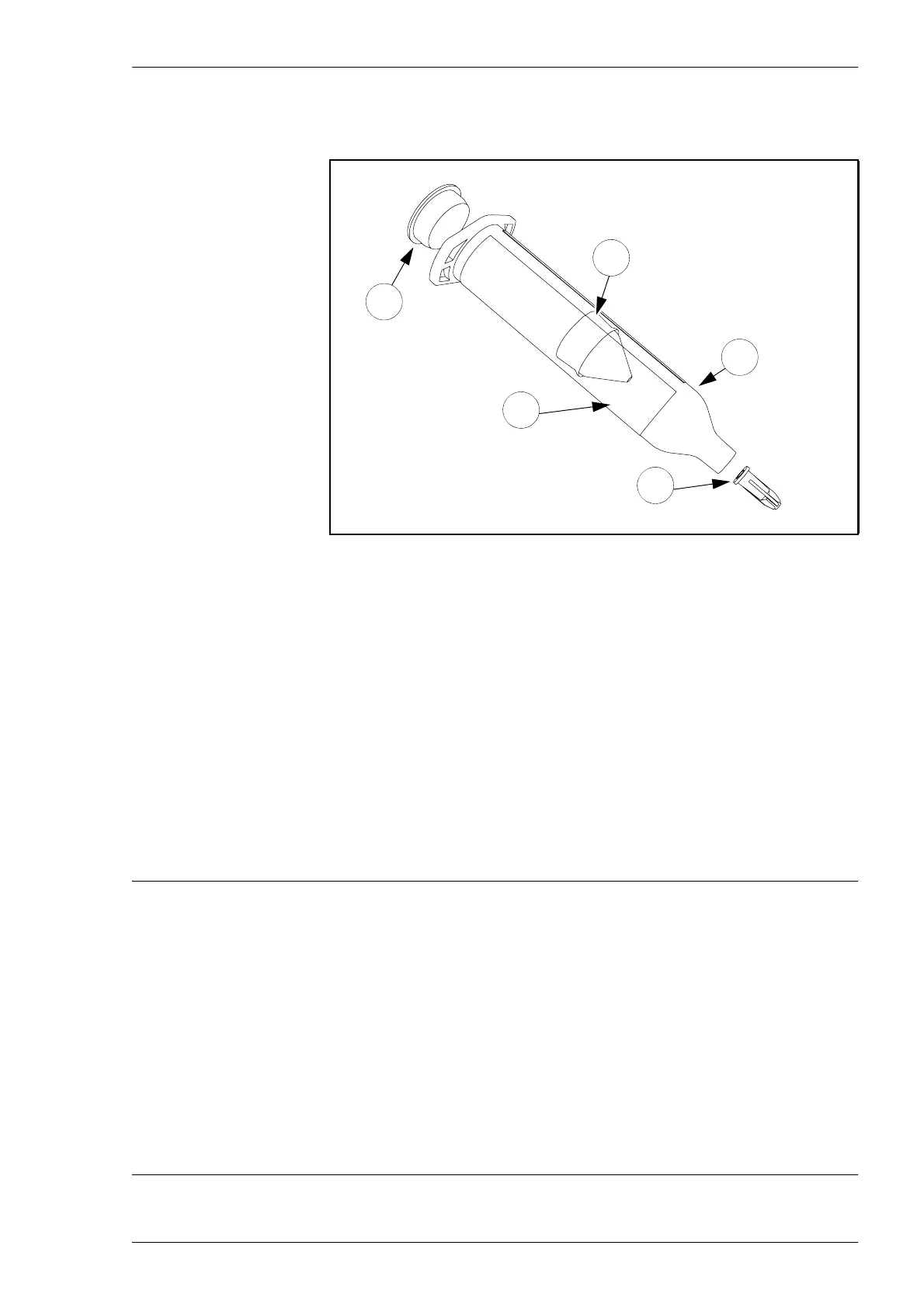

Figure 3-19. Solder paste cartridge.
1
2
3
5
4
