Crane lift
We recommend using four flat webbing slings to lift the MY500 JetPrinter
with a crane. They are slung around the leveling feet of the machine.
The slings must be able to carry 1.6 tons each when snared. This is indicated
on the label on the sling, see Figure 2-6.

The machine's center of gravity is located near the front. Therefore, the
hoisting cable should be slightly shorter at the front.
Put the slings around the leveling feet. There are no special lifting devices on
the feet such as hoisting lugs. Place a piece of cardboard, or a blanket, between
the machine's frame and the hoisting cables. This will protect it when the
hoisting cable is stretched.

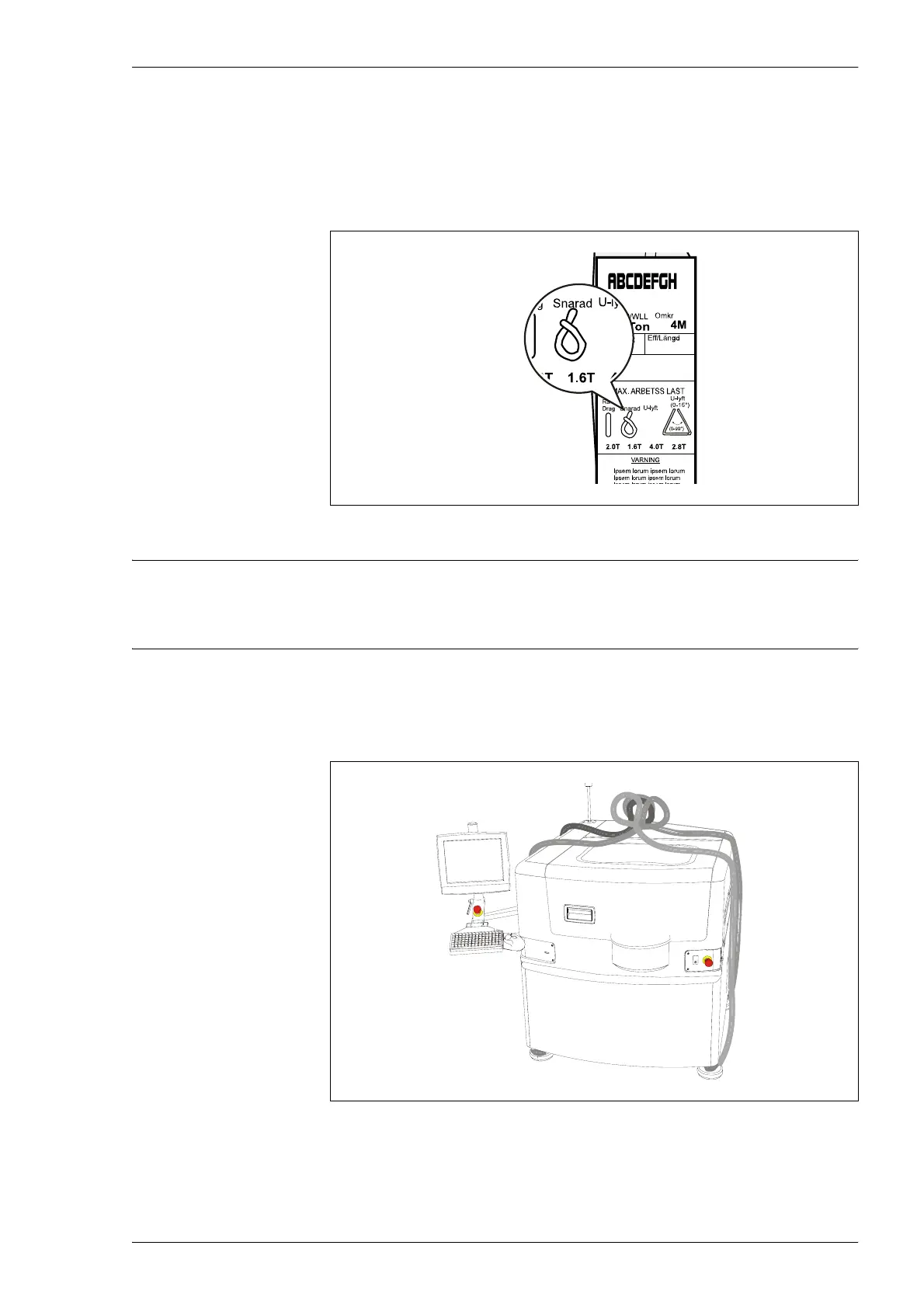

Figure 2-6. Webbing sling label.
Figure 2-7. Flat webbing slings.
