The holder assembly
The holder assembly is the carrier of the solder paste cartridge and the
interface between the machine and the cartridge. It carries the ejector assembly
and the motor unit.
The holder have the following main parts:
1. Shackle
2. End piece.
3. Holder
4. Circuit board socket.
5. Motor assembly.
6. Connection cover.
7. Circuit board.
8. Steer pins.

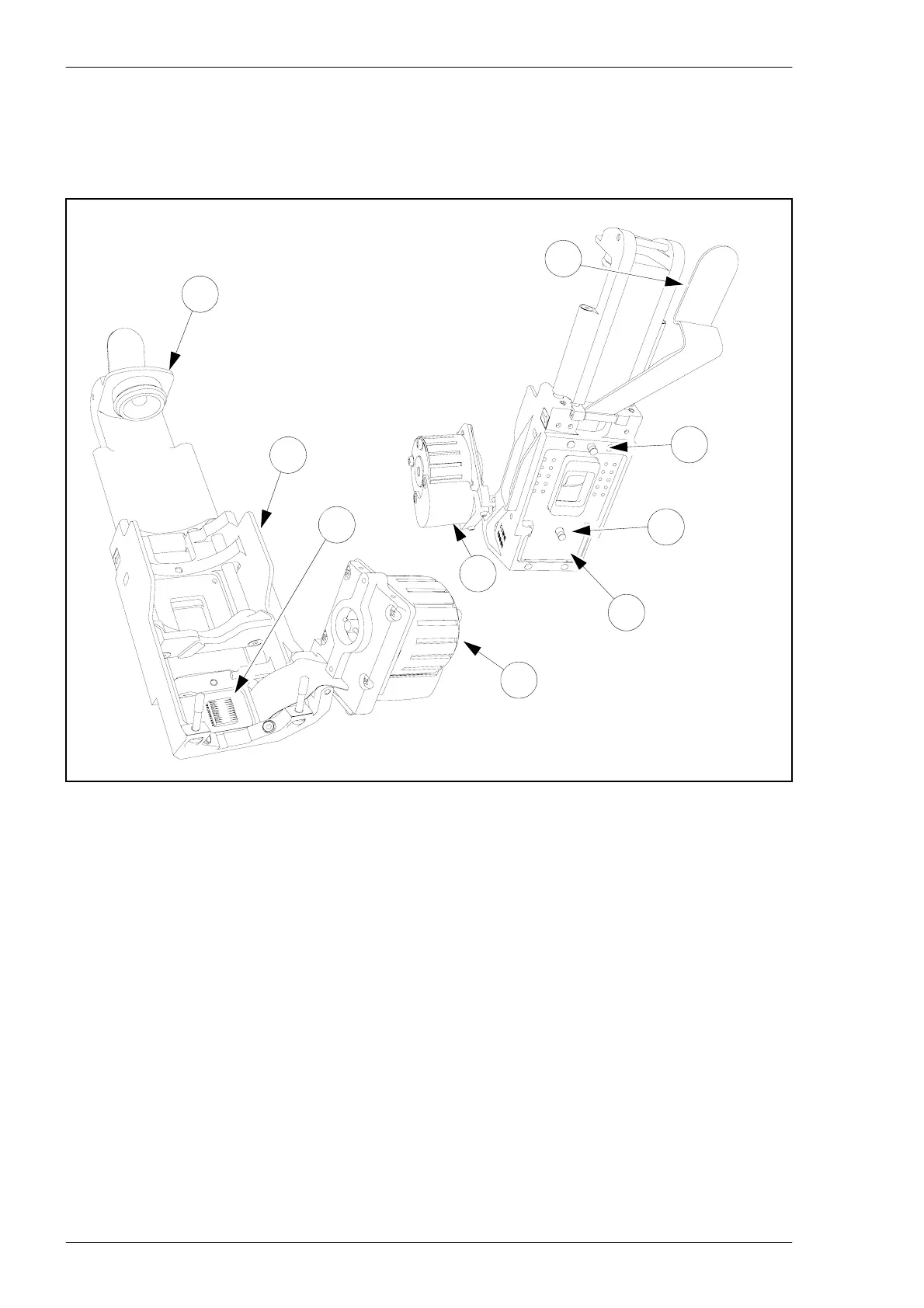

Figure 3-16. Holder.
1
2
3
8
8
5
6
7
4
