NCS Cirrus LT Plus - Docking Station Rear View; Docking Station Leds

13
Cirrus LT Plus User Manual v1.2 - Chapter 1

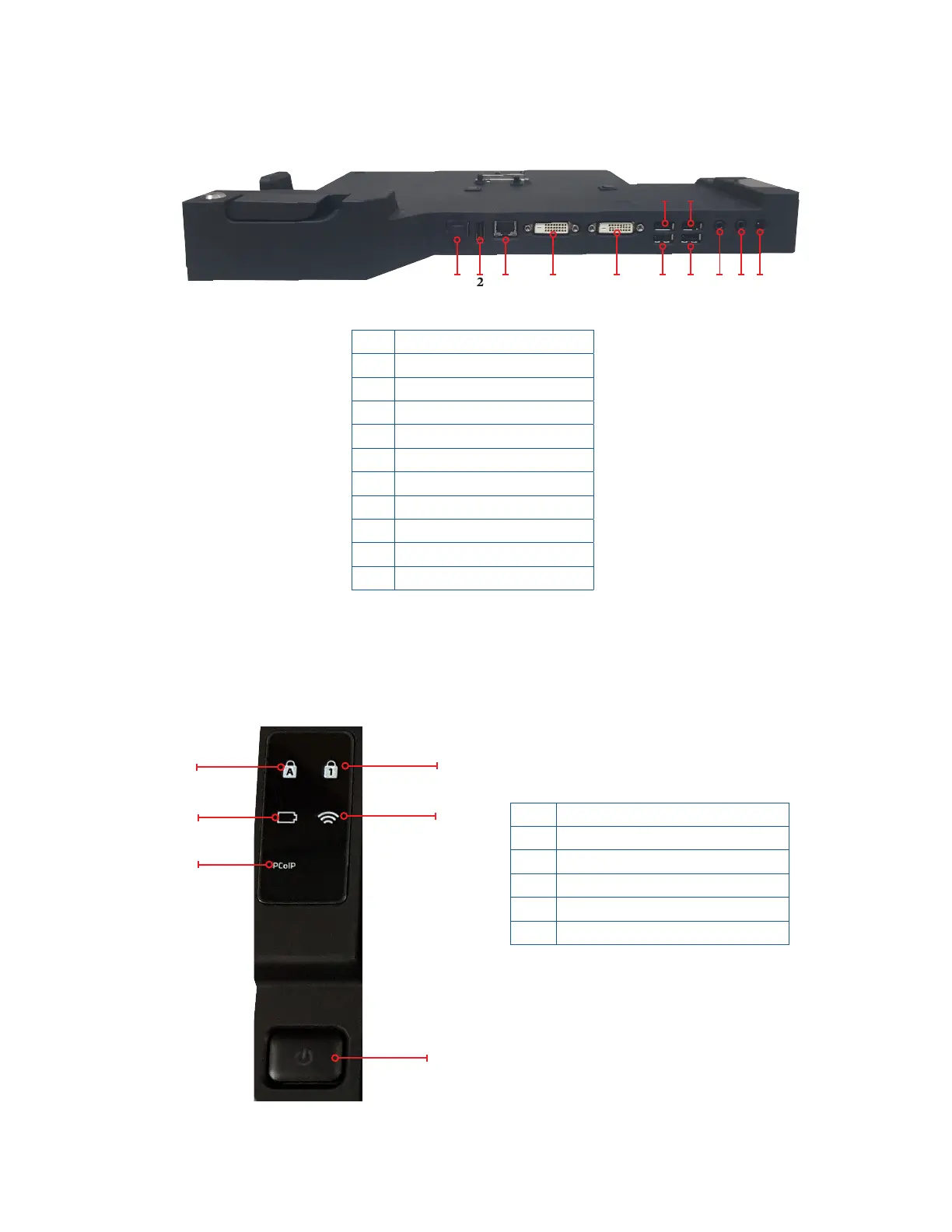

Docking station rear view
2
6
7
1
3 4
5 6 8 9 10 11
1 Fiber SFP port
2 Charging USB port
3 RJ-45 LAN jack
4 DVI-1 port
5 DVI-2 port
6 PCoIP USB 2.0 ports
7 Dedicated mouse USB port
8 Dedicated keyboard USB port
9 Speaker/line out
10 Microphone
11 DC-in jack
Docking station LEDs
2
3
1
4
5
6
1 CapsLock
2 Battery
3 PCoIP Session Status
4 NumLock
5 WiFi Status LED
6 Power/Connect Button
