MOUNTING LOCATION OF CIRCUIT CARDS
This section explains the location for mounting circuit cards for the CCIS.
Regular PIM
The figure below shows circuit card mounting slots allocated in the regular PIM.

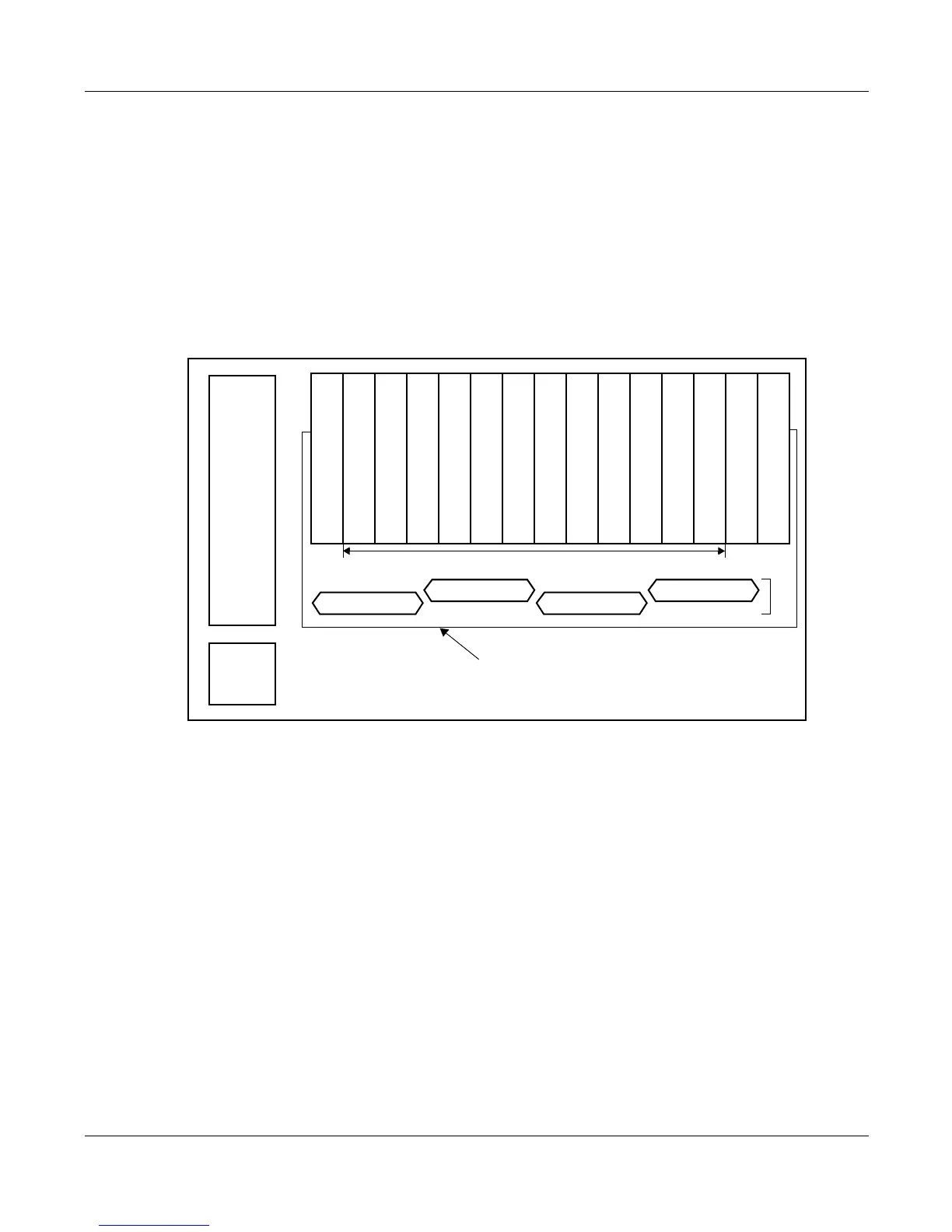

Circuit Card Mounting Slots (Regular PIM)
*1 The following application processor cards are mounted in the AP00-AP11 slots of PIM0-7.
PN-SC00 (CCH), PN-AP00-B (AP00), PN-24CCTA/PN-30CCTA/PN-DTA (CCT),
PN-24DTA-C (DTI), PN-30DTC-C (DTI)
PZ-M537 (EXPMEM) card is mounted on the PN-AP00-B (AP00) card.
*2 The following line/trunk cards are mounted in the LT00-LT11 slots of PIM0-7.
PN-M10 (M10), PN-2LDTA/PN-4LDTA (LDT), PN-2ODTA/PN-2ODTB (ODT)
*3 PZ-M542/PZ-M557 (CONN) card is mounted into the LTC0-LTC3 connectors on the PIM which
accommodates the 30DTI/30CCT card.
LT00-LT11 : Line/Trunk card mounting slots
AP00-AP11 : Application Processor card mounting
slots
MP12 : PN-CP24-A/PN-CP24-B/PN-CP24-C/
PN-CP24-D mounting slot
FP12 : PN-CP15 mounting slot
VM : PZ-VM00/VM00-M/VM10-M mounting slot
PFT : PZ-8PFTB mounting slot
AC/DC PWR: PZ-PW121/PW126 mounting slot
DC/DC PWR: PZ-PW122 mounting slot
LT09/AP09
LT08/AP08
LT07/AP07
LTC1
LTC0
LTC2
BWB
PIM
0-7
FRONT
AC/DC
PWR
LT10/AP10
LT00/AP00
LT01/AP01
LT02/AP02
LT03/AP03
LT04/AP04
LT05/AP05
LT06/AP06
LT11/AP11
MP12/FP12
LTC3
DC/DC
PWR
PFT
VM
*1
*3
*2
JULY/01/2006
