NEC NEAX 2000 IPS - PIM for Backup CPU System

CHAPTER 4 CIRCUIT CARD INFORMATION
– 354 – NWA-008853-001 Rev.3.0
97ch4001.fm
PIM for Backup CPU System

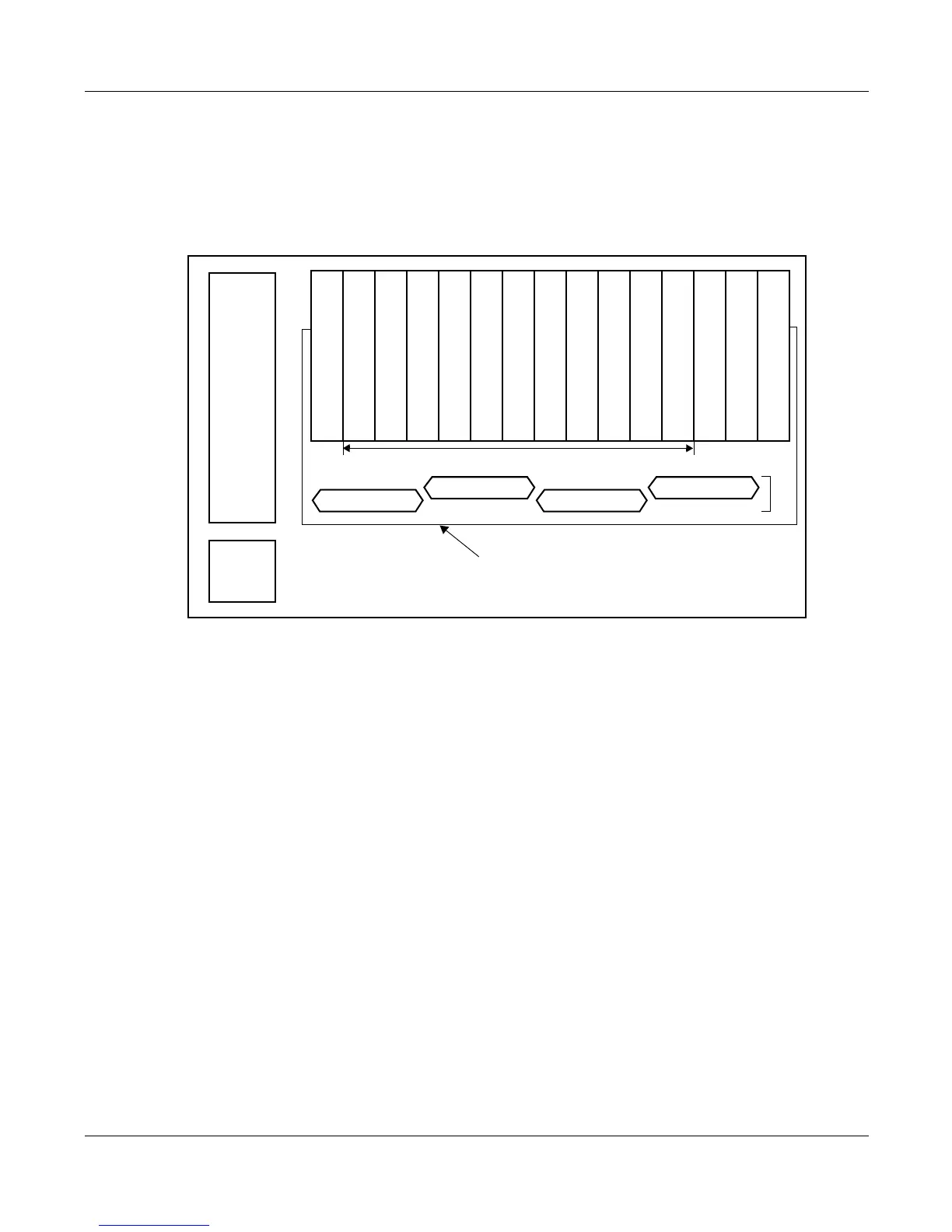

The figure below shows circuit card mounting slots allocated in the PIM for Backup CPU System.
Circuit Card Mounting Slots (Backup CPU)
*1 The following application processor cards are mounted in the AP00-AP10 slots of PIM0-7.
PN-SC00 (CCH), PN-AP00-B (AP00), PN-24CCTA/PN-30CCTA/PN-DTA (CCT),
PN-24DTA-C (DTI), PN-30DTC-C (DTI)
PZ-M537 (EXPMEM) card is mounted on the PN-AP00-B (AP00) card.
*2 The following line/trunk cards are mounted in the LT00-LT10 slots of PIM0-7.
PN-M10 (M10), PN-2LDTA/PN-4LDTA (LDT), PN-2ODTA/PN-2ODTB (ODT)
*3 PZ-M542/PZ-M557 (CONN) card is mounted into the LTC0-LTC3 connectors on the PIM which
accommodates the 30DTI/30CCT card.
LT00-LT10 : Line/Trunk card mounting slots
AP00-AP10 : Application Processor card
mounting slots
MP00/MP01 : PN-CP27-A/PN-CP27-B mounting slot
VM : PZ-VM00/VM00-M/VM10-M mounting slot
PFT : PZ-8PFTB mounting slot
AC/DC PWR: PZ-PW121/PW126 mounting slot
DC/DC PWR: PZ-PW122 mounting slot
LT09/AP09 LT08/AP08 LT07/AP07
LTC1
LTC0
LTC2
BWB
PIM0
(For
Backup
CPU)
FRONT
AC/DC
PWR
LT10/AP10
LT00/AP00
LT01/AP01 LT02/AP02 LT03/AP03 LT04/AP04 LT05/AP05 LT06/AP06 MP01 MP00
LTC3
DC/DC
PWR
PFT
VM
*1
*3
*2
JULY/01/2006
MOUNTING LOCATION OF CIRCUIT CARDS
