BUSY LAMP FIELD (BLF)-CCIS
General Description
This feature provides a busy status indication of the predetermined stations within the CCIS network. The
visual indication is provided with a red LED associated with each DSS key on the DSS/BLF Console and
D
term
. Pressing the DSS key allows a direct access to the preprogrammed station within the CCIS network.
Station Application
All D
term
s with DSS keys and the associated LEDs, and DSS/BLF Console
STATION
Office A
CCIS
2000 IPS
Office B
2000 IPS
CCIS
Office C
2000 IPS

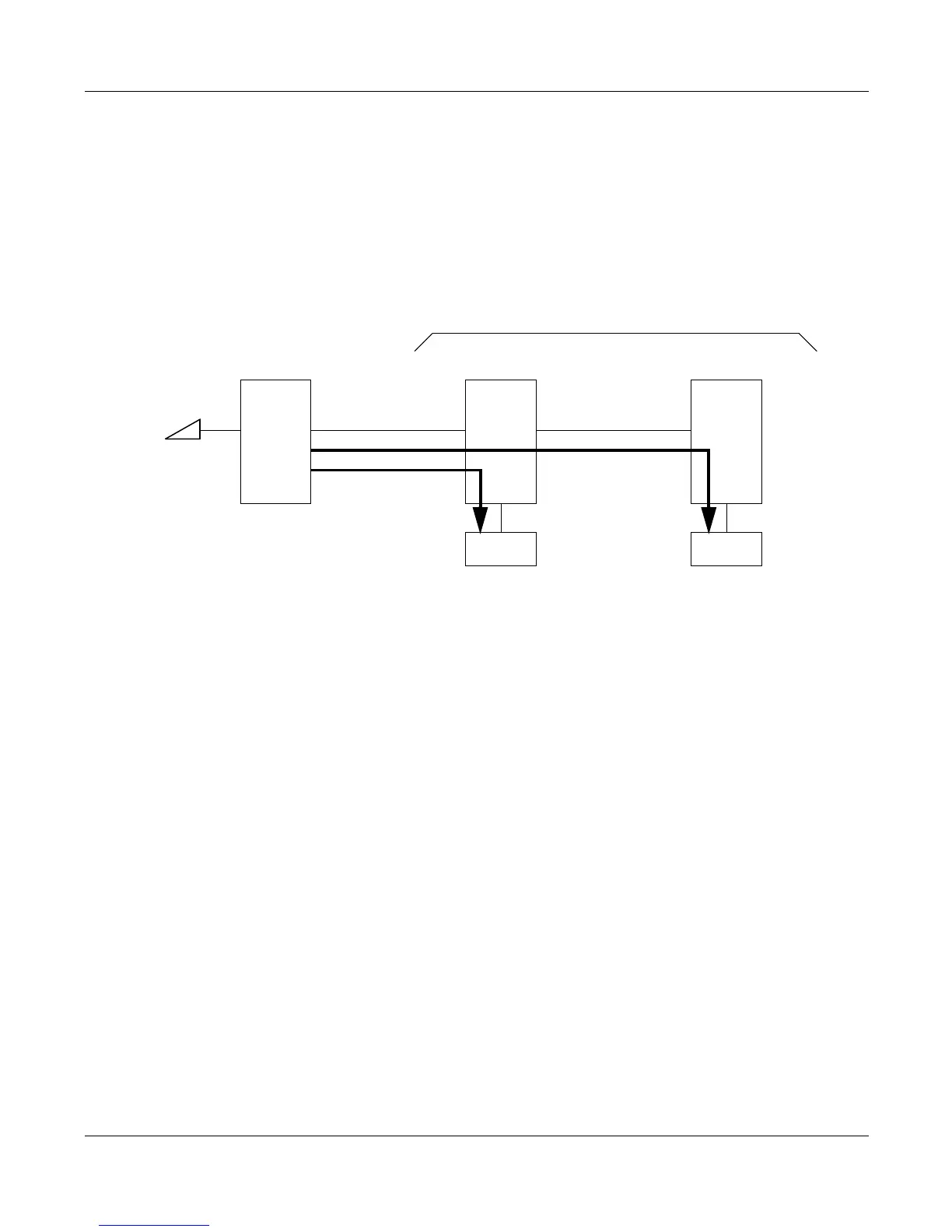

BLF Message
Sending Office
BLF Message
Receiving Office
Destination No. 1Destination No. 0
DSS Console
D
term
One Touch Key
(Busy state of Office
A station is indicated
on the BLF lamp.)
DSS Console
D
term
One Touch Key
(Busy state of Office
A station is indicated
on the BLF lamp.)
BLF Message
BLF Message
