CHAPTER 2 INSTALLATION
– 75 – NWA-008853-001 Rev.3.0
97ch2001.fm
Cable Connection via MDF
When using a twisted-pair cable, connect the cable to a CSU via the MDF as shown below.
• Location of AP Slots and LTC Connectors for DTI/CCT Page 76
• Example of MDF Cross Connection for DTI/CCT Page 77

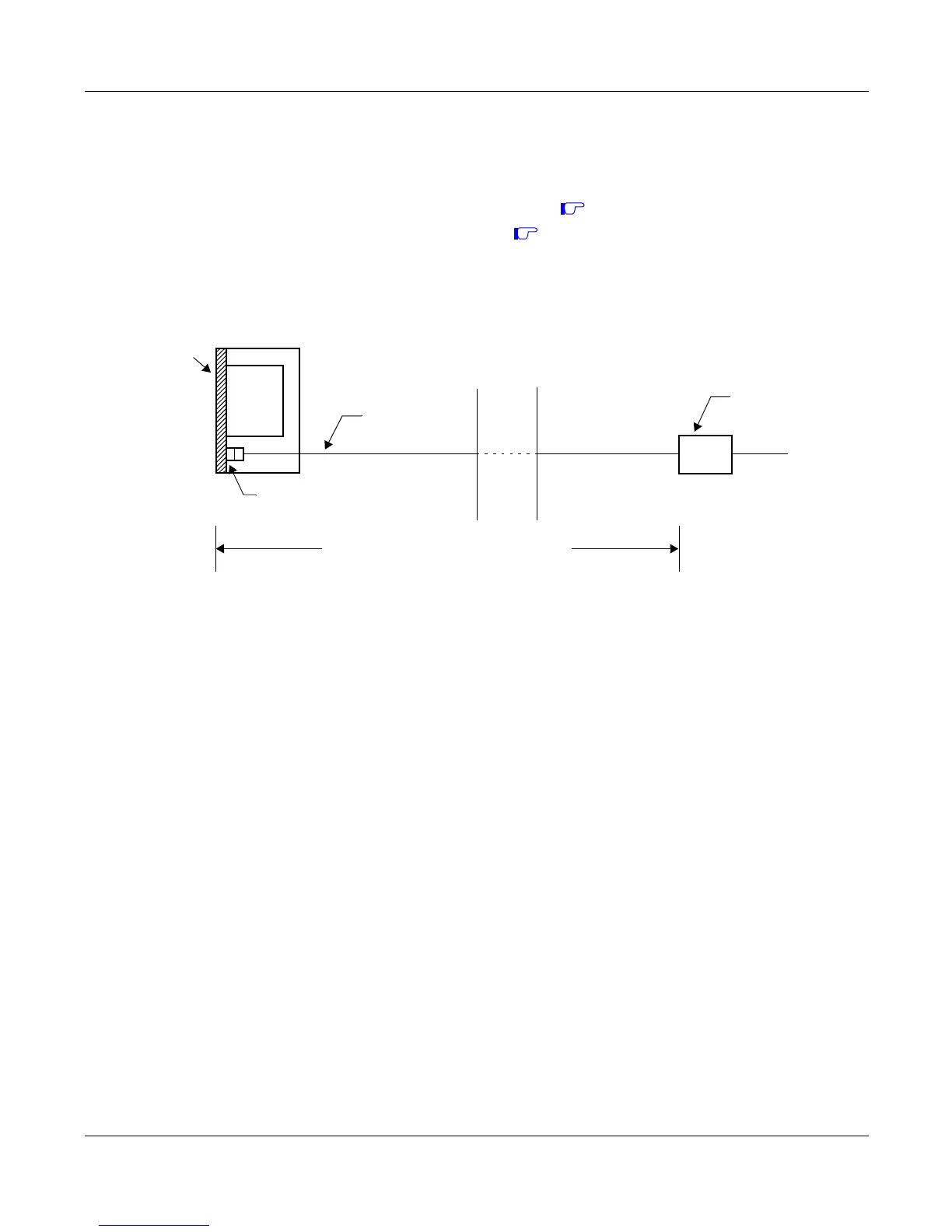

DTI/CCT Cable Connection via MDF
CSU
MDF
LTC0/LTC1/LTC2/LTC3 CONNECTOR
TWISTED-PAIR
CABLE
BWB
PBX
(SHIELD TYPE)
MAXIMUM 200 m (655 ft.) ....24DTI/CCT
MAXIMUM 400 m (1310 ft.) ...30DTI/CCT
DTI/CCT
INSTALLATION PROCEDURE FOR DIGITAL CCIS
To Next Page
