Determining Point Code
Point Codes are used to distinguish an originating office and destination office in the No. 7 CCIS network.
A Point Code is assigned in each office in the No. 7 CCIS network. The following considerations are re-
quired when deciding the Point Code.
(1) The same Point Code cannot be assigned to more than one office.
(2) A single Point Code must not be assigned to each CCIS channel in the same system. When a system
has two or more CCH, the same Point Code (originating) has to be assigned to all CCH in a system.
(3) The maximum number of Point Codes is 256. (Only 256 offices can be connected in the same
network.)

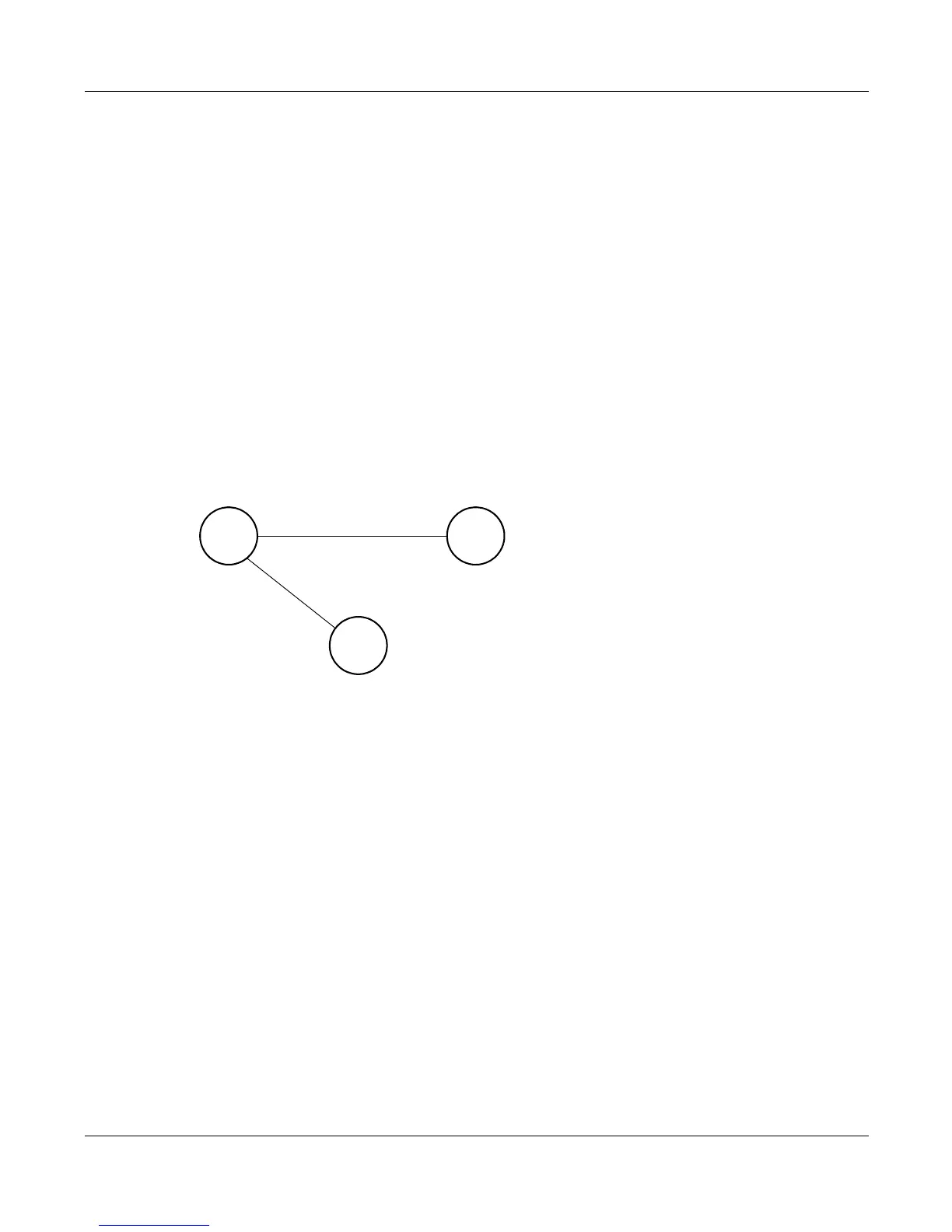

Example: Point Code Assignment
PC: 00001
CCH0
A
PC: 00002
B
PC: 00003
C
CCH1
CCH1
CCH0
A/B/C: Office (PBX)
CCH : Common Channel Handler
PC : Point Code
NETWORK STRUCTURE CONSIDERATIONS
