NEC NEAX 2000 IPS - CCH Assignment

CHAPTER 3 SYSTEM DATA PROGRAMMING
– 103 – NWA-008853-001 Rev.3.0
97ch3001.fm
CCH Assignment
DESCRIPTION DATA
Assign an AP number to the CCH or CCT card.
The AP number must match the switch settings
on the CCH or CCT card.
•
(1)
(2)
Y=0
04-15, 20-31: AP No.
11: CCH/CCT card
Assign a CCH number to each CCH or CCT
card.
•
(1)
(2)
Y=07
0-7: CCH No.
04-15, 20-31: AP No. of the CCH/CCT
card assigned by CM05 Y=0
Assign a CCH number to each common signal-
ing channel and voice channel route.
•
(1)
(2)
Y=91
00-63: Trunk Route No.
0-7: CCH No.
Assign a Circuit Identification Code (CIC) to
each trunk number used for voice channel.
NOTE: The Circuit Identification Code
(CIC) represents a circuit number to
designate a trunk (of each trunk
route) used as a voice channel in the
No. 7 CCIS network. A CIC should
not be assigned to a trunk used as a
Common Signaling Channel.
•
(1)
(2)
Y=35
000-254: Trunk No.
001-127: CIC
Assign the trunk number to be used as the com-
mon signaling channel.
•
(1)
(2)
Y=00
0-7: CCH No.
000-254: Trunk No. assigned by CM07
Y=01
Assign an Originating Point Code (OPC) to
each CCH number.
NOTE: The Originating Point Code is used
to designate an originating office in
the No. 7 CCIS network. A single
OPC should be assigned to all CCH
numbers provided in the same sys-
tem.
•
(1)
(2)
Y=01
0-7: CCH No.
00001-16367: Originating Point Code

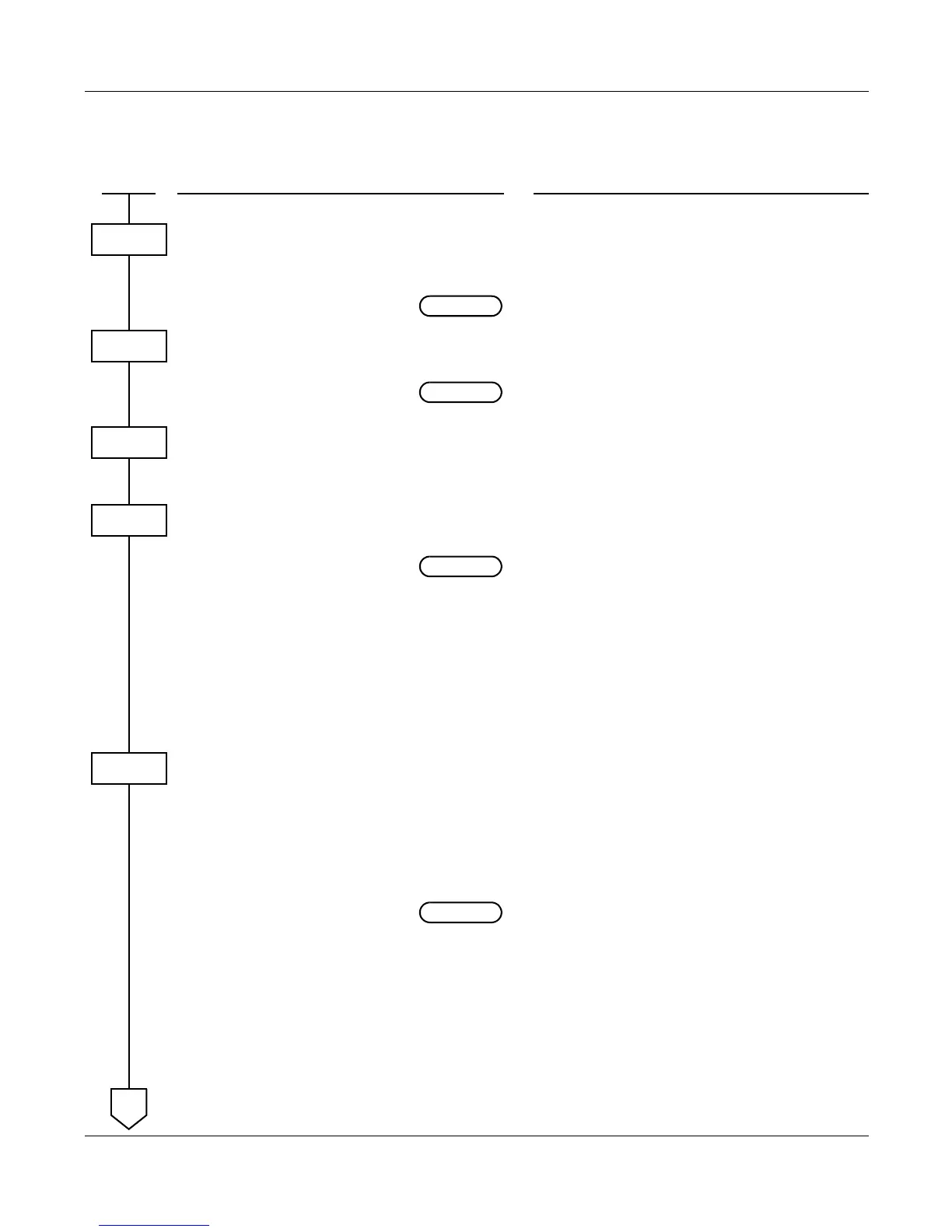

START
CM05
INITIAL
CM06
INITIAL
CM35
CM30
INITIAL
CMA7
INITIAL
A
JANUARY/31/2006
DIGITAL CCIS PROGRAMMING
