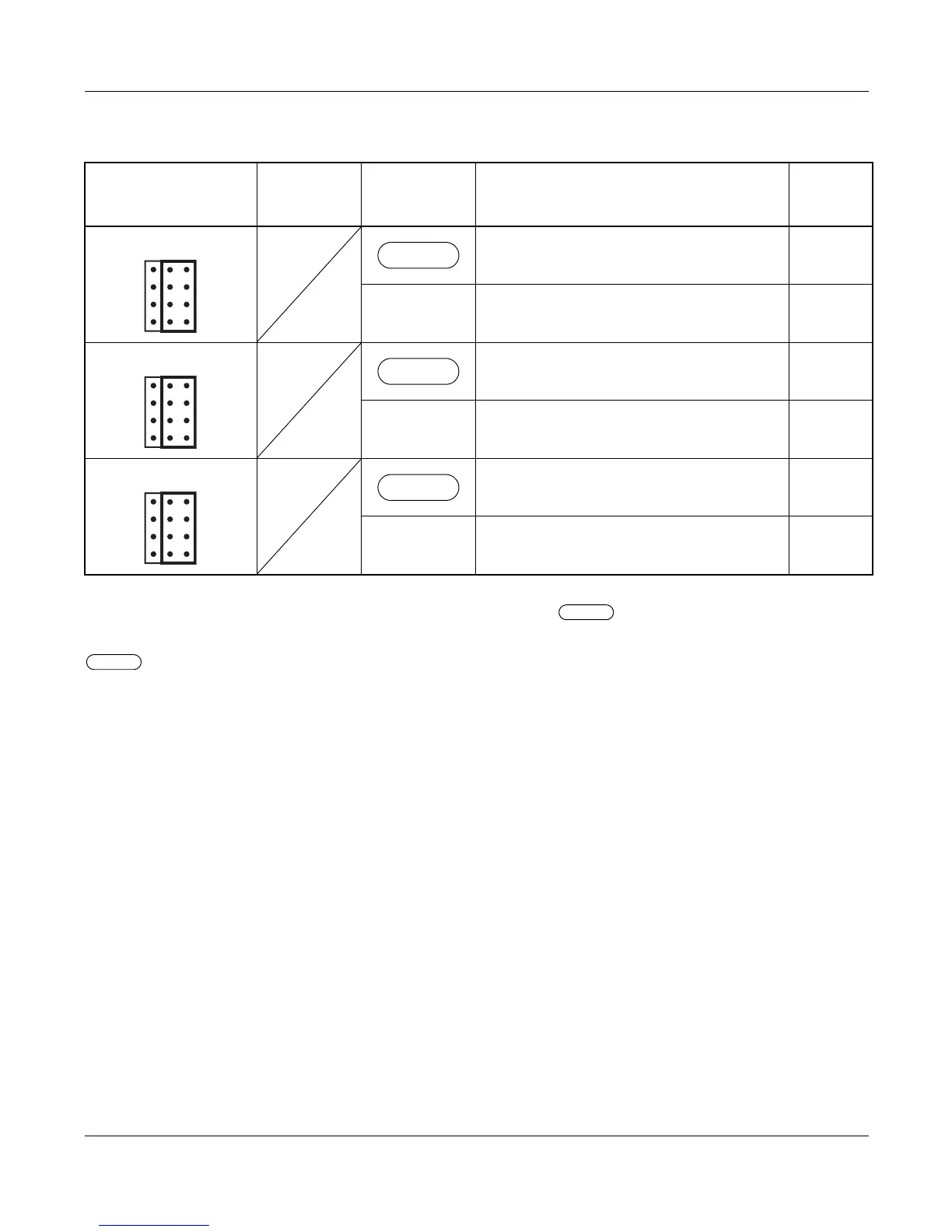

Switch Settings
The figure in the SWITCH NAME column and the position of in the SETTING POSITION col-
umn indicate the standard setting of the switch. When the switch is not set as shown by the figure and
, the setting of the switch varies with the system concerned.
SWITCH NAME
SWITCH
NUMBER
SETTING
POSITION
FUNCTION CHECK
JP0 For coaxial connectors
(No.0 circuit)
LEFT
For champ connector
(LT connector) (No.0 circuit)
JP1 For coaxial connectors
(No.1 circuit)
LEFT
For champ connector
(LT connector) (No.1 circuit)
JP2 For coaxial connectors
(No.2 circuit)
LEFT
For champ connector
(LT connector) (No.2 circuit)
RIGHT
RIGHT
RIGHT
PZ-M542 (CONN)
