(2) When using a coaxial cable:
This figure shows an example of the cable connection when the 30DTI/30CCT cards are mounted in
the AP07 and AP08 slot of PIM0.

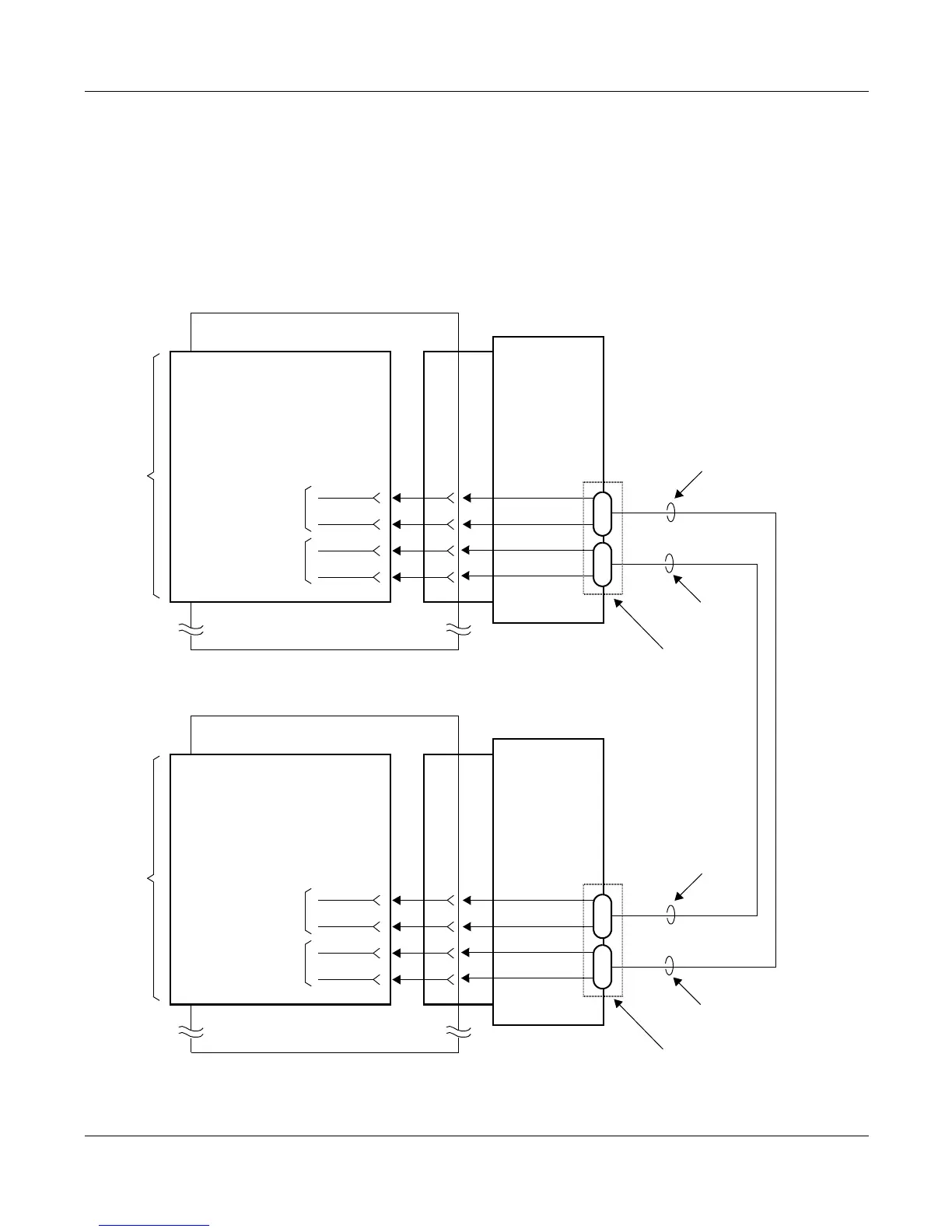

Loopback Test Connection for Coaxial Cable
9
34
10
35
9
34
10
35
RA
RB
TA
TB
PIM0
30DTI/30CCT
RCV
TRS
JP
CONN CARD
LTC2
AP07
17
42
18
43
17
42
18
43
RA
RB
TA
TB
PIM0
30DTI/30CCT
RCV
TRS
JP
CONN CARD
LTC2
AP08
COAXIAL
CONNECTOR
COAXIAL
CONNECTOR
LOOPBACK
LOOPBACK TEST
