CHAPTER 1 GENERAL INFORMATION
– 32 – NWA-008853-001 Rev.3.0
97ch1001.fm
(2) 24-Multi Frame (Extended Super Frame <ESF>)
This frame has 24-Multi Frames and each Multi frame has a 24-Channel PCM signal (8 bits/channel)
and an S bit (Super Frame Bit). This figure shows the frame configuration, and table on next page
shows frame bit assignment.

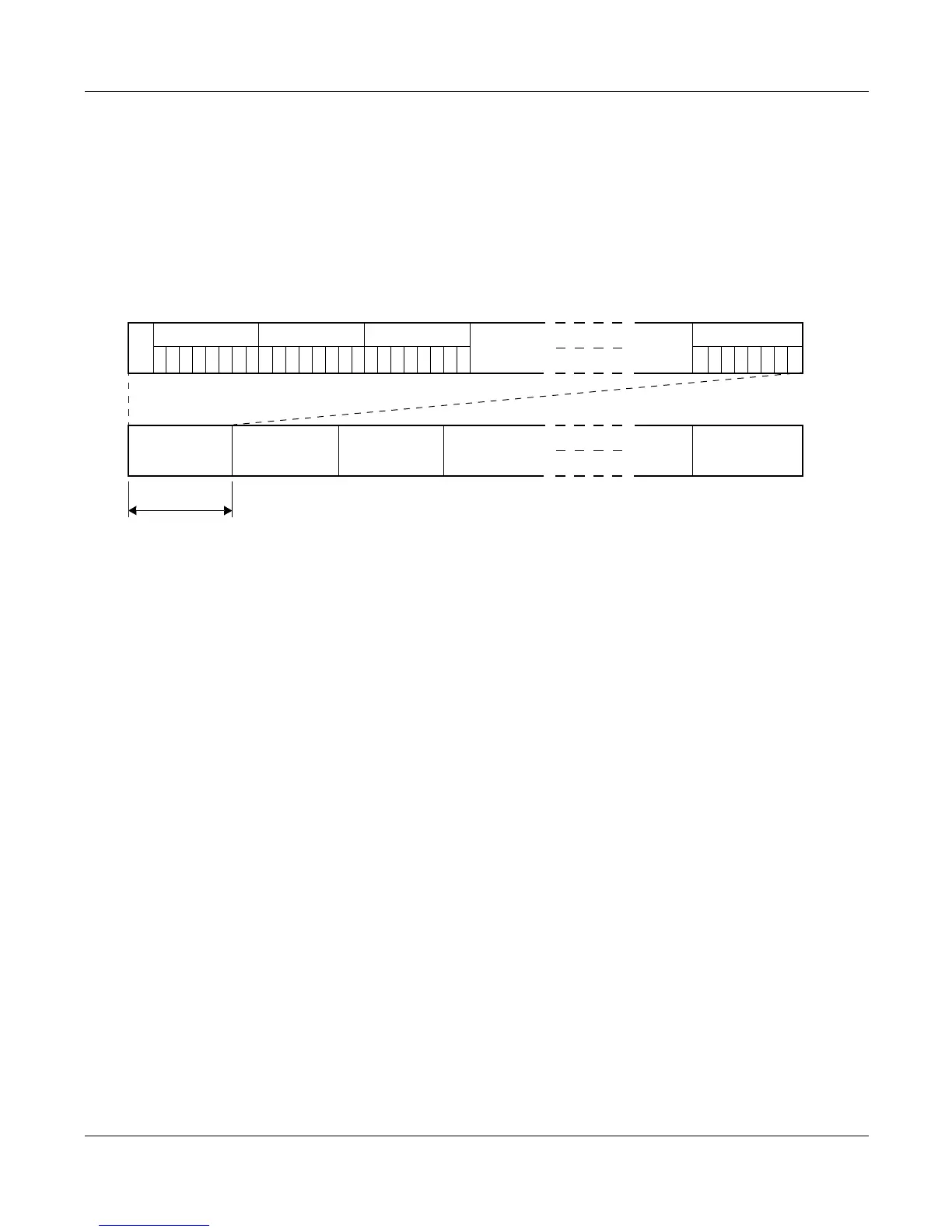

Frame Configuration of 24DTI (24-Multi Frame)
S
CH1
1234567812345678
CH2
12345678
CH3
12345678
CH24
FRAME 1 FRAME 2 FRAME 3 FRAME 24
125 µs
S: Superframe Bit
DTI SPECIFICATIONS
