3.3 Input and output terminals

FRA5087

3-18

  24 V power supply output (AUX)

There is an electrical power supply outlet that supplies electrical power to the signal injector probe

5055 (separately sold).

This power outlet has the maximum current capacity of 100 mA. Connect to the outlet the cable

that is attached to the signal injector probe 5055.

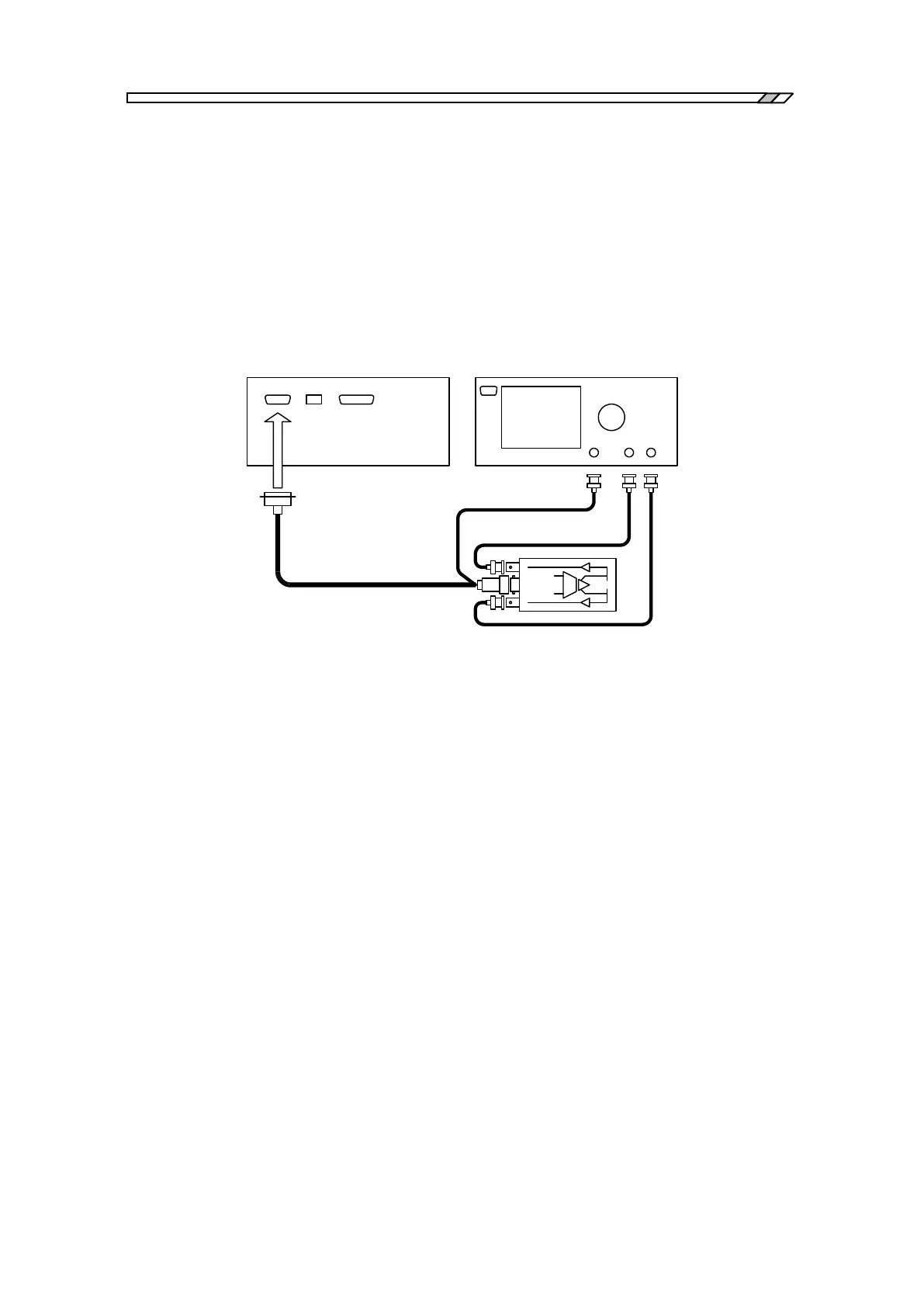

The figure below shows an example of the connection of the signal injector 5055 to the

instrument.

For further information on operational methods of the 5055, refer to the 5055 Instruction Manual.

FRA 5087 rear side FRA 5087 front side

OSC CH1 CH2

Signal injector probe 5055

(sold separately)

Accessory to the 5055

AUX GPIBUSB
