Nikon DTM-330 - Assembling the Prism Reflector

2-11
2
PREPARATION
2-7 Assembling the Prism Reflector

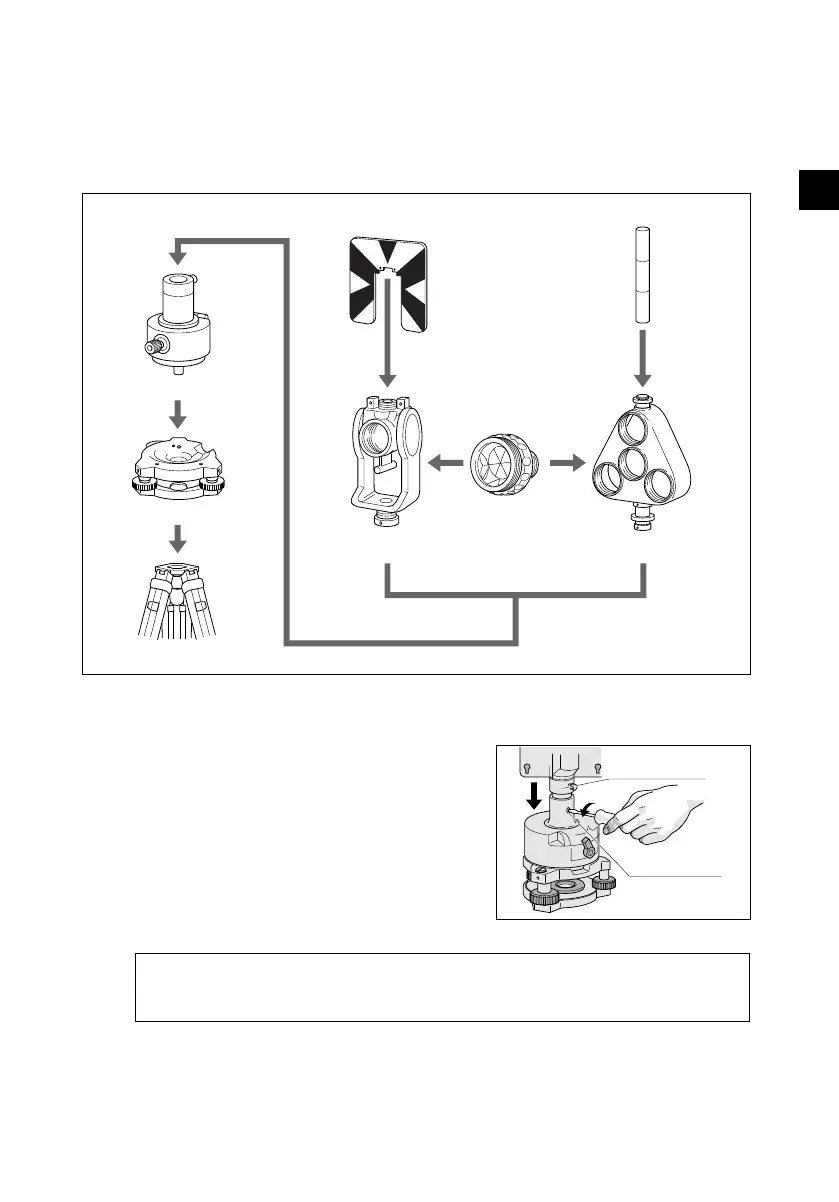

Assemble the prism reflector referring to the Figure below.
Height Adjustment of Tribrach Adapter
Tribrach adapter can be adjusted to two heights
by sliding up and down the prism holder mount.
To change the height, first remove the height
adjustment screw from the tribrach adapter. Slide
the prism holder mount to align the height
adjustment screw holes and screw in the
adjustment screw again.
y When using the DTM-350/330, set the prism holder mount to the
lower position.
Target plate for single prism
Target pole
Triple prism holder
Tiltable single
prism holder
Tribrach adapter
Leveling base W10
Tripod
Prism
Prism holder mount
Height adjustment
screw
)
