Nikon DTM-330 - Ang-Dist (HD-HA); S-O 9 ○ Yz; Staking out

3-49
3
S-O
Staking out
Press the [S-O] key to display the stakeout
menu screen*. Select the desired function
using the numeric keys.

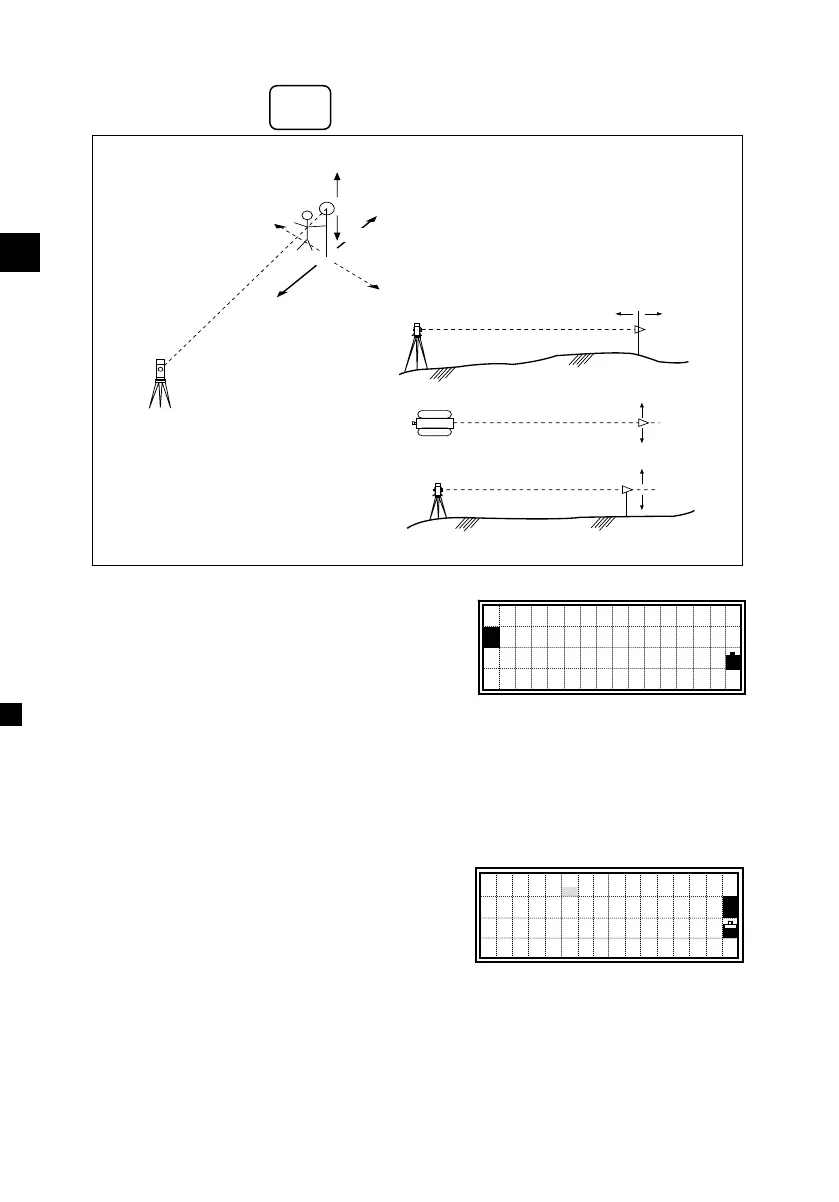

1:Ang-Dist (HD-HA)
Specifying the stakeout point position by Angle and Distance
Press the [1] key to display the screen for
inputting distance and angle to the target.
Input them and press the [ENT] key.
HD: Horizontal distance from station point to stake-out point
dVD: Vertical distance from station point to stake-out point
HA: Azimuth to stake-out point
ＨＤ： ０．００００ ｍ
ｄＶＤ： ｍ
ＨＡ：
Ｓ－Ｏ
１
Ｓｔａｋｅｏｕｔ
１：ＨＤ－ＨＡ ４：Ｖ－Ｐｌｎ
２：ＸＹＺ ５：Ｓ－Ｐｌｎ
３：２ＲＥＦ ６：Ａｒｃ
１
FILL
FILL
CUT
CUT
OUT
OUT
IN
IN
R
R
L
L
Height
of target
