Synchronization output ports
86
Example
synchronization
circuit
As an example, the Analog output pulse signal could be used to synchronize
emission with a subject under study using a sampling sensor. A general diagram
of a synchronization circuit is shown in Figure 56.
Figure 56 Example Pulse Circuit
Synchronization signaling - single pulse vs. burst mode

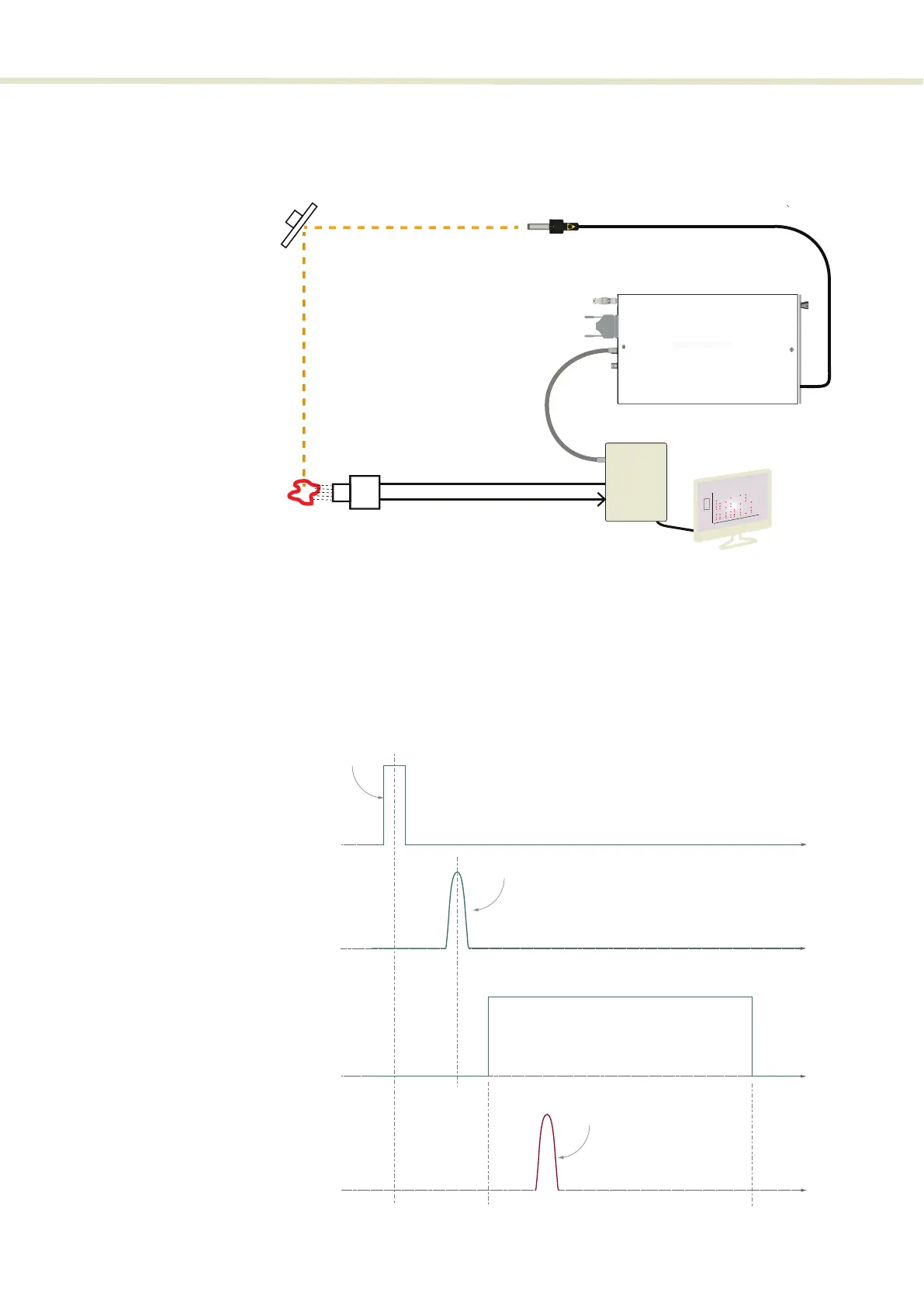

Figures 57 and 58 demonstrate how a subject can be imaged when illuminated
with either a single pulse or a burst of pulses. In each case, a camera shutter is
synchronized to triggers from the Analog pulse output that is driven by the COAX
trig input signal initiating emission. Subsequent to the Analog pulse output
trigger, the shutter opens, and the camera captures the subject image.
Figure 57 Synchronization with single pulse illumination
Sensor
Sensor Control
Sensor Output
Analog pulse
(RG223 Cable)
Subject Target
Emission pulses
Synchronizer
Legend
Item 1
Item 2
Item 3
Item 4
Item 5
Item 6
SuperK COMPACT
Analog output pulse
COAX trig input
Optical ouput
Trigger onset
Optical pulse out
time
Analog pulse output
time
Closed
Open
Camera shutter position
Analog trigger out
Trigger optical pulse generation and analog trigger out pulse.
Analog pulse out triggers camera shutter to open.
Shutter opens capturing subject illuminated by a single
emitted optical pulse
time
time
