G Collimator Output Beam Properties

Beam parameter definitions

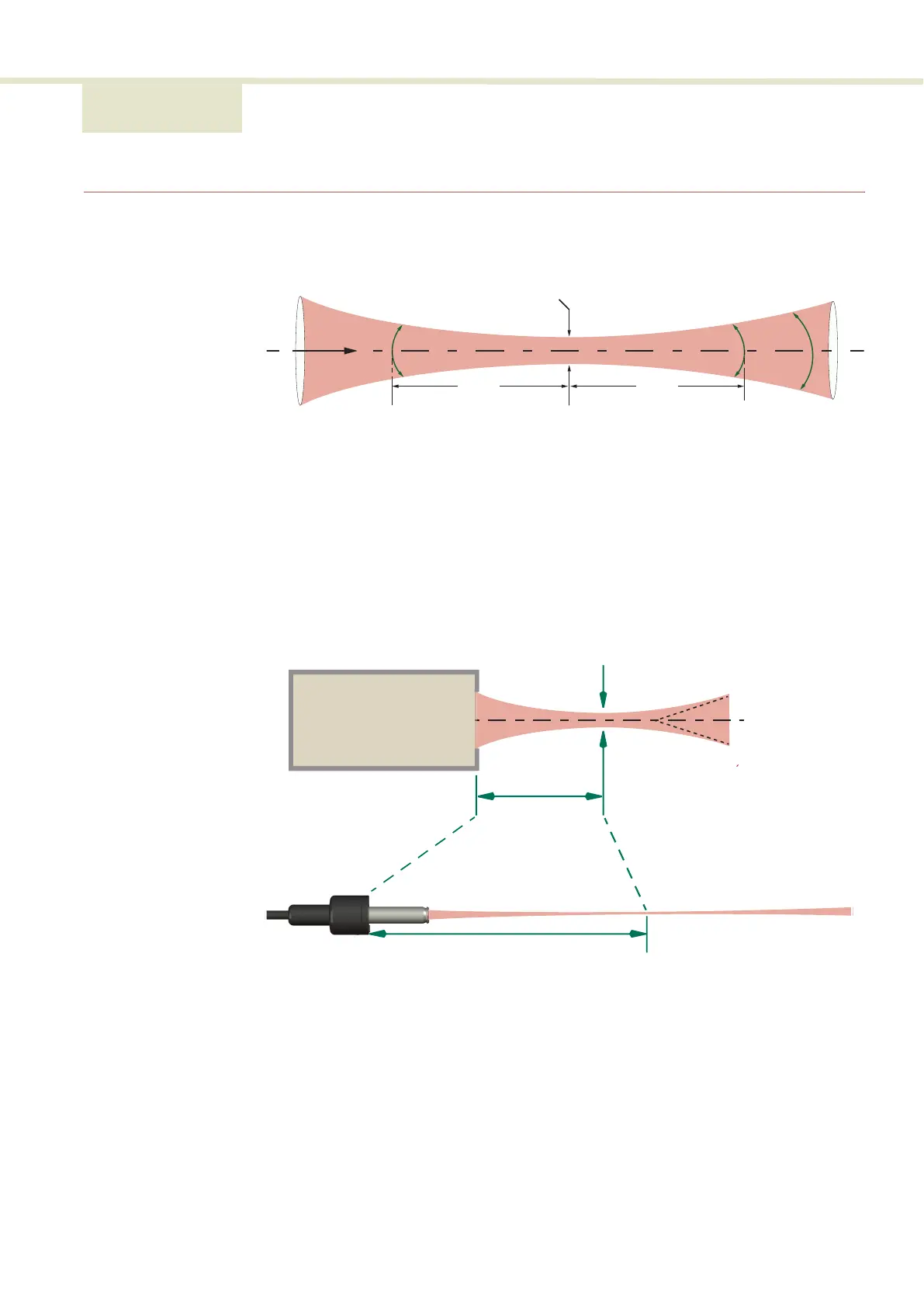

Figure 71 Beam parameters

Definitions: W

: Beam Diameter at waist location

: Full angle divergence after waist

: Rayleigh length

Waist location Figure 72 Beam waist location

W01

ZR1

θ1

Laser output

Waist width

Waist location

Divergence

Collimator waist location Z

General

definition
